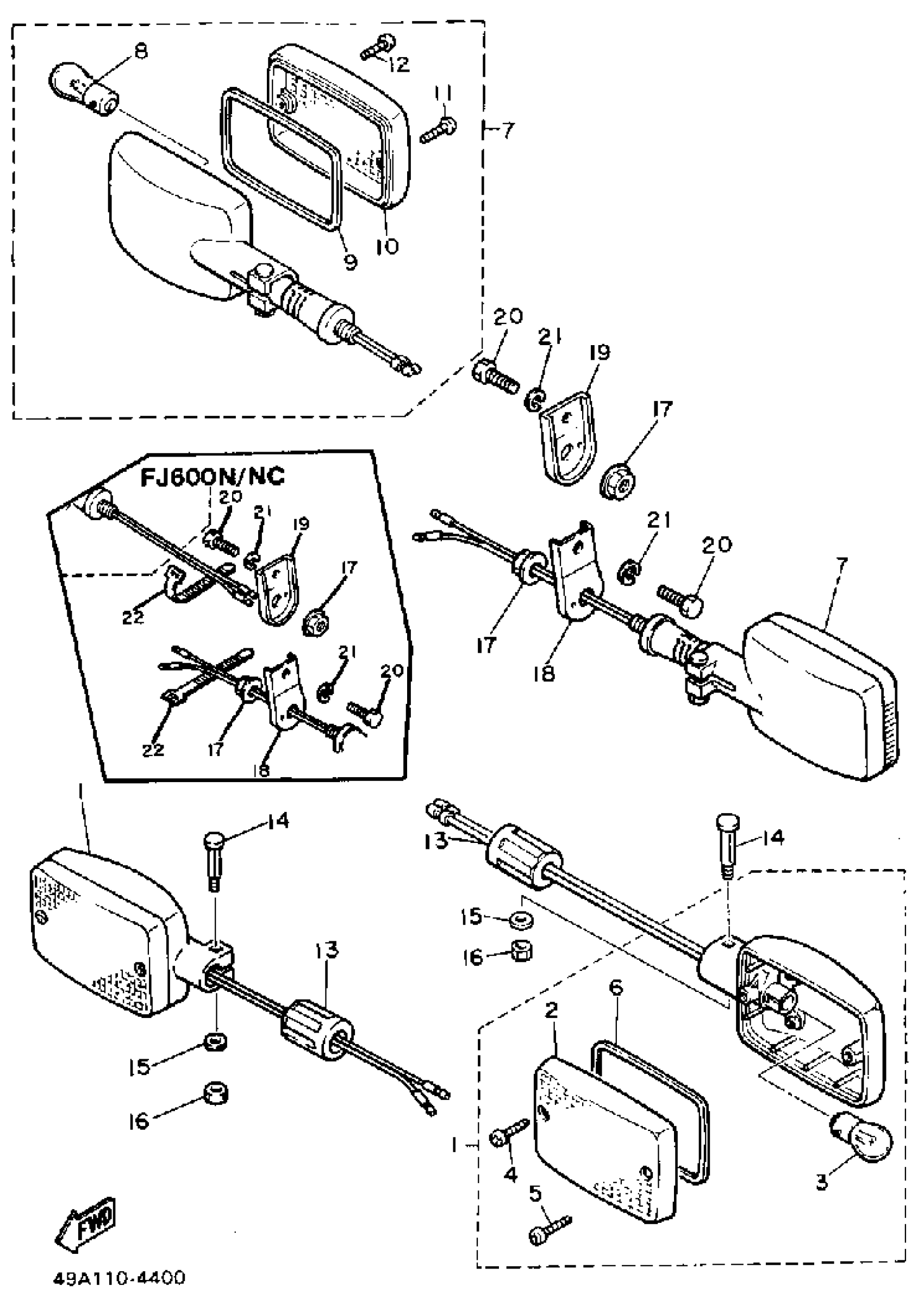

Yamaha FJ600LC (FJ600 CA) 1984 TURNSIGNAL Diagram

#

Description
Price

1

FRONT FLASHER LIGHT ASS''Y (11H-83301-70)

5G2-83310-70-00

Unavailable

2

LENS, FLASHER

5G2-83312-00-00

$15.49

3

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

4

SCREW, PAN HEAD

98507-04018-00

$2.19

5

SCREW, TAPPING (FJ1)

97780-40535-00

Unavailable

6

. GASKET, FLASHER LENS

5G2-83313-00-00

Unavailable

7

RFLSHR LITE ASY

11H-83330-70-00

Unavailable

8

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

9

. GASKET, FLASHER LENS

5G2-83313-00-00

Unavailable

10

LENS, FLASHER

5G2-83312-00-00

$15.49

11

SCREW, PAN HEAD(GA5)

98580-04014-00

$4.51

12

SCREW, TAPPING (FJ1)

97780-40535-00

Unavailable

13

DAMPER, FLASHER 1

4L0-83321-00-00

$23.99

14

BOLT, flasher 1

5G2-83317-00-00

Unavailable

15

WASHER(1RW)

92907-05600-00

$3.78

16

NUT, HEXAGON

95317-05600-00

Unavailable

17

NUT(3GG)

90179-12588-00

Unavailable

18

STAY, FLASHER

49A-83368-00-00

Unavailable

19

STAY, FLASHER

49A-83369-00-00

Unavailable

20

BOLT, HEXAGON

97017-08016-00

Unavailable

21

WASHER(JN5)

92907-08100-00

Unavailable

22

BAND, SWITCH CORD

437-83936-01-00

Unavailable
