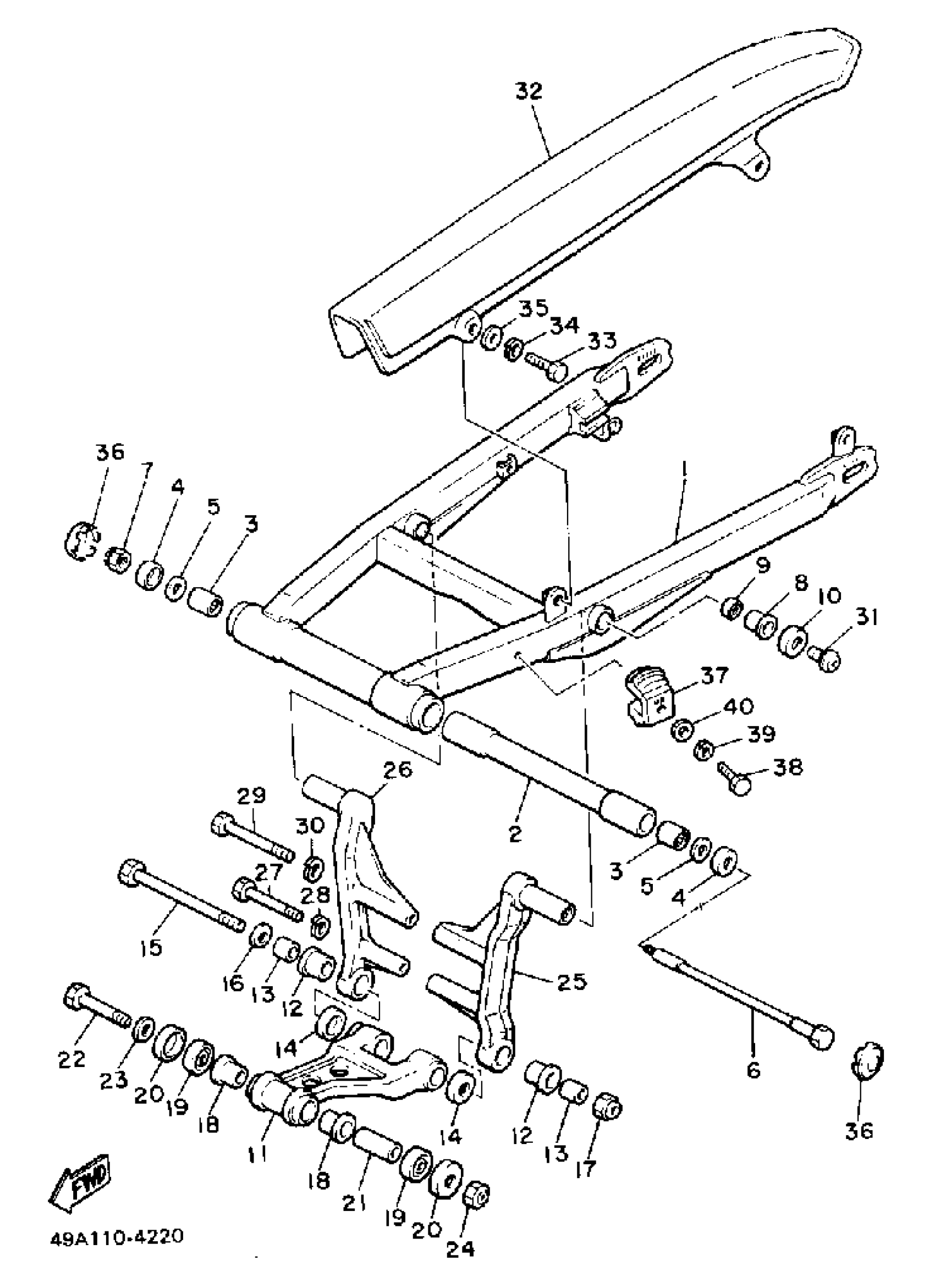

Yamaha FJ600LC (FJ600 CA) 1984 SWING ARM Diagram

#

Description
Price

1

REAR ARM

(33M-22110-00-35)

Unavailable

2

BUSH

33M-22184-00-00

Unavailable

3

BEARING (4X7)

93320-32403-00

$46.99

4

COVER, THRUST 2

4X7-22129-00-00

$22.99

5

WASHER

3YF-22149-00-00

$8.99

5

WASHER, PLATE(2VM)

90201-247L2-00

$10.49

5

WASHER, PLATE

90201-245A0-00

Unavailable

6

SHAFT, PIVOT

(33M-22141-00-00)

Unavailable

7

NUT, SELF-LOCKING (1J7)

90185-14070-00

$13.49

8

BUSH, SPEC''L NYLON

(90386-18135-00)

Unavailable

9

OIL SEAL (2J5)

93109-18020-00

$13.49

10

COVER, THRUST 1

33M-22128-00-00

Unavailable

11

ARM, RELAY

33M-2217A-01-00

Unavailable

12

BUSH (29L)

90386-18118-00

$8.49

13

COLLAR(1FN)

90387-123M4-00

Unavailable

14

COVER, THRUST 2

26H-22129-00-00

Unavailable

15

BOLT

(90101-12591-00)

Unavailable

16

WASHER (492)

90201-12535-00

Unavailable

17

NUT, U (4PM)

95617-12100-00

Unavailable

18

BUSH(29K)

90386-20134-00

Unavailable

19

OIL SEAL

93109-20076-00

Unavailable

20

COVER, thrust 1

26H-22128-00-00

Unavailable

21

COLLAR

90387-144H4-00

Unavailable

22

BOLT

90101-14585-00

Unavailable

23

WASHER

92990-14600-00

Unavailable

24

NUT, U(4JT)

95617-14100-00

Unavailable

25

ARM 1 (33M-22173-00-35)

33M-2217M-02-00

Unavailable

26

ARM 2 (33M-2217N-00-35)

33M-2217N-02-00

Unavailable

27

BOLT,HEXAGON

97027-08080-00

Unavailable

28

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

29

BOLT (97321-08090)

97023-08090-00

Unavailable

30

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

31

BOLT

90109-10762-00

Unavailable

32

CASE, CHAIN

33M-22311-01-00

Unavailable

33

BOLT, HEXAGON

97017-06016-00

Unavailable

34

WASHER, SPRING

92907-06100-00

Unavailable

35

WASHER, PLATE (4L0)

90201-062A8-00

Unavailable

36

COVER

33M-2219X-00-00

Unavailable

37

SEAL, GUARD

33M-22151-00-00

Unavailable

38

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

39

WASHER, SPRING

92995-06100-00

Unavailable

40

WASHER, PLATE

90201-06380-00

Unavailable
