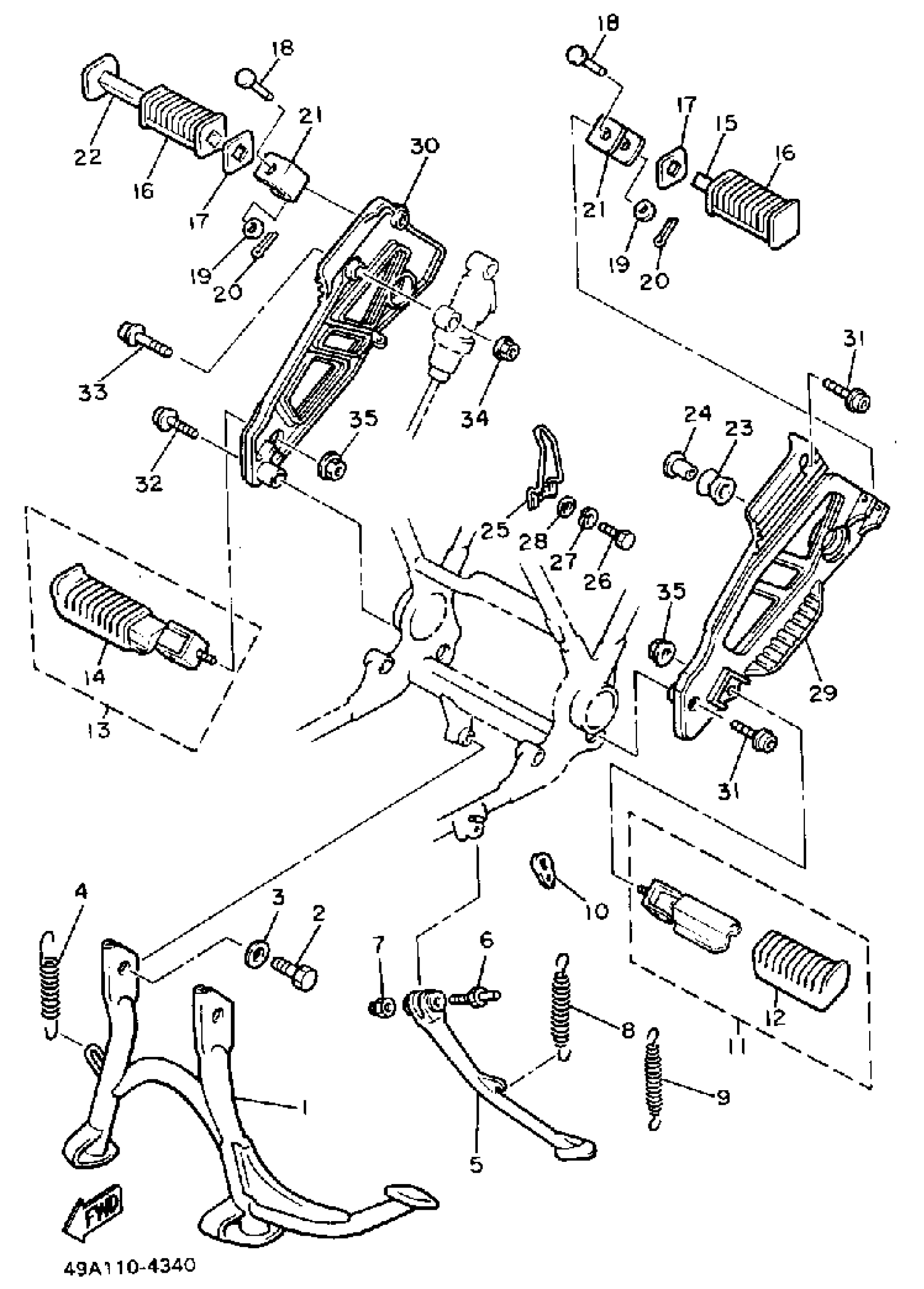

Yamaha FJ600LC (FJ600 CA) 1984 STAND FOOTREST Diagram

#

Description
Price

1

STAND, MAIN

33M-27111-00-R4

Unavailable

2

BOLT,HEXAGON

97017-10016-00

Unavailable

3

WASHER, PLATE (3J6)

90201-100A1-00

$8.49

4

SPRING, TENSION

90506-35337-00

Unavailable

5

STAND, SIDE

51J-27311-00-R4

Unavailable

6

BOLT

90109-10473-00

$8.49

7

NUT, U

90185-10037-00

$9.49

8

SPRING, TENSION (4K0)

90506-18224-00

$5.60

9

SPRING, TENSION (4K0)

90506-26225-00

$11.49

10

LINK, SIDE STAND

3VD-27315-00-00

$7.99

11

FRT FOOTREST ASSEMBLY LASSEMBLY (L.H.)

51J-27410-00-00

Unavailable

12

COVER, FOOTREST

4L0-27423-00-00

$49.99

13

FRT FOOTREST ASSEMBLY RASSEMBLY (R.H.)

51J-27420-00-00

Unavailable

14

COVER, FOOTREST

4L0-27423-00-00

$49.99

15

FOOTREST, REAR 1

447-27431-00-00

Unavailable

16

COVER, REAR FOOTREST

447-27433-00-00

Unavailable

17

WASHER 447274370000

90209-18070-00

Unavailable

18

PIN, CLEVIS (1M1)

91701-06042-00

Unavailable

19

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

20

PIN, COTTER

91490-20025-00

Unavailable

21

BRACKET, FOOTREST 2

51J-27425-00-00

Unavailable

22

FOOTREST, REAR 2

447-27441-00-00

Unavailable

23

DAMPER, MUFFLER BRACKET

2H7-27414-00-00

Unavailable

24

COLLAR (2H7)

90387-10636-00

Unavailable

25

HOLDER, BRAKE HOSE 1

3KM-25875-50-00

Unavailable

26

BOLT, HEXAGON

97017-06012-00

Unavailable

27

WASHER, SPRING

92907-06100-00

Unavailable

28

WASHER(6TA)

92907-06600-00

Unavailable

29

BRACKET 2

51J-27442-00-00

Unavailable

30

BRACKET 3

51J-27443-00-00

Unavailable

31

BOLT, HEXAGON SOCKET HEAD(3GM)

90110-08199-00

Unavailable

32

BOLT, HEXAGON SOCKET HEAD

90110-08099-00

Unavailable

33

BOLT, HEXAGON SOCKET HEAD(3KM)

90110-08232-00

Unavailable

34

NUT, FLANGE

95704-08500-00

Unavailable

35

NUT, FLANGE(3BM)

95704-10500-00

Unavailable
