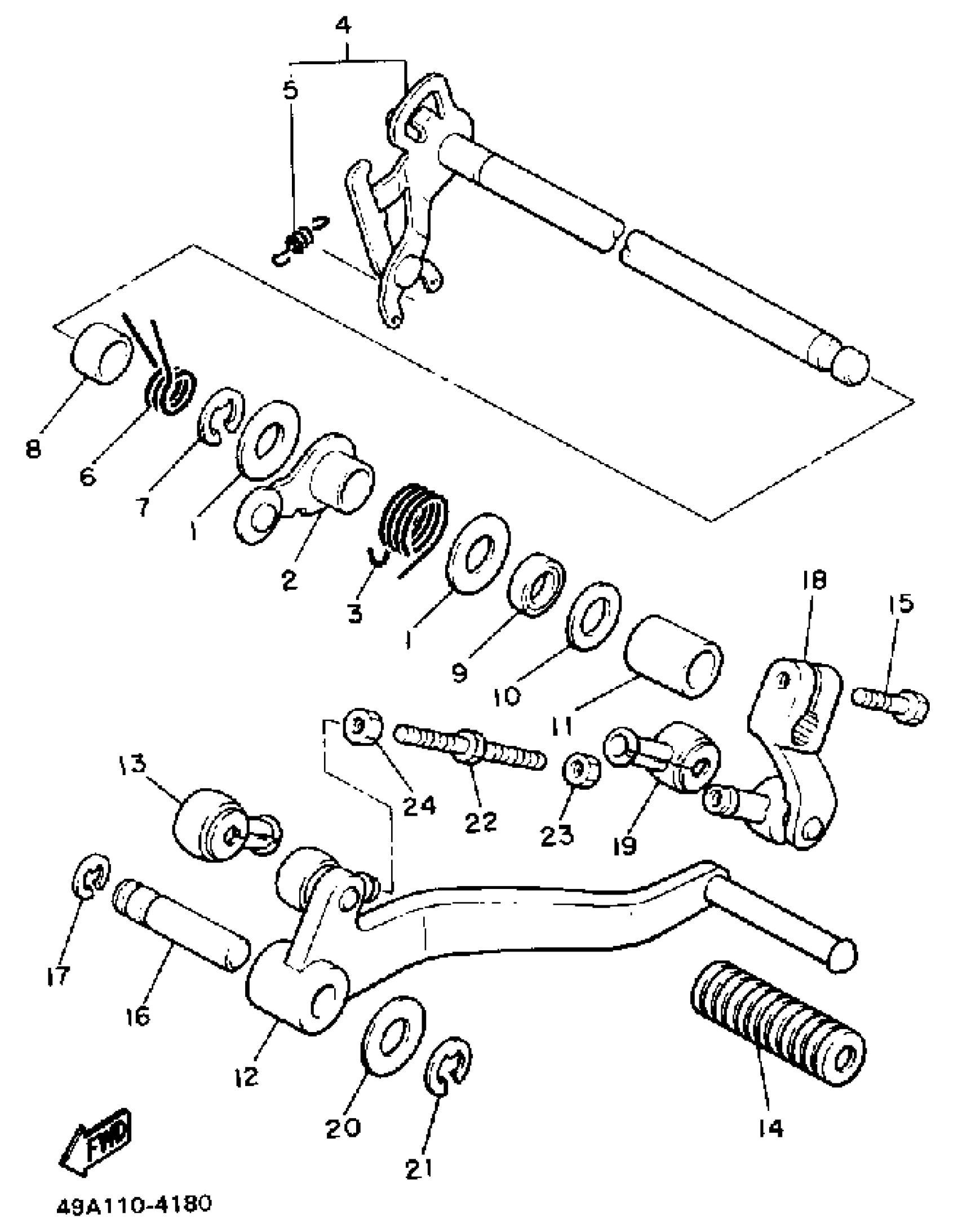

Yamaha FJ600LC (FJ600 CA) 1984 SHIFT SHAFT Diagram

#

Description
Price

1

WASHER

90201-12588-00

$7.49

2

STOPPER LEVER ASSY

4G0-18140-00-00

Unavailable

3

SPRING, TORSION

90508-29640-00

Unavailable

4

SHIFT LEVER ASSEMBLY

4G0-18120-01-00

Unavailable

5

SPRING, TENSION (4H7)

90506-08227-00

$4.19

6

. SPRING, TORSION

90508-32534-00

Unavailable

7

CIRCLIP

99006-10600-00

$9.49

8

COLLAR

90387-12033-00

$7.49

9

SEAL, OIL (30X)

93102-12321-00

$12.49

10

WASHER, PLATE (353)

90201-12575-00

$8.49

11

COLLAR (4G0)

90387-125A8-00

$3.61

12

PEDAL, SHIFT

33M-18110-01-00

Unavailable

13

COVER, DUST

2H9-18154-00-00

$5.49

14

COVER, CHANGE PEDAL

132-18113-01-00

$7.99

15

BOLT, HEXAGON

97017-06020-00

$4.06

16

SHAFT

4K0-18197-00-00

Unavailable

17

CIRCLIP, OUTER

93440-12066-00

Unavailable

18

ARM,SHIFT PEDAL

4BB-18112-00-00

Unavailable

19

COVER, DUST

2H9-18154-00-00

$5.49

20

WASHER, PLATE (5K7)

90201-124E4-00

Unavailable

21

CIRCLIP

99006-10600-00

$9.49

22

ROD, SHIFT

2XK-18115-00-00

Unavailable

23

NUT(650)

95380-06700-00

Unavailable

24

NUT (2H9)

90170-06228-00

Unavailable
