Description

Price

1

SHK/ABS ASSEMBLY, REARASSEMBLY, REAR

49A-22210-00-00

Unavailable

2

. BUSH, RR SHOCK ABS

29L-22216-00-00

Unavailable

3

BUSH, FORMED(1RX)

90383-20033-00

$16.99

4

COLLAR(3FD)

90387-1210W-00

Unavailable

5

BELT, TIMING

33M-22266-00-00

Unavailable

6

PULLEY

29L-22267-00-00

Unavailable

7

BRACKET, PULLEY

(33M-22268-01-00)

Unavailable

8

CIRCLIP, OUTER

93440-10123-00

Unavailable

9

BOLT, SOCKET

91317-08020-00

$8.49

10

WASHER(6TC)

92907-08200-00

$8.49

11

BOLT (1M1)

90109-10453-00

Unavailable

12

WASHER, PLATE (26H)

90201-102G9-00

$9.49

13

NUT, U

95617-10100-00

$8.49

14

COVER, DUST

29L-2217H-00-00

Unavailable

15

WASHER, PLATE

90201-202H3-00

Unavailable

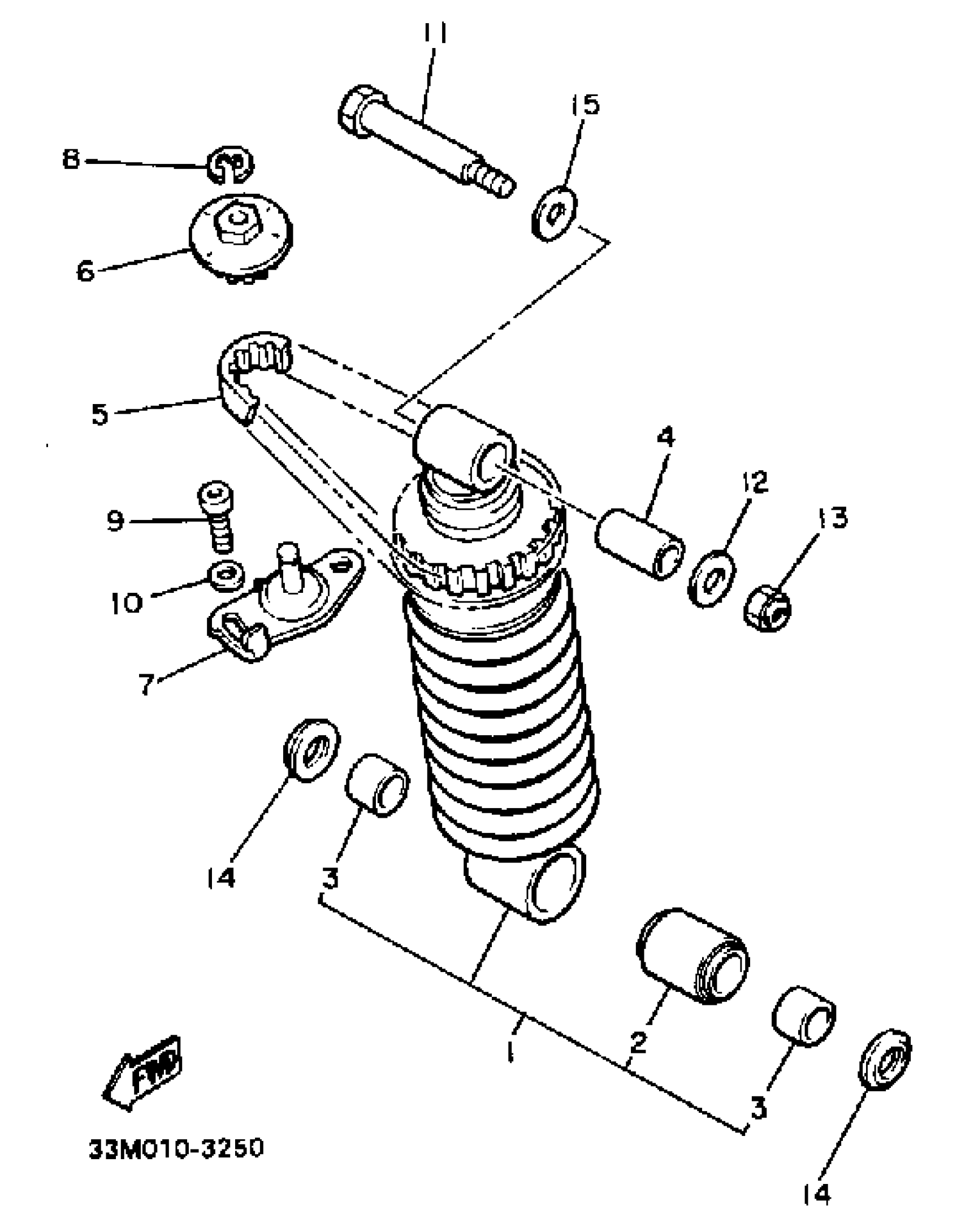

Yamaha FJ600LC (FJ600 CA) 1984 REAR SHOCKS Diagram

SHK/ABS ASSEMBLY, REARASSEMBLY, REAR

. BUSH, RR SHOCK ABS

BUSH, FORMED(1RX)

COLLAR(3FD)

BELT, TIMING

PULLEY

BRACKET, PULLEY

CIRCLIP, OUTER

BOLT, SOCKET

WASHER(6TC)

BOLT (1M1)

WASHER, PLATE (26H)

NUT, U

COVER, DUST

WASHER, PLATE
