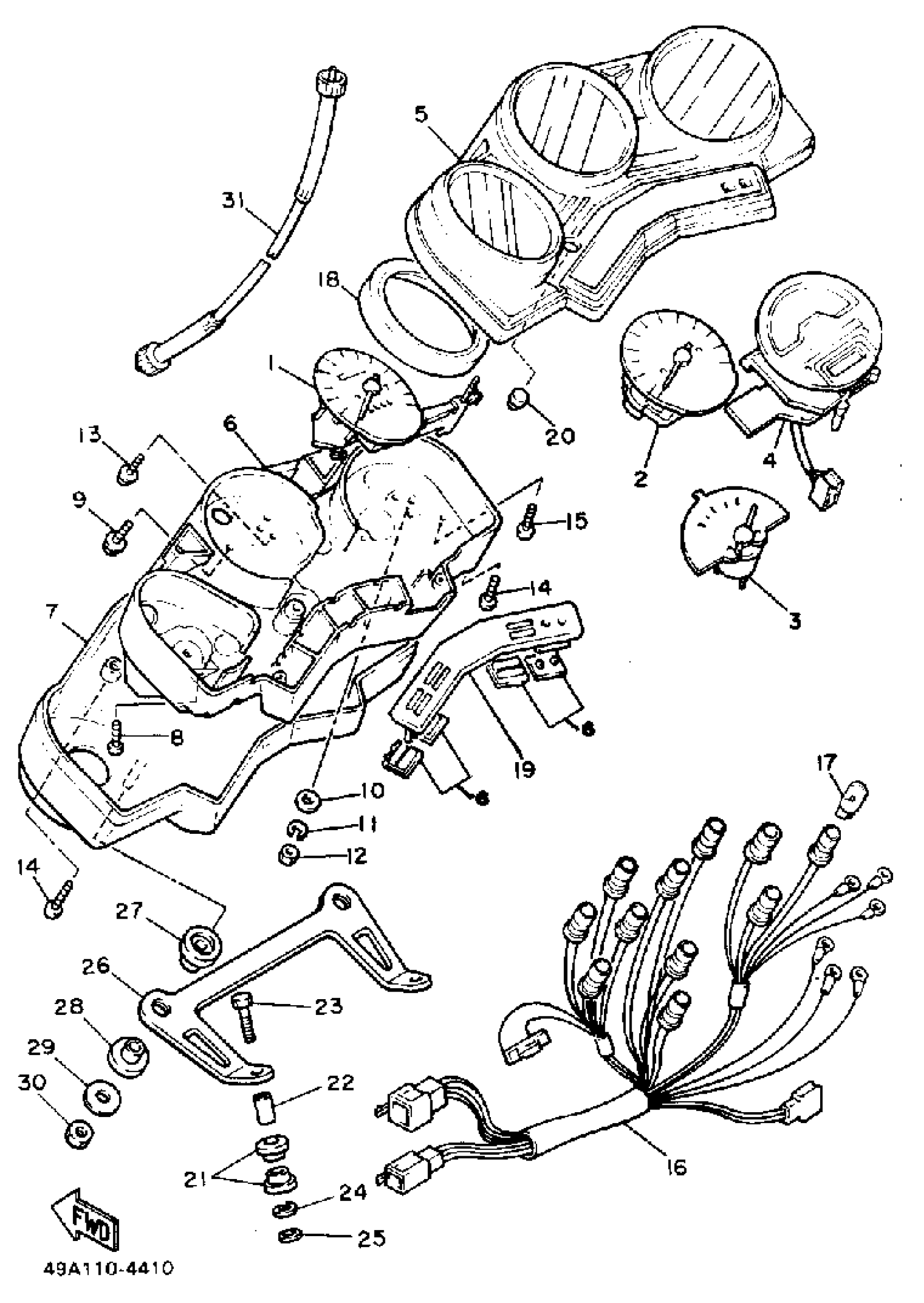

Yamaha FJ600LC (FJ600 CA) 1984 METER Diagram

#

Description
Price

1

SPEEDOMETER ASSEMBLY

41Y-83570-G0-00

Unavailable

2

TACHOMETER ASSEMBLY

29R-83540-00-00

Unavailable

3

FUEL METER ASSEMBLY (31A-85750-00)

29R-85750-00-00

Unavailable

4

PRINT BOARD ASSEMBLY

51J-8359J-00-00

Unavailable

5

CASE, UPPER

51J-8353G-40-00

Unavailable

6

CASE, INNER

31A-8353H-00-00

Unavailable

7

COVER, METER

31A-83559-00-00

Unavailable

8

SCREW, PAN HEAD (31A)

90167-04021-00

Unavailable

9

SCREW, WITH WASHER

90159-04043-00

Unavailable

10

WASHER(3SX)

92907-03600-00

$8.49

11

WASHER, SPRING

92990-03100-00

$8.49

12

NUT (6G8)

95380-03600-00

$1.71

13

SCREW, WITH WASHER

90159-03044-00

Unavailable

14

SCREW, TAPPING (5G2)

90164-04006-00

Unavailable

15

. SCREW, TAPPING

90167-03058-00

Unavailable

16

SOCKET CORD ASSEMBLY

(51J-83509-00-00)

Unavailable

17

BULB, MTR.12V3.4W

4G1-84744-00-XX

Unavailable

18

REFLECTOR

31A-8353L-00-00

Unavailable

19

PANEL ASSEMBLY

51J-8357X-00-00

Unavailable

20

KNOB, TRIP METER

29L-83578-00-00

Unavailable

21

DAMPER, METER BRACKET

584-83541-00-00

Unavailable

22

COLLAR (877)

90387-06249-00

Unavailable

23

BOLT(8BC)

97017-06040-00

Unavailable

24

WASHER, SPRING

92907-06100-00

Unavailable

25

WASHER, PLATE

90201-06380-00

Unavailable

26

BRACKET, METER

49A-83519-00-00

Unavailable

27

DAMPER

31A-83592-00-00

Unavailable

28

DAMPER

31A-83593-00-00

Unavailable

29

WASHER, PLATE

90201-06086-00

Unavailable

30

NUT(6TA)

95317-06600-00

Unavailable

31

SPEEDOMETER CABLE ASSY

1LN-83550-04-00

Unavailable
