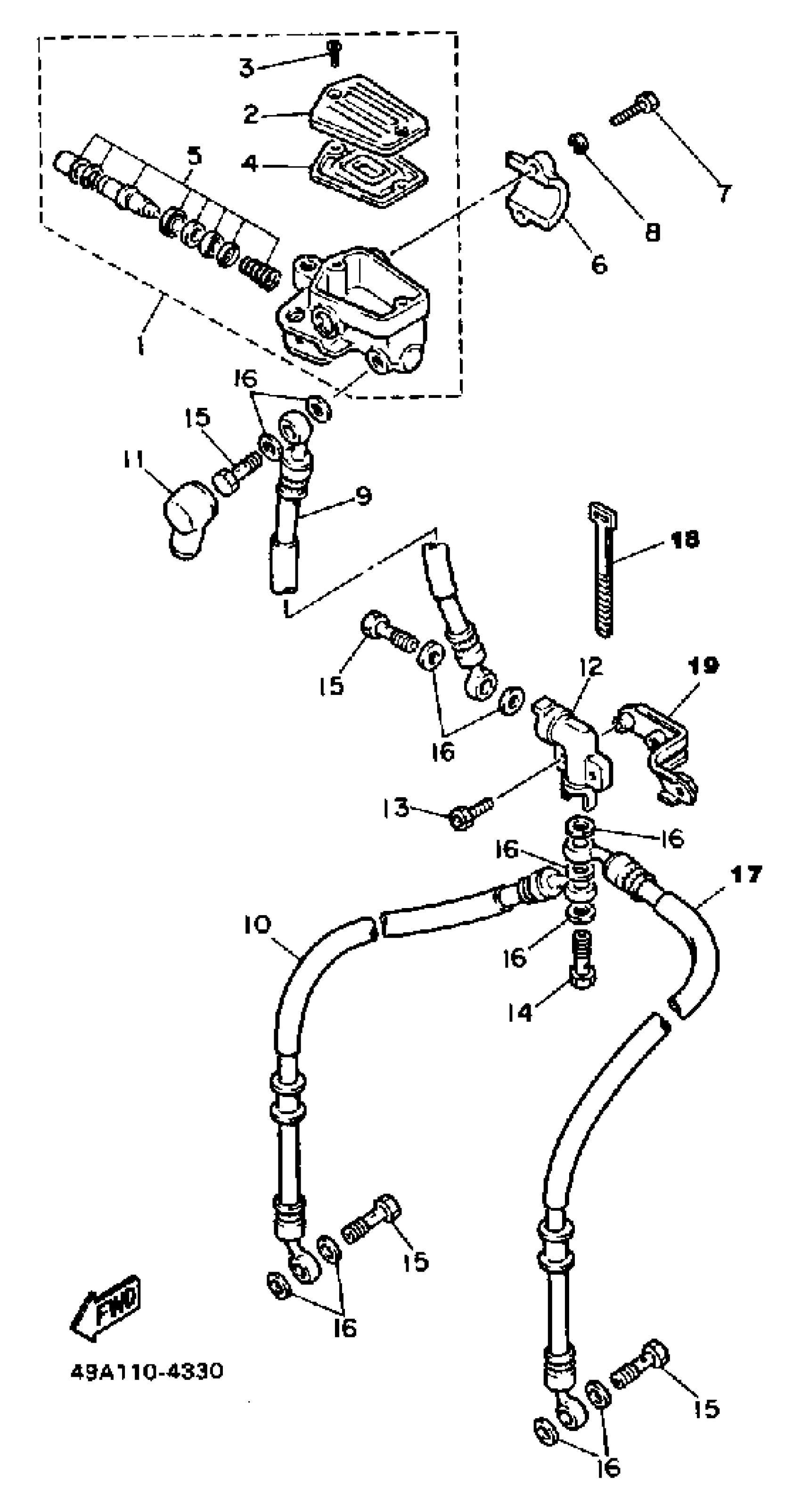

Yamaha FJ600LC (FJ600 CA) 1984 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER ASSY

3HE-2583T-02-00

Unavailable

2

CAP, RESERVOIR

3HE-25852-01-00

$29.99

3

SCREW, FLAT

98707-04012-00

$2.18

4

DIAPHRAGM, RESERVOIR

36Y-25854-00-00

$35.99

5

CYLINDER KIT, MASTER

36Y-W0041-00-00

Unavailable

6

BRACKET, MASTER CYLINDER

36Y-25867-00-00

$24.99

7

BOLT,SOCKET

91317-06025-00

$5.60

8

WASHER, SPRING

92907-06100-00

$4.25

9

HOSE, BRAKE 1

5K7-25872-00-00

Unavailable

10

HOSE, BRAKE 1

99999-02564-00

Unavailable

11

BOOT, MASTER CYLINDER

4L0-25862-01-00

$7.99

12

JOINT

11U-25885-00-00

Unavailable

13

BOLT,SOCKET

91317-06035-00

Unavailable

14

BOLT, UNION

90401-10038-00

$12.49

15

BOLT, UNION(3GM)

90401-10159-00

$11.49

16

WASHER, PLATE(481)

90201-10118-00

Unavailable

17

HOSE, BRAKE

(33M-25874-00-00)

Unavailable

18

BAND

341-26397-01-00

Unavailable

19

STAY 2

(51J-28357-00-00)

Unavailable
