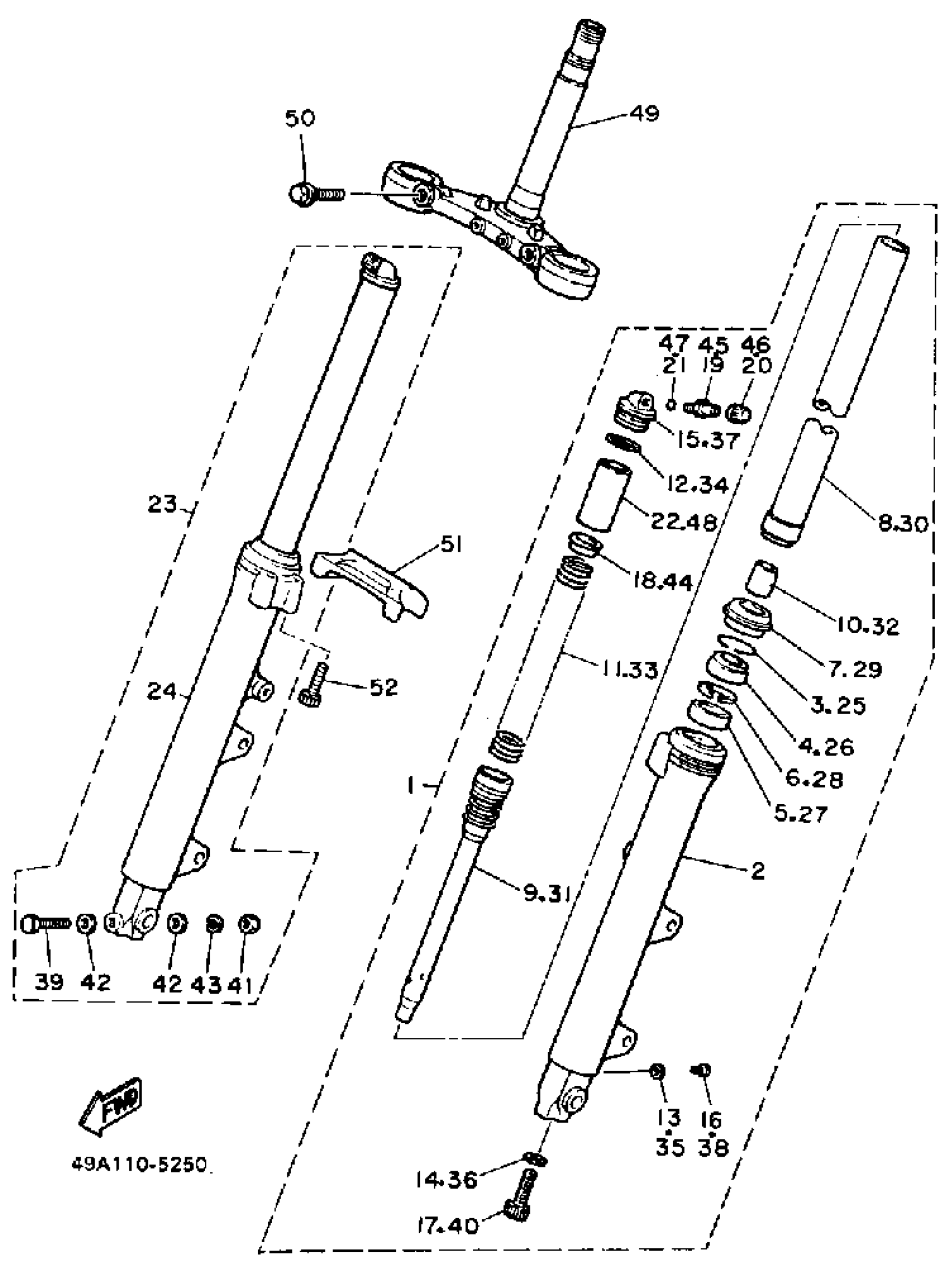

Yamaha FJ600LC (FJ600 CA) 1984 FRONT FORK FJ600N NC Diagram

#

Description
Price

1

FRONT FORK ASSEMBLY LH

(51K-23102-00-00)

Unavailable

2

. TUBE, OUTER 1

33M-23126-00-00

Unavailable

3

RING, SNAP

4A1-23156-00-00

$5.49

4

OIL SEAL

4ES-23145-00-00

$22.99

5

METAL, SLIDE 1

30X-23125-00-00

$29.99

6

WASHER, SPRING UPPER

5K5-23149-00-00

$7.99

7

SEAL, DUST

33M-23144-00-00

$28.99

8

. INNER TUBE 1 COMP 1

33M-23110-00-00

Unavailable

9

CYLINDER, FRTFRK

(49A-23170-00-00)

Unavailable

10

SPINDLE, TAPER

(26M-23173-00-00)

Unavailable

11

SPRING FRONT FORK

(51K-23141-00-00)

Unavailable

12

O-RING

1W1-23114-L0-00

$9.99

13

GASKET, DRAIN PLUG

122-23129-00-00

$7.99

14

GASKET

509-23158-L0-00

$16.49

15

. BOLT, CAP

33M-23111-00-00

Unavailable

16

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

17

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

Unavailable

18

. SEAT, SPRING UPPER

1W1-23142-L0-00

Unavailable

19

AIR VALVE COMP.

23X-23190-L0-00

Unavailable

20

.. CAP, AIR VALVE

24M-23184-00-00

Unavailable

21

O-RING

3J2-23147-00-00

Unavailable

22

SPACER

4V5-23118-L1-00

Unavailable

23

FRONT FORK AS RH

(51K-23103-00-00)

Unavailable

24

TUBE, OUTER 2

(33M-23136-00-00)

Unavailable

25

RING, SNAP

4A1-23156-00-00

$5.49

26

OIL SEAL

4ES-23145-00-00

$22.99

27

METAL, SLIDE 1

30X-23125-00-00

$29.99

28

WASHER, SPRING UPPER

5K5-23149-00-00

$7.99

29

SEAL, DUST

33M-23144-00-00

$28.99

30

. INNER TUBE 1 COMP 1

33M-23110-00-00

Unavailable

31

CYLINDER, FRTFRK

(49A-23170-00-00)

Unavailable

32

SPINDLE, TAPER

(26M-23173-00-00)

Unavailable

33

SPRING FRONT FORK

(51K-23141-00-00)

Unavailable

34

O-RING

1W1-23114-L0-00

$9.99

35

GASKET, DRAIN PLUG

122-23129-00-00

$7.99

36

GASKET

509-23158-L0-00

$16.49

37

. BOLT, CAP

33M-23111-00-00

Unavailable

38

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

39

BOLT, HEXAGON

97017-08060-00

Unavailable

40

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

Unavailable

41

NUT(6L2)

95333-08600-00

Unavailable

42

.. WASHER, PLATE

92990-08600-00

Unavailable

43

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

44

. SEAT, SPRING UPPER

1W1-23142-L0-00

Unavailable

45

AIR VALVE COMP.

23X-23190-L0-00

Unavailable

46

.. CAP, AIR VALVE

24M-23184-00-00

Unavailable

47

O-RING

3J2-23147-00-00

Unavailable

48

SPACER

4V5-23118-L1-00

Unavailable

49

UNDER BRACKETCOMP.

49A-23340-00-00

Unavailable

50

. BOLT 1

4G0-23346-00-00

Unavailable

51

BRACE, FORK

31A-2313A-30-00

Unavailable

52

BOLT,SOCKET HEAD

91314-06020-00

Unavailable
