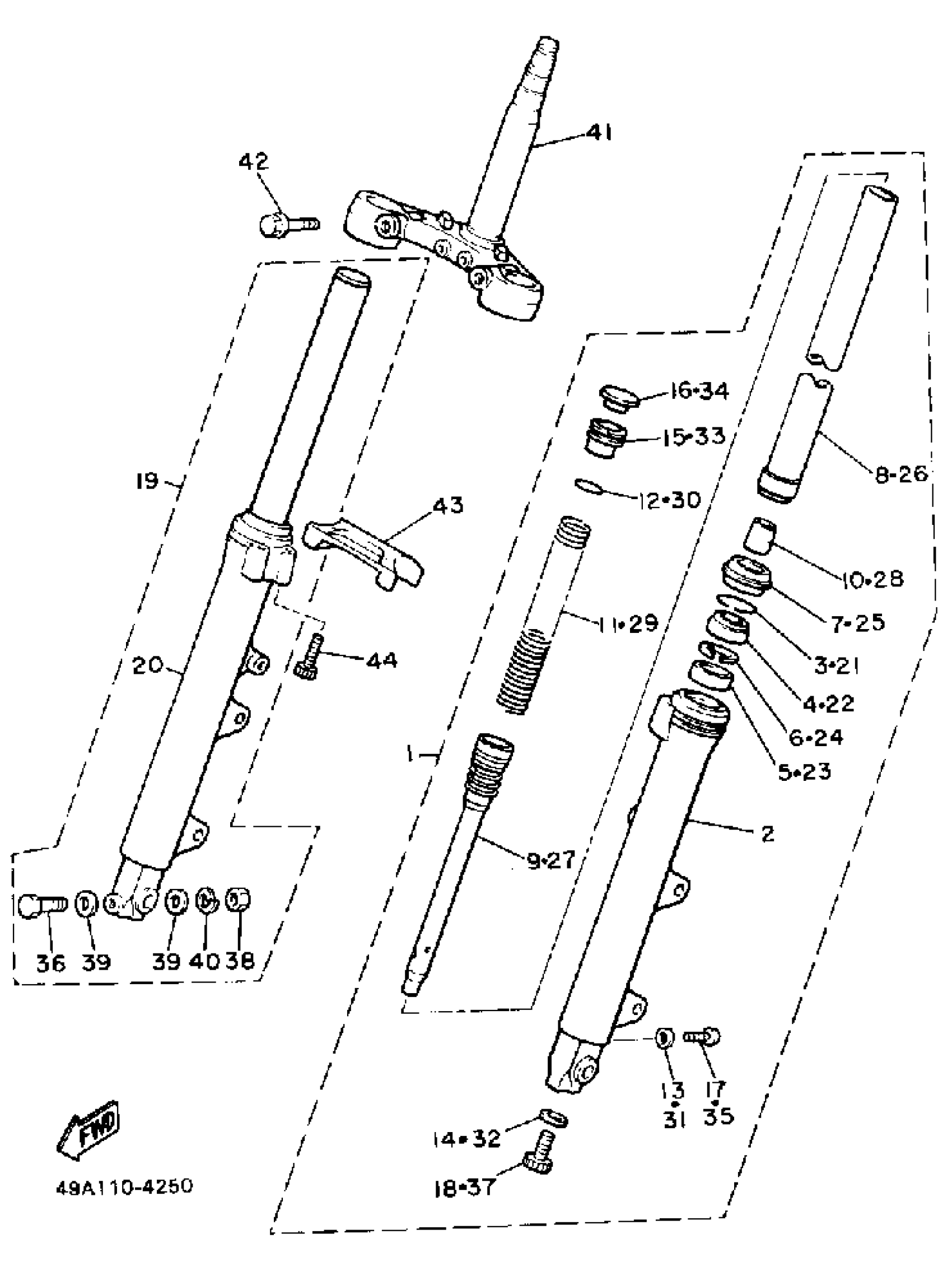

Yamaha FJ600LC (FJ600 CA) 1984 FRONT FORK FJ600L LC Diagram

#

Description
Price

1

FRONT FORK ASSEMBLY LASSEMBLY (L.H.)

49A-23102-00-00

Unavailable

2

. TUBE, OUTER 1

33M-23126-00-00

Unavailable

3

RING, SNAP

4A1-23156-00-00

$5.49

4

OIL SEAL

4ES-23145-00-00

$22.99

5

METAL, SLIDE 1

30X-23125-00-00

$29.99

6

WASHER, SPRING UPPER

5K5-23149-00-00

$7.99

7

SEAL, DUST

33M-23144-00-00

$28.99

8

. INNER TUBE 1 COMP 1

3KM-23110-00-00

Unavailable

9

CYLINDER, FRTFRK

(49A-23170-00-00)

Unavailable

10

TAPER SPINDLE

1W1-23173-L0-00

$31.99

11

. SPRING, FRONT FORK

49A-23141-00-00

Unavailable

12

O-RING

1W1-23114-L0-00

$9.99

13

GASKET, DRAIN PLUG

122-23129-00-00

$7.99

14

GASKET

509-23158-L0-00

$16.49

15

. BOLT, CAP

31A-23111-31-00

Unavailable

16

CAP, FRONT FORK

26H-23168-00-00

Unavailable

17

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

18

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

Unavailable

19

FRONT FORK ASSEMBLY RASSEMBLY (R.H.)

49A-23103-00-00

Unavailable

20

TUBE, OUTER 2

(33M-23136-00-00)

Unavailable

21

RING, SNAP

4A1-23156-00-00

$5.49

22

OIL SEAL

4ES-23145-00-00

$22.99

23

METAL, SLIDE 1

30X-23125-00-00

$29.99

24

WASHER, SPRING UPPER

5K5-23149-00-00

$7.99

25

SEAL, DUST

33M-23144-00-00

$28.99

26

. INNER TUBE 1 COMP 1

3KM-23110-00-00

Unavailable

27

CYLINDER, FRTFRK

(49A-23170-00-00)

Unavailable

28

TAPER SPINDLE

1W1-23173-L0-00

$31.99

29

. SPRING, FRONT FORK

49A-23141-00-00

Unavailable

30

O-RING

1W1-23114-L0-00

$9.99

31

GASKET, DRAIN PLUG

122-23129-00-00

$7.99

32

GASKET

509-23158-L0-00

$16.49

33

. BOLT, CAP

31A-23111-31-00

Unavailable

34

CAP, FRONT FORK

26H-23168-00-00

Unavailable

35

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

36

BOLT, HEXAGON

97017-08060-00

Unavailable

37

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

Unavailable

38

NUT(6L2)

95333-08600-00

Unavailable

39

.. WASHER, PLATE

92990-08600-00

Unavailable

40

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

41

UNDER BRACKETCOMP.

49A-23340-00-00

Unavailable

42

. BOLT 1

4G0-23346-00-00

Unavailable

43

BRACE, FORK

31A-2313A-30-00

Unavailable

44

BOLT,SOCKET HEAD

91314-06020-00

Unavailable
