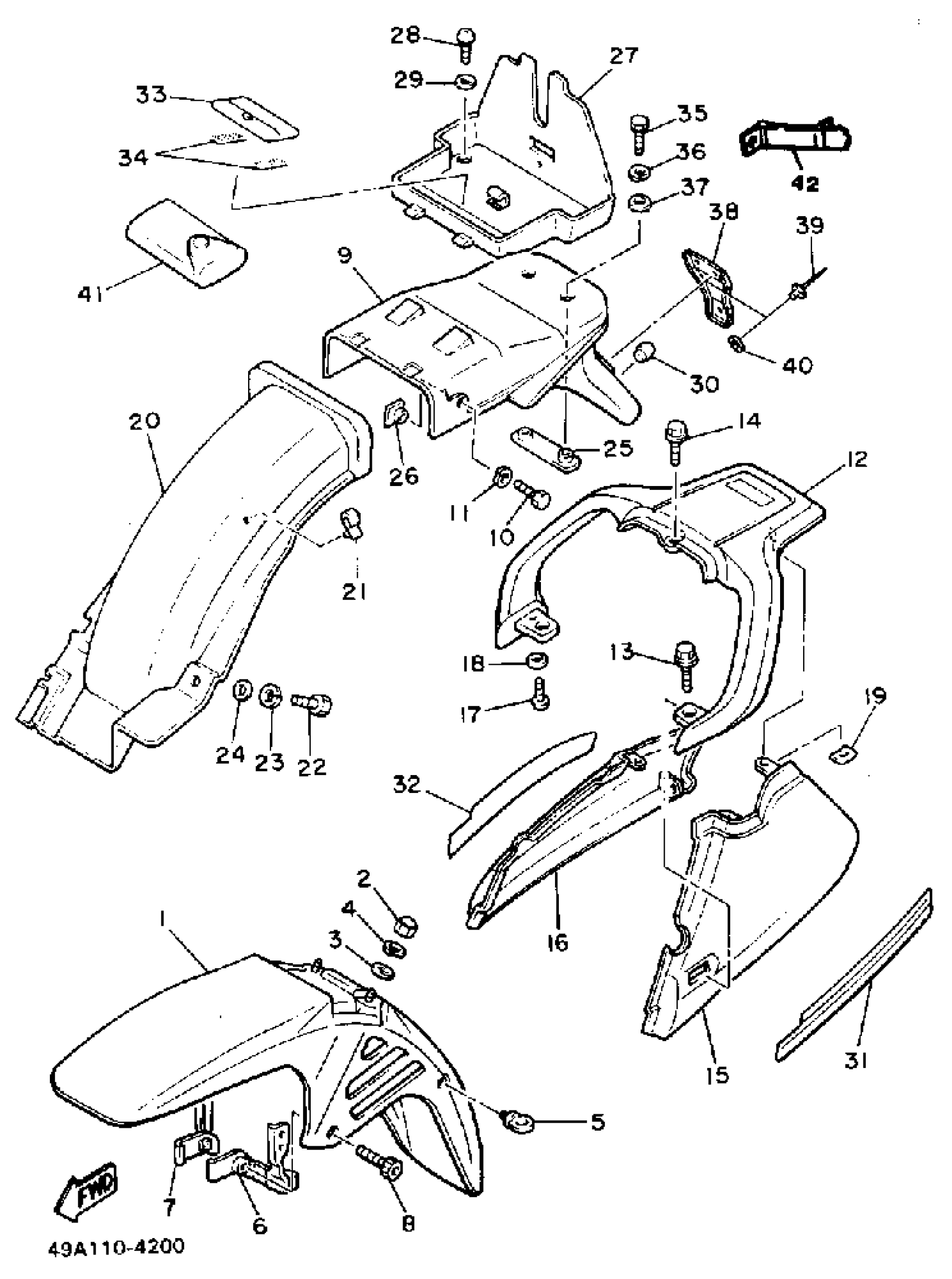

Yamaha FJ600LC (FJ600 CA) 1984 FENDER Diagram

#

Description
Price

1

FENDER,FRONT

33M-21510-00-GE

Unavailable

1

FENDER, FRONTCOMP. (N/NC)

33M-21510-00-6G

Unavailable

2

NUT (J17)

95380-06800-00

$8.49

3

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

4

WASHER, SPRING

92995-06100-00

Unavailable

5

GUIDE, WIRE

1A8-21518-00-00

$7.99

6

PLATE 1

49A-21523-00-00

Unavailable

7

PLATE 2

49A-21524-00-00

Unavailable

8

BOLT,SOCKET HEAD

91314-06025-00

$8.49

9

FENDER, REAR

33M-21611-00-00

Unavailable

10

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

11

WASHER, SPRING

92995-06100-00

Unavailable

12

STAY, REAR FENDER

3KM-21645-00-00

Unavailable

13

BOLT, FLANGE(8AB)

95817-08020-00

$9.49

14

BOLT, FLANGE(JN5)

95817-08016-00

$5.49

15

COVER, REAR FENDERFENDER 2

33M-2163A-00-1U

Unavailable

15

COVER, REAR FENDERFENDER 2

33M-2163A-00-6G

Unavailable

16

COVER, REAR FNDR.3FENDER 3

33M-2163E-00-1U

Unavailable

16

COVER, REAR FNDR.3FENDER 3

33M-2163E-00-6G

Unavailable

17

SCREW,PAN HEAD (646)

98580-05012-00

Unavailable

18

WASHER, PLATE 8067717800

90201-05029-00

Unavailable

19

NUT, SPRING

90183-06071-00

Unavailable

20

GUARD, MUD

33M-21629-00-00

Unavailable

21

CLAMP (1J7)

90464-16021-00

Unavailable

22

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

23

UNAVAILABLE IN PRICE BOOK (92903-06100)

229-00061-00-00

Unavailable

24

WASHER, PLATE

90201-06380-00

Unavailable

25

NUT, REAR FENDER

(33M-21635-00-00)

Unavailable

26

NUT

(33M-21636-00-00)

Unavailable

27

BOX

33M-2160A-00-00

Unavailable

28

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

29

WASHER, PLAIN (646)

92990-06600-00

Unavailable

30

DAMPER 2

5A8-21639-00-00

Unavailable

31

GRPHC, R/FNDR CVR LCOVER (L.H.)

51J-21661-00-00

Unavailable

31

GRPHC, R/FNDR CVR LCOVER

51J-21661-10-00

Unavailable

32

GRPHC, R/FNDR CVR RCOVER (R.H.)

51J-21662-00-00

Unavailable

32

GRPHC, R/FNDR CVR RCOVER

51J-21662-10-00

Unavailable

33

POUCH

4U7-28186-00-00

Unavailable

34

HOOK

4K5-2814E-10-00

Unavailable

35

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

36

WASHER, SPRING

92995-06100-00

Unavailable

37

WASHER, PLATE (4H7)

90201-061A5-00

Unavailable

38

BRACKET, REFLECT 1

49A-85132-00-00

Unavailable

39

RIVET, BLIND (8K1)

90267-40076-00

Unavailable

40

WASHER, PLATE(26H)

90201-044H9-00

Unavailable

41

TOOL KIT

46X-W2810-00-00

Unavailable

42

BAND, TOOL

33M-21376-00-00

Unavailable
