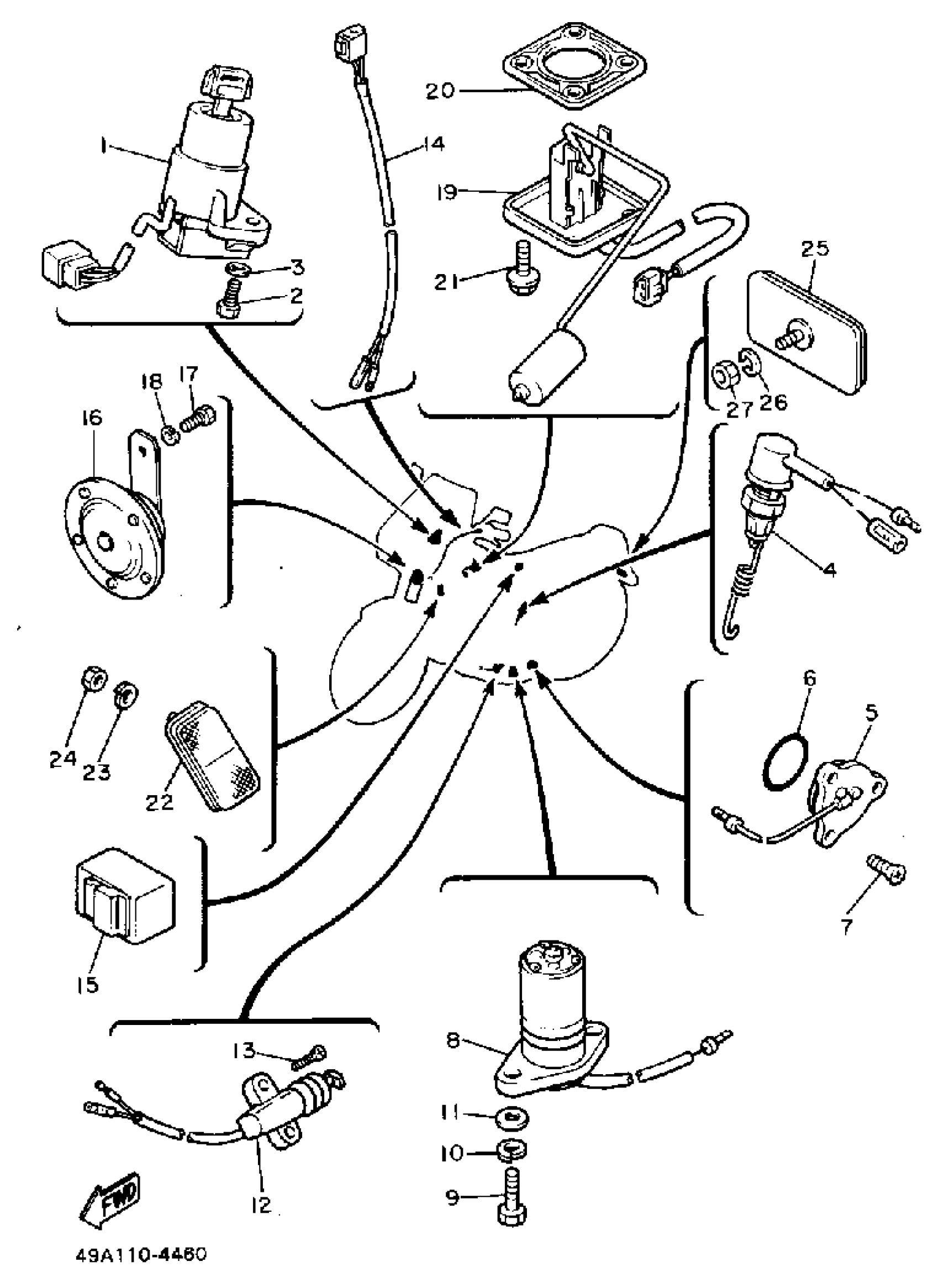

Yamaha FJ600LC (FJ600 CA) 1984 ELECTRICAL 2 Diagram

#

Description
Price

1

MAIN SWITCH STEERING LOCK

3JV-82501-00-00

Unavailable

2

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

3

WASHER, PLAIN (646)

92990-06600-00

$2.80

4

STOP SWITCH ASSEMBLY

33M-82530-02-00

Unavailable

5

NEUTRAL SWITCH ASSY

1L9-82540-00-00

$47.99

6

O-RING (371)

93210-29196-00

$8.49

7

SCREW, FLAT

98707-05012-00

$1.71

8

OIL LEVEL GAUGE ASSEMBLY

4U8-85720-00-00

Unavailable

9

BOLT, HEXAGON

97017-06020-00

$4.06

10

WASHER, SPRING

92995-06100-00

Unavailable

11

WASHER, PLATE (4H7)

90201-061A5-00

$7.49

12

SWITCH, SIDE STAND

4DH-82566-00-00

Unavailable

13

SCREW, FLAT

98707-05016-00

$7.99

14

WIRE,LEAD

49A-82541-00-00

Unavailable

15

FLASHER RELAY ASSY

41R-83350-72-00

Unavailable

16

HORN

4L0-83371-30-00

Unavailable

17

BOLT, HEXAGON

97027-08012-00

Unavailable

18

WASHER(JN5)

92907-08100-00

Unavailable

19

SENDER UNIT ASSEMBLY, FUEL METER

33M-85752-00-00

Unavailable

20

GASKET, SENDER UNIT

5G3-85753-00-00

Unavailable

21

BOLT, WITH WASHER

90119-05071-00

Unavailable

22

FRONT REFLECTOR ASSEMBLY

4X7-85110-00-00

Unavailable

23

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

24

NUT, HEXAGON (663)

95380-05600-00

Unavailable

25

REAR REFLECTOR ASSY

3Y6-85130-02-00

Unavailable

26

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

27

NUT, HEXAGON (663)

95380-05600-00

Unavailable
