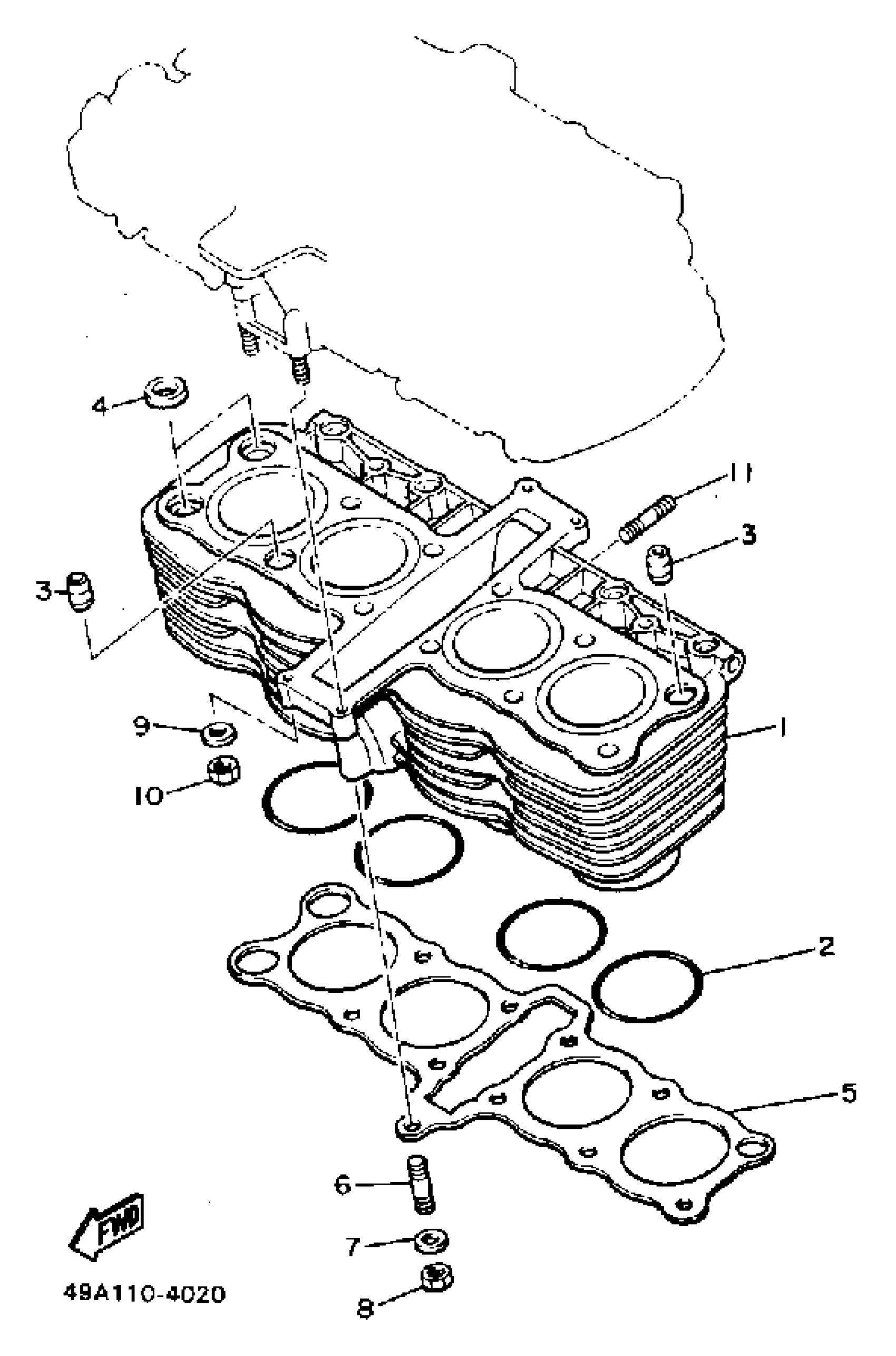

Yamaha FJ600LC (FJ600 CA) 1984 CYLINDER Diagram

#

Description
Price

1

CYLINDER

49A-11310-02-00

Unavailable

2

O-RING (1M0)

93210-62323-00

$7.35

3

PIN, DOWEL

99530-14016-00

$2.98

4

GASKET (1L9)

90430-14131-00

$4.96

5

GASKET, CYLINDER

3KM-11351-00-00

Unavailable

6

BOLT, STUD 2

95617-08330-00

$9.09

7

WASHER, PLATE (33N)

90201-084G3-00

Unavailable

8

NUT(6L2)

95333-08600-00

$2.98

9

WASHER, PLATE (4H7)

90201-061A5-00

$5.47

10

NUT(6TA)

95317-06600-00

$2.52

11

BOLT, STUD(1JK)

90116-06475-00

$6.39
