CARBURETOR

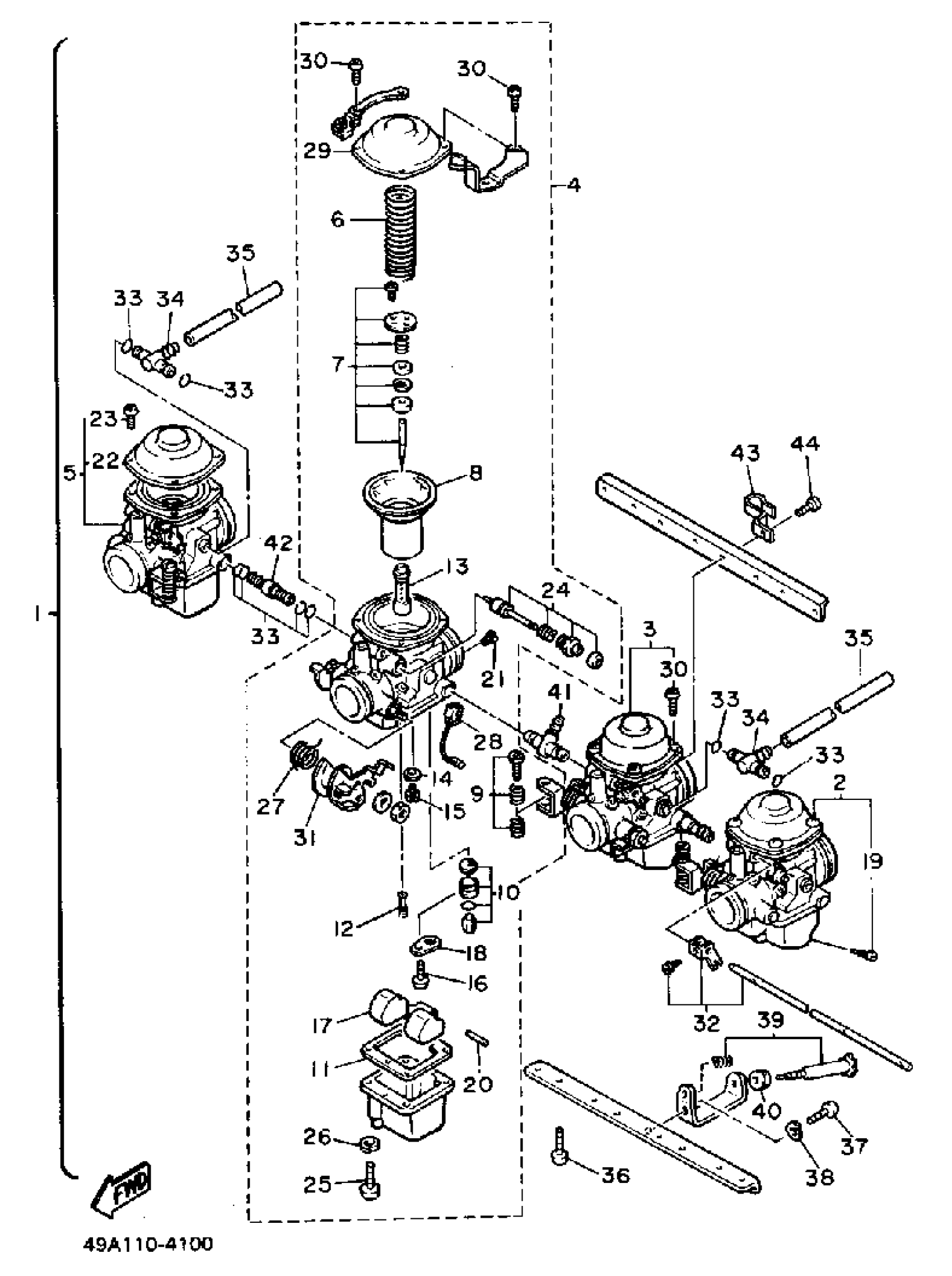

Yamaha FJ600LC (FJ600 CA) 1984 CARBURETOR Diagram
#
1
UNAVAILABLE IN PRICE BOOKASSEMBLY
(49A-14100-01-00)
Unavailable
1
UNAVAILABLE IN PRICE BOOKASSEMBLY
(51K-14100-01-00)
Unavailable
2
CARBURETOR ASSEMBLY 1
(49A-14901-01-00)
Unavailable
2
CARBURETOR ASSEMBLY 1
(51K-14901-01-00)
Unavailable
3
CARBURETOR ASSEMBLY 2
(49A-14902-01-00)
Unavailable
3
CARBURETOR ASSEMBLY 2
(51K-14902-01-00)
Unavailable
4
CARBURETOR ASSEMBLY 3
(51K-14903-01-00)
Unavailable
5
CARBURETOR ASSEMBLY 4
(49A-14904-01-00)
Unavailable
5
CARBURETOR ASSEMBLY 4
(51K-14904-01-00)
Unavailable
6
.. SPRING, DIAPHRAGM
3F7-14933-00-00
Unavailable
7
.. NEEDLE SET
49A-1490J-00-00
Unavailable
7
.. NEEDLE SET
51K-1490J-00-00
Unavailable
8
.. DIAPHRAGM ASSEMBLY ASSEMBLY
49A-14940-00-00
Unavailable
9
STOP SCREW SET
36Y-1490K-00-00
Unavailable
11
GASKET, FLOAT CHAMBER
3XW-14984-00-00
Unavailable
12
JET, PILOT (# 35)
4G0-14142-35-A0
Unavailable
13
.. NOZZLE, MAIN
49A-14941-28-00
Unavailable
14
WASHER,MAIN JET
137-14153-00-00
Unavailable
15
JET, MAIN (#105)
620-14231-21-A0
Unavailable
15
JET,MA1N #102.5
620-1423A-71-A0
Unavailable
16
SCREW, PAN HEAD(3XP)
98517-04006-00
Unavailable
17
FLOAT
3H5-14985-00-00
Unavailable
18
. PLATE
2H0-14146-00-00
Unavailable
19
PLUG, DRAIN
12R-14191-00-00
Unavailable
20
PIN, FLOAT
537-14186-00-00
Unavailable
21
JET, MAIN (#160)
3G2-14231-32-00
Unavailable
22
COVER, DIAPHRAGM
(51K-14958-00-00)
Unavailable
23
SCREW, PAN HEAD(62X)
97885-05010-00
Unavailable
24
.. STARTER SET
49A-1410A-00-00
Unavailable
25
SCREW, PAN HEAD(6B0)
97885-05016-00
Unavailable
26
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
27
SPRING, THRTL 2
(51K-14932-00-00)
Unavailable
28
. CABLE
49A-14130-00-00
Unavailable
29
COVER, DIAPHRAGM
(49A-14958-00-00)
Unavailable
30
SCREW, PAN HEAD(62X)
97885-05010-00
Unavailable
31
WASHER
(306-14170-00-00)
Unavailable
32
STARTER LEVER SET
(49A-1490L-00-00)
Unavailable
33
O-RING
36Y-14147-00-00
Unavailable
34
. PIPE, STARTER CON
4V7-14988-00-00
Unavailable
35
HOSE
(17A-14987-00-00)
Unavailable
36
SCREW, PAN
98507-06014-00
Unavailable
37
SCREW, PAN HEAD(62X)
97885-05010-00
Unavailable
38
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
39
. THROTTLE SCREW SET
31A-14103-00-00
Unavailable
40
. BUSH
4G0-14998-00-00
Unavailable
41
NIPPLE, CARBURETOR JOINT
1J7-14988-00-00
Unavailable
42
. NIPPLE
16G-14251-00-00
Unavailable
43
CLIP, PIPE
(49A-14139-00-00)
Unavailable
44
SCREW, PAN HEAD(62X)
97885-05010-00
Unavailable
