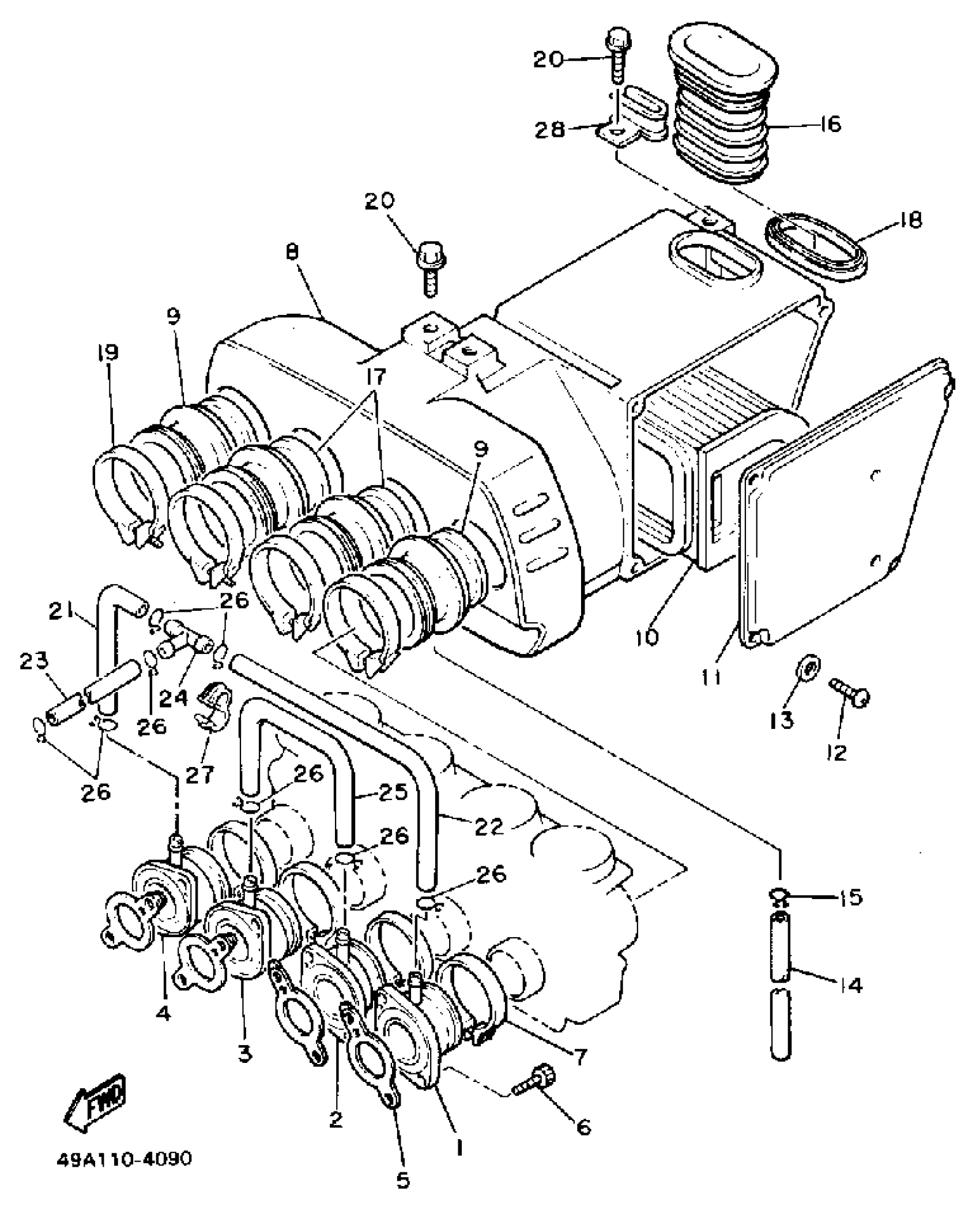

Yamaha FJ600LC (FJ600 CA) 1984 AIR CLEANER Diagram

#

Description
Price

1

JOINT, CARBURETOR 1

49A-13586-01-00

Unavailable

2

JOINT, CARBURETOR 2

49A-13596-01-00

Unavailable

3

JOINT, CARBURETOR 3

49A-13597-01-00

Unavailable

4

JOINT, CARBURETOR 4

49A-13598-01-00

Unavailable

5

GASKET, MANIFOLD

3KM-13556-00-00

Unavailable

6

BOLT,SOCKET

91317-06020-00

Unavailable

7

CLAMP, H0SE (29R)

90460-49248-00

$24.99

8

AIR CLNR CASSEMBLY ASSEMBLYASSY

49A-14401-02-00

Unavailable

9

JOINT, AIR CLNR 1

49A-14453-00-00

Unavailable

10

ELEMENT, AIR CLEANER

33M-14451-00-00

Unavailable

11

CAP, CLEANER CASE 1

33M-14412-01-00

Unavailable

12

SCREW, PAN HEAD(4MY)

98507-05025-00

$8.49

13

WASHER(1RW)

92907-05600-00

$3.78

14

TUBE, FLEXIBLE(3NV)

91A21-07020-00

$10.49

15

CLIP

90467-090A2-00

$4.41

16

DUCT

49A-14437-00-00

Unavailable

17

JOINT, AIR CLNR 2

49A-14463-00-00

Unavailable

18

REINFORCEMENT 8

49A-1468T-00-00

Unavailable

19

HOSE CLAMP ASSY

90450-58002-00

Unavailable

20

BOLT, WITH WASHER (4L6)

90119-06029-00

Unavailable

21

HOSE 1

(33M-13545-00-00)

Unavailable

22

HOSE 2

(33M-13546-00-00)

Unavailable

23

HOSE (L770)

90445-090G9-00

Unavailable

24

WAY 3(33M)

90413-05014-00

Unavailable

25

HOSE 3

(33M-13547-00-00)

Unavailable

26

CLIP (16G)

90467-08021-00

Unavailable

27

CLIP(33M)

90468-15139-00

Unavailable

28

CLAMP

90462-10081-00

Unavailable
