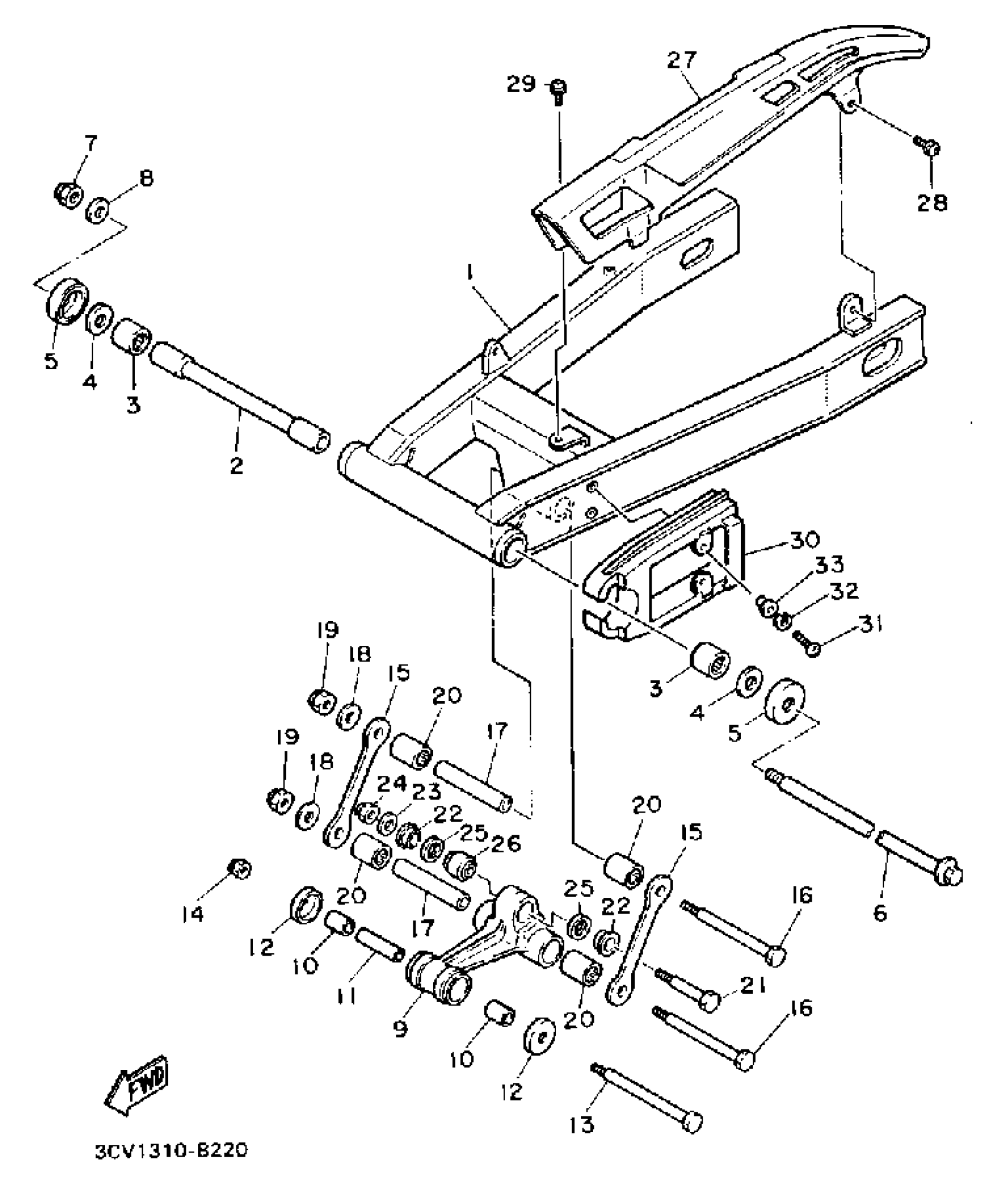

Yamaha FJ1200WC (FJ1200 CA) 1989 SWING ARM Diagram
#
1
REAR ARM
3CV-22110-00-00
Unavailable
2
BUSH
36Y-22184-00-00
Unavailable
3
BEARING, CYLINDRICAL(36Y)
93317-42550-00
Unavailable
4
SHIM
36Y-22127-00-00
Unavailable
5
COVER, THRUST 1
36Y-22128-00-00
Unavailable
6
SHAFT, PIVOT
36Y-22141-00-00
Unavailable
9
ARM, RELAY
3CV-2217A-00-00
Unavailable
11
COLLAR(1FN)
90387-123M4-00
Unavailable
12
COVER, THRUST 2
36Y-22129-00-00
Unavailable
13
BOLT
90101-12605-00
Unavailable
15
ARM 1
3CV-2217M-00-00
Unavailable
16
BOLT(2GH)
90101-12673-00
Unavailable
17
COLLAR(2GH)
90387-126T1-00
Unavailable
18
WASHER, PLATE (4N0)
90201-126A7-00
Unavailable
20
BEARING, CYLINDRICAL(2GH)
93317-41761-00
Unavailable
21
BOLT(1WG)
90101-10659-00
Unavailable
22
COLLAR(3BC)
90387-124W2-00
Unavailable
23
WASHER, PLATE(47X)
90201-101J1-00
Unavailable
24
NUT, U
95614-10100-00
Unavailable
25
OIL SEAL(47X)
93101-16131-00
Unavailable
26
BEARING(47X)
93399-99919-00
Unavailable
27
CASE, CHAIN
36Y-22311-00-00
Unavailable
28
SCREW, PANHEAD W/WASHER (22F)
90159-06082-00
Unavailable
29
SCREW, W/WASHER (14T)
90159-06059-00
Unavailable
30
SEAL, GUARD
2KT-22151-00-00
Unavailable
31
SCREW, PAN HEAD (76T)
98517-06025-00
Unavailable
32
WASHER, SPRING
92995-06100-00
Unavailable
33
COLLAR (8G8)
90387-06681-00
Unavailable
