STAND FOOTREST

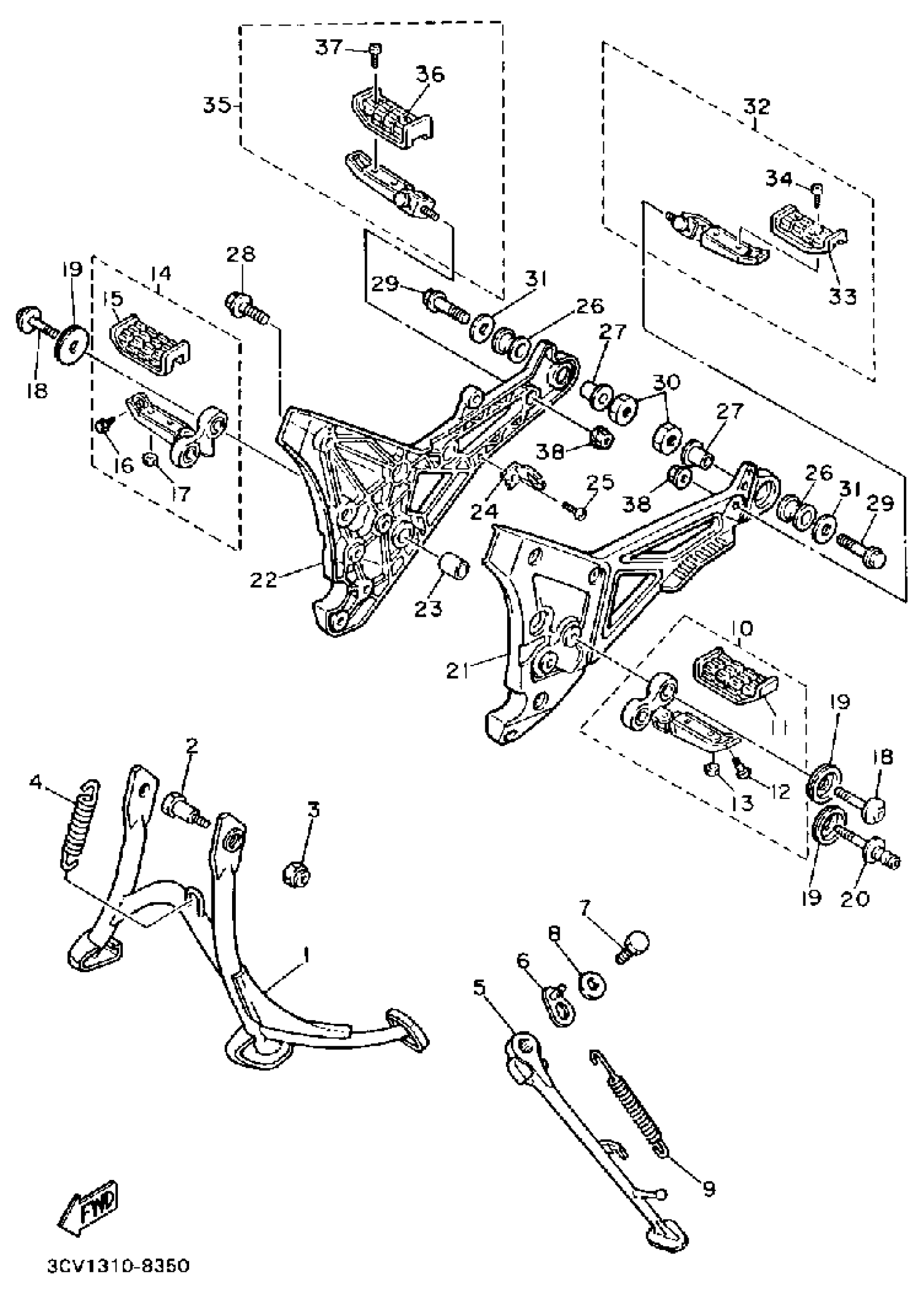

Yamaha FJ1200WC (FJ1200 CA) 1989 STAND FOOTREST Diagram
#
1
STAND, MAIN
36Y-27111-01-33
Unavailable
4
SPRING, TENSION (12R)
90506-45278-00
Unavailable
5
STAND,SIDE
1TX-27311-00-R4
Unavailable
6
HOOK, SIDE STAND
36Y-27352-00-00
Unavailable
8
WASHER, PLATE(J42)
90201-084K3-00
Unavailable
10
FRT FOOTREST ASSEMBLY LASSEMBLY (LEFT)
3CV-27410-00-00
Unavailable
14
FRT FOOTREST ASSEMBLY RASSEMBLY (RIGHT)
3CV-27420-00-00
Unavailable
18
BOLT (3XF1)
90110-08221-00
Unavailable
19
WASHER(1UF)
90209-08295-00
Unavailable
20
BOLT
90109-086E4-00
Unavailable
21
BRKT, SUB ASSEMBLY LEFT (LT)
3CV-2740A-00-00
Unavailable
22
BRKT, SUB ASSEMBLY RIGH (RT)
3CV-2740E-00-00
Unavailable
23
BUSH, SPEC''L NYLON
90386-20130-00
Unavailable
24
BRACKET 4
36Y-2741L-00-00
Unavailable
25
SCREW, PAN HEAD(62X)
97885-05010-00
Unavailable
26
DAMPER, FOOTREST 2
36Y-27424-01-00
Unavailable
27
COLLAR
90387-10048-00
Unavailable
28
BOLT (3XF1)
90110-08221-00
Unavailable
29
BOLT, WASHER BASED(4KM)
90105-10778-00
Unavailable
30
NUT, SPEC''L SHAPE
90179-10276-00
Unavailable
31
WASHER, PLATE (2H7)
90201-10669-00
Unavailable
32
RR FOOTREST ASSEMBLY 1
29L-27430-00-00
Unavailable
33
. COVER, RR FOOTREST
22N-27433-00-00
Unavailable
34
SCREW, PAN HEAD(3LA)
98517-05010-00
Unavailable
35
RR FOOTREST ASSEMBLY 2
29L-27440-00-00
Unavailable
36
. COVER, RR FOOTREST
22N-27433-00-00
Unavailable
37
SCREW, PAN HEAD(3LA)
98517-05010-00
Unavailable
38
NUT, FLANGE(3BM)
95704-10500-00
Unavailable
