Description

Price

1

STOPPER, SCREW

5VK-18127-00-00

Unavailable

2

SEAL, OIL (30X)

93102-12321-00

$12.49

3

WASHER

90201-12588-00

$7.49

4

SHIFT SHAFT ASY. 1

1TX-18101-02-00

Unavailable

5

SPRING, TORSION

90508-32142-00

$5.60

6

. COLLAR

90387-114K8-00

Unavailable

7

WASHER, PLATE (353)

90201-12575-00

$8.49

8

CIRCLIP

99006-10600-00

$9.49

9

PEDAL, SHIFT

36Y-18111-00-00

Unavailable

10

COVER, DUST

2H9-18154-00-00

$5.49

11

COVER, CHANGE PEDAL

132-18113-01-00

$7.99

12

ARM, SHIFT

1TX-18112-00-00

Unavailable

13

COVER, DUST

2H9-18154-00-00

$5.49

14

BOLT, FLANGE

95817-06020-00

$3.81

15

ROD, SHIFT

36Y-18115-00-00

$8.99

16

NUT (2H9)

90170-06228-00

Unavailable

17

NUT(650)

95380-06700-00

Unavailable

18

WASHER, PLATE (5K7)

90201-124E4-00

Unavailable

19

CIRCLIP(10Y)

99009-12400-00

Unavailable

20

OIL SEAL

93109-12075-00

Unavailable

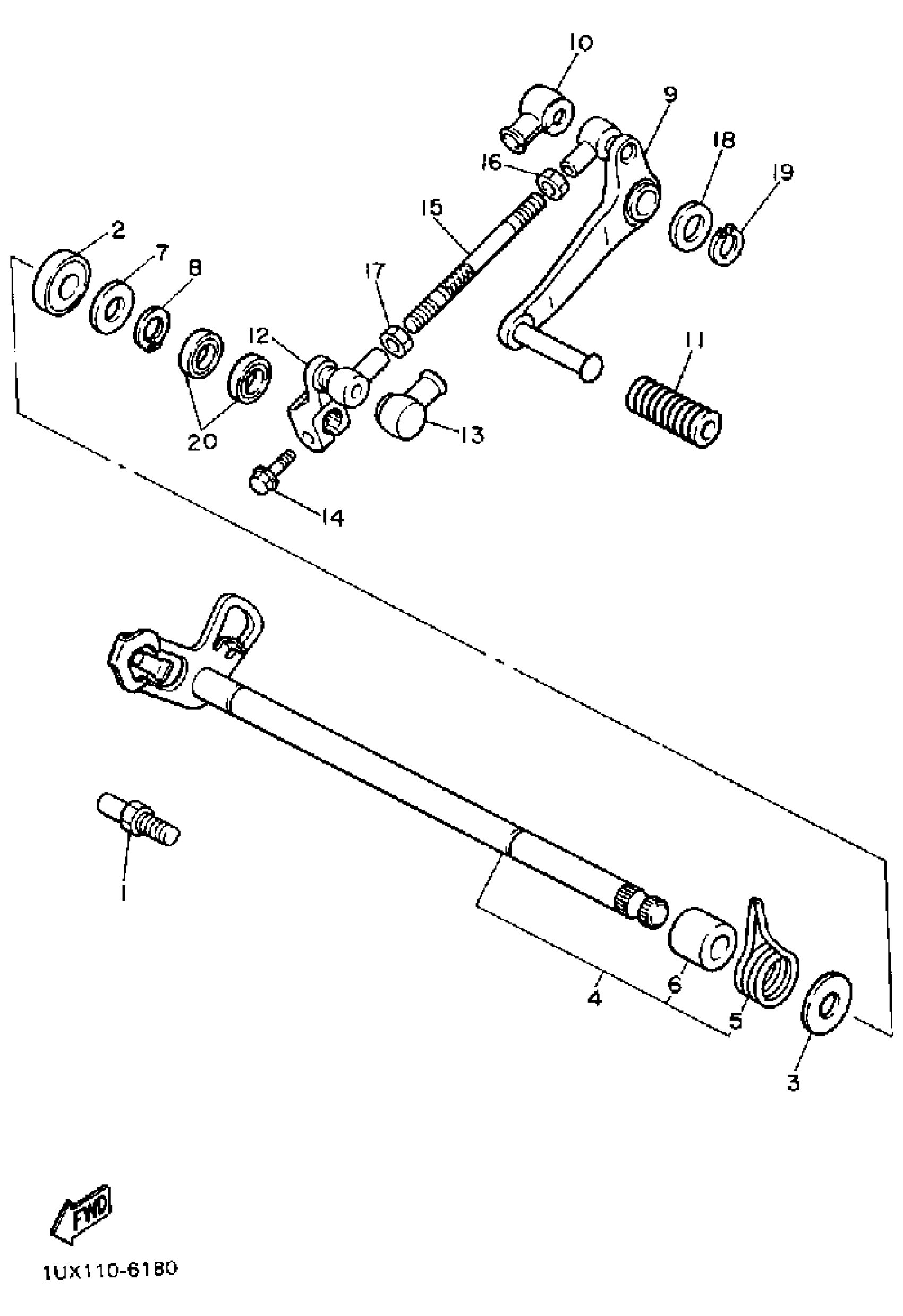

Yamaha FJ1200WC (FJ1200 CA) 1989 SHIFT SHAFT Diagram

STOPPER, SCREW

SEAL, OIL (30X)

WASHER

SHIFT SHAFT ASY. 1

SPRING, TORSION

. COLLAR

WASHER, PLATE (353)

CIRCLIP

PEDAL, SHIFT

COVER, DUST

COVER, CHANGE PEDAL

ARM, SHIFT

COVER, DUST

BOLT, FLANGE

ROD, SHIFT

NUT (2H9)

NUT(650)

WASHER, PLATE (5K7)

CIRCLIP(10Y)

OIL SEAL
