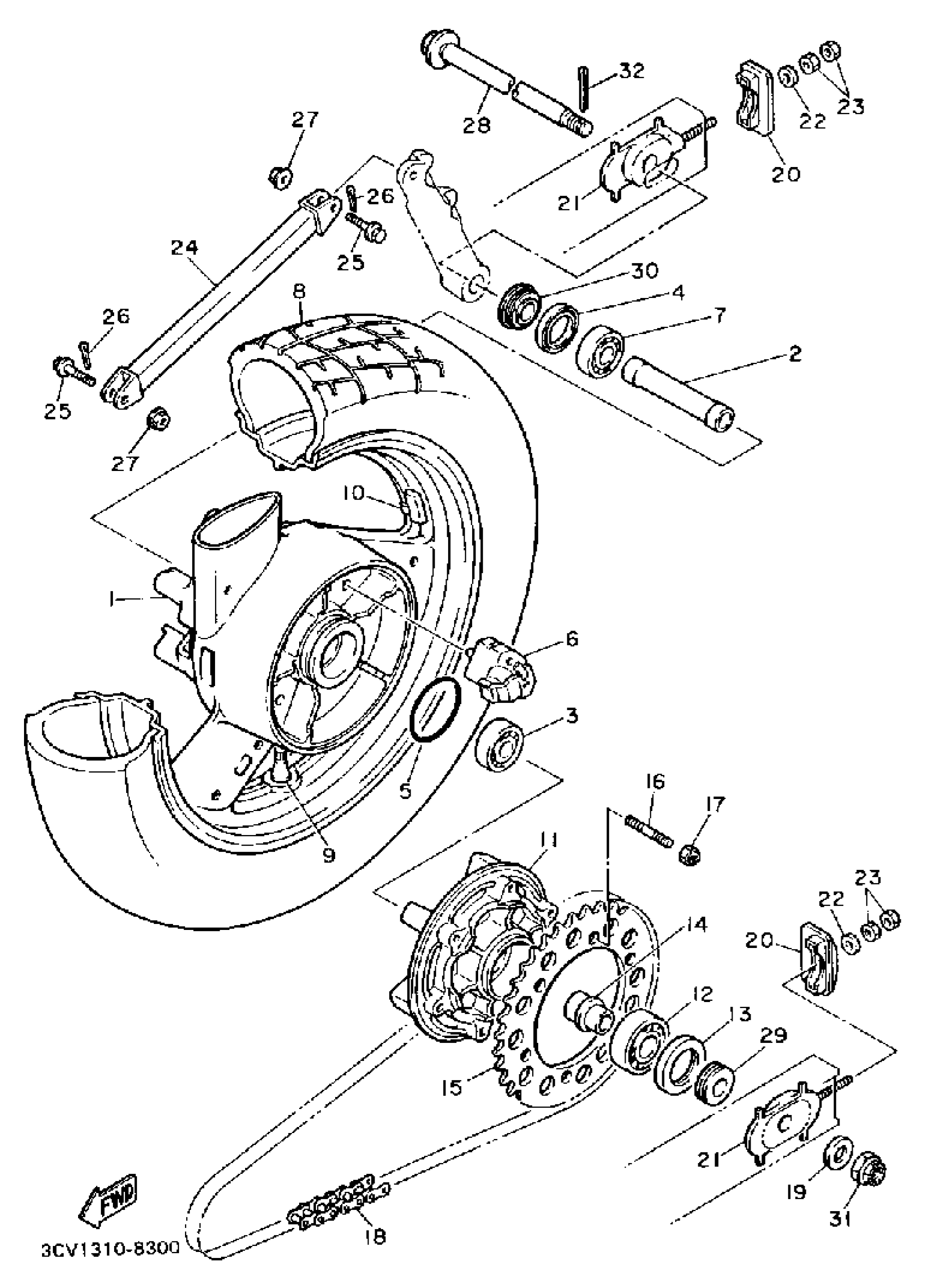

Yamaha FJ1200WC (FJ1200 CA) 1989 REAR WHEEL Diagram

#

Description
Price

1

WHEEL, CAST REAR

3CV-25338-00-WG

Unavailable

2

SPACER(3BC)

90560-20339-00

$26.99

3

BEARING(3BC)

93306-30437-00

$66.99

4

OIL SEAL(3BC)

93106-40027-00

$15.99

5

O-RING(2HJ)

93210-65752-00

$21.99

6

DAMPER

2GH-25364-00-00

$44.99

7

BEARING(3BC)

93306-30437-00

$66.99

8

150/80V16 DUN V250 K275

94115-165X7-00

Unavailable

9

VALVE, RIM(2GH)

93900-00030-00

$16.99

10

BALANCER, WHEEL

5MT-25398-00-00

$17.49

10

BALANCER, WHEEL

5MT-25398-10-00

$17.49

10

BALANCER, WHEEL

5MT-25398-20-00

Unavailable

11

CLUTCH, HUB

36Y-25366-01-00

Unavailable

12

BRG,R-B 6305ZZ 62MM 232G (6A5)

93306-305U0-00

Unavailable

13

OIL SEAL(3BC)

93106-42026-00

$14.99

14

COLLAR, WHEEL

36Y-25377-00-00

Unavailable

15

SPROCKET, DRIVN 40T

1TX-25440-20-00

Unavailable

16

BOLT, STUD(1TX)

90116-10485-00

Unavailable

17

NUT, SELF-LOCKING

90185-10170-00

Unavailable

18

CHAIN

94581-78110-00

Unavailable

19

WASHER, PLATE (5K7)

90201-18264-00

Unavailable

20

PULLER, CHAIN 2

36Y-25389-00-00

Unavailable

21

PULLER, CHAIN 1

36Y-25388-01-00

Unavailable

22

WASHER, PLAIN

92990-08200-00

Unavailable

23

NUT(6L2)

95333-08600-00

Unavailable

24

BAR, TENSION

36Y-25371-00-00

Unavailable

25

BOLT, WASHER BASED(47X)

90105-08321-00

Unavailable

26

PIN, COTTER

91490-20025-00

Unavailable

27

NUT, FLANGE

95704-08500-00

Unavailable

28

AXLE, WHEEL

36Y-25381-00-00

Unavailable

29

COLLAR

90387-203U4-00

Unavailable

30

COLLAR(3BC)

90387-203U5-00

Unavailable

31

NUT, CASTLE

90171-18043-00

Unavailable

32

PIN, COTTER

91490-40045-00

Unavailable
