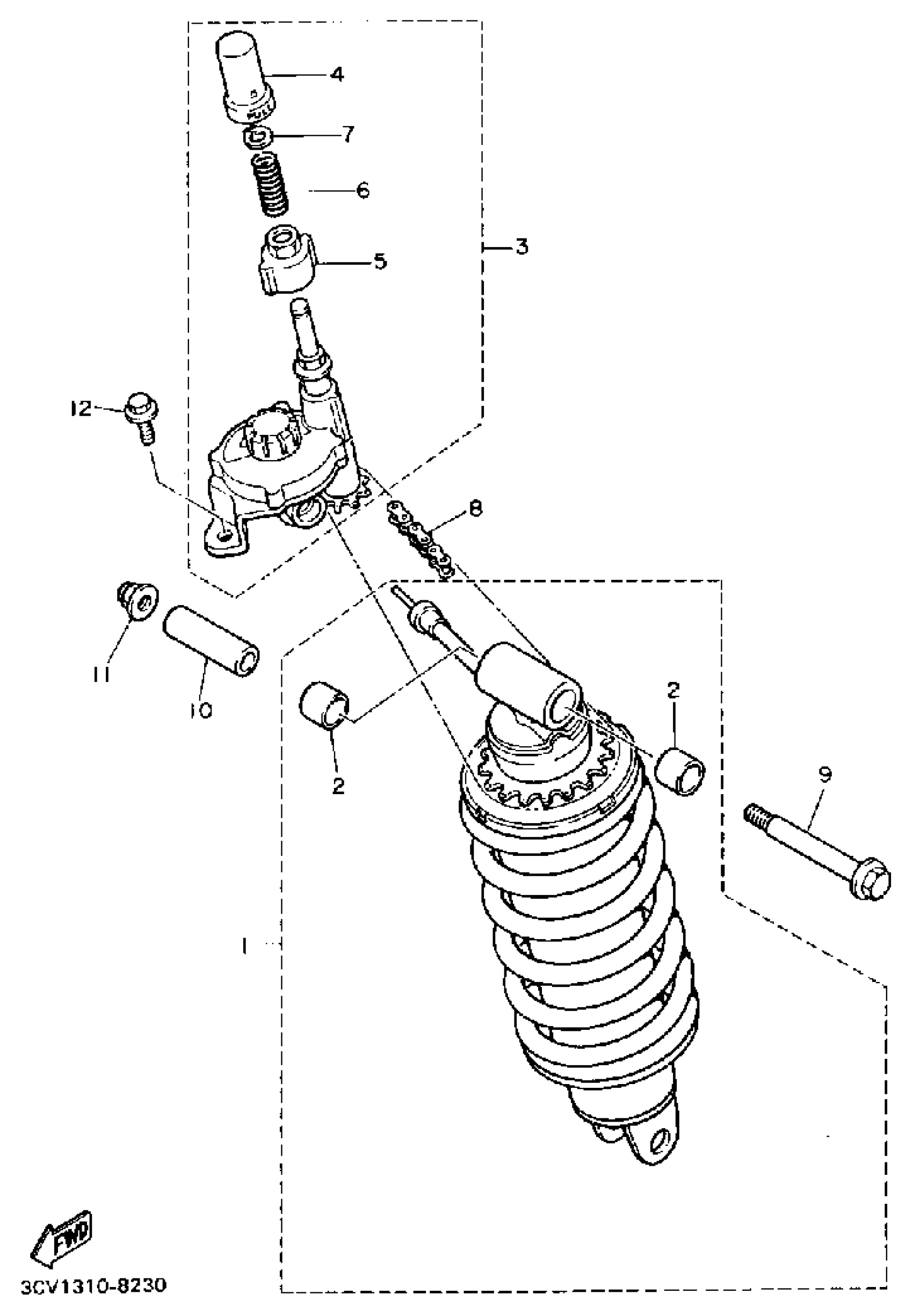

Yamaha FJ1200WC (FJ1200 CA) 1989 REAR SHOCKS Diagram

#

Description
Price

1

SHK/ABS ASY,REAR

3CV-22210-01-00

Unavailable

2

BUSH, BIMETAL FORMED (5X6)

90384-18157-00

$10.96

3

CONTROL PANEL ASSEMBLY

36Y-22460-02-00

Unavailable

4

. COVER, DUST

36Y-22936-00-00

Unavailable

5

. COVER, HEAD

36Y-22913-00-00

Unavailable

6

. SPRING, COMPRESSION

90501-061A3-00

Unavailable

7

CIRCLIP(22K)

99080-05600-00

$5.75

8

CHAIN

36Y-22269-00-00

Unavailable

9

BOLT, WASHER BASED (26H)

90105-10250-00

Unavailable

10

COLLAR (26H)

90387-124H0-00

$13.86

11

NUT, SELF-LOCKING

90185-10170-00

$7.46

12

BOLT, FLANGE(2UJ)

95024-08020-00

$6.22
