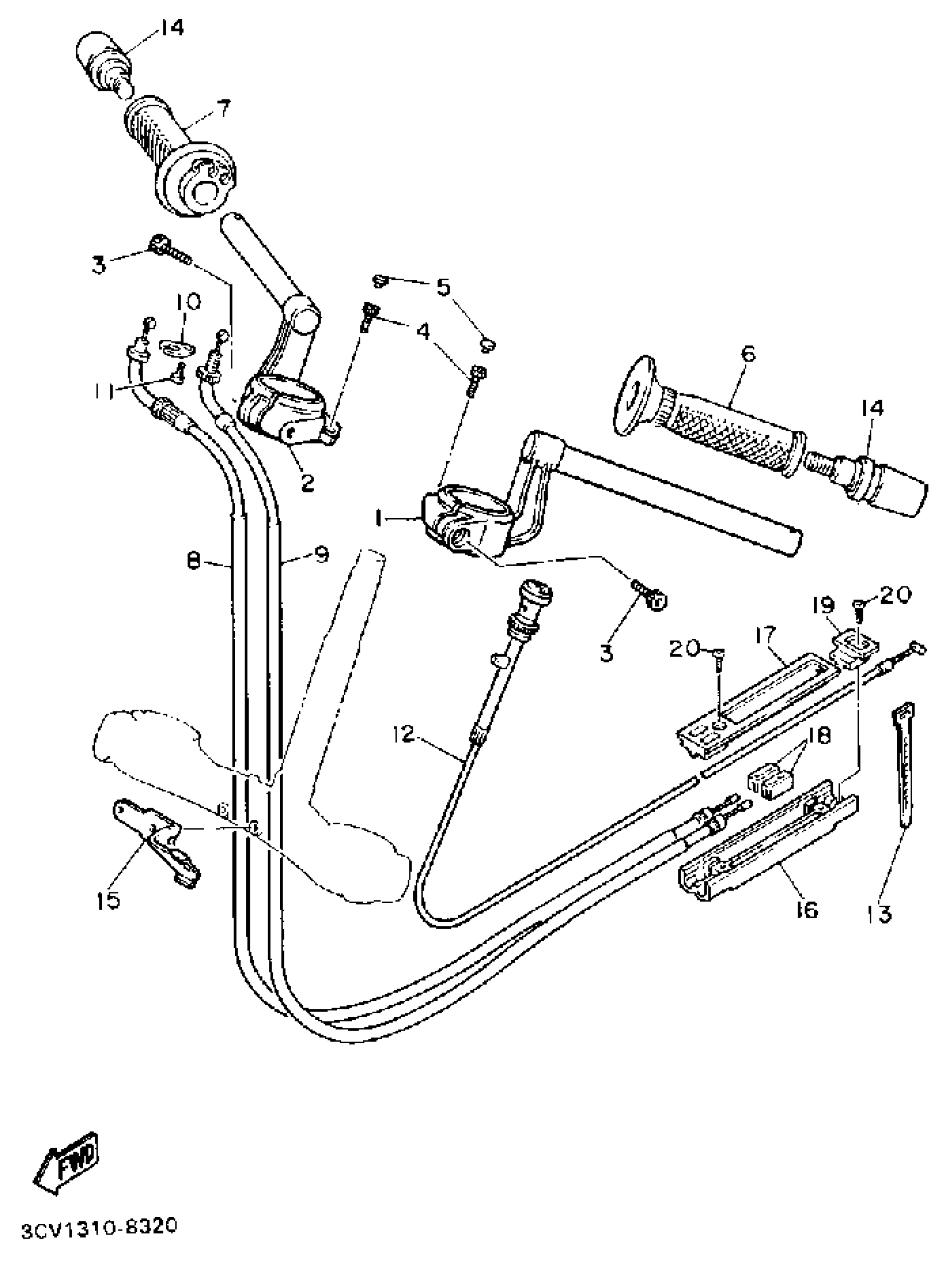

Yamaha FJ1200WC (FJ1200 CA) 1989 HANDLEBAR CABLE Diagram

#

Description
Price

1

HANDLEBAR LH

3XW-26121-00-00

Unavailable

2

HANDLEBAR RH

3XW-26122-00-00

Unavailable

3

BOLT, SOCKET

91317-08030-00

$8.49

4

BOLT,SOCKET

91317-06016-00

$1.25

5

PLUG

90338-05010-00

$8.49

6

GRIP (L.H)

31A-26241-00-00

$37.99

7

GRIP ASSY

36Y-26240-00-00

Unavailable

8

CABLE, THROTTLE 1

36Y-26311-01-00

Unavailable

9

CABLE, THROTTLE 2

36Y-26312-01-00

Unavailable

10

HOLDER

5H0-26393-00-00

$7.99

11

GASKET, EXHAUST

98507-05008-00

$3.55

12

STARTER CABLE ASSY

1TX-26330-00-00

Unavailable

13

CLAMP(4FM)

90464-15195-00

$4.41

14

END, GRIP

36Y-26246-00-00

$51.99

15

BRACKET, HORN

3CV-21343-00-00

Unavailable

16

CONNECTOR, CABLE

36Y-26261-00-00

Unavailable

17

CAP, CABLE CONNECTOR

36Y-26262-00-00

Unavailable

18

SLIDER, THROTTLE

26H-26244-01-00

Unavailable

19

CAP

36Y-26272-00-00

Unavailable

20

SCREW, TAPPING

90167-03053-00

Unavailable
