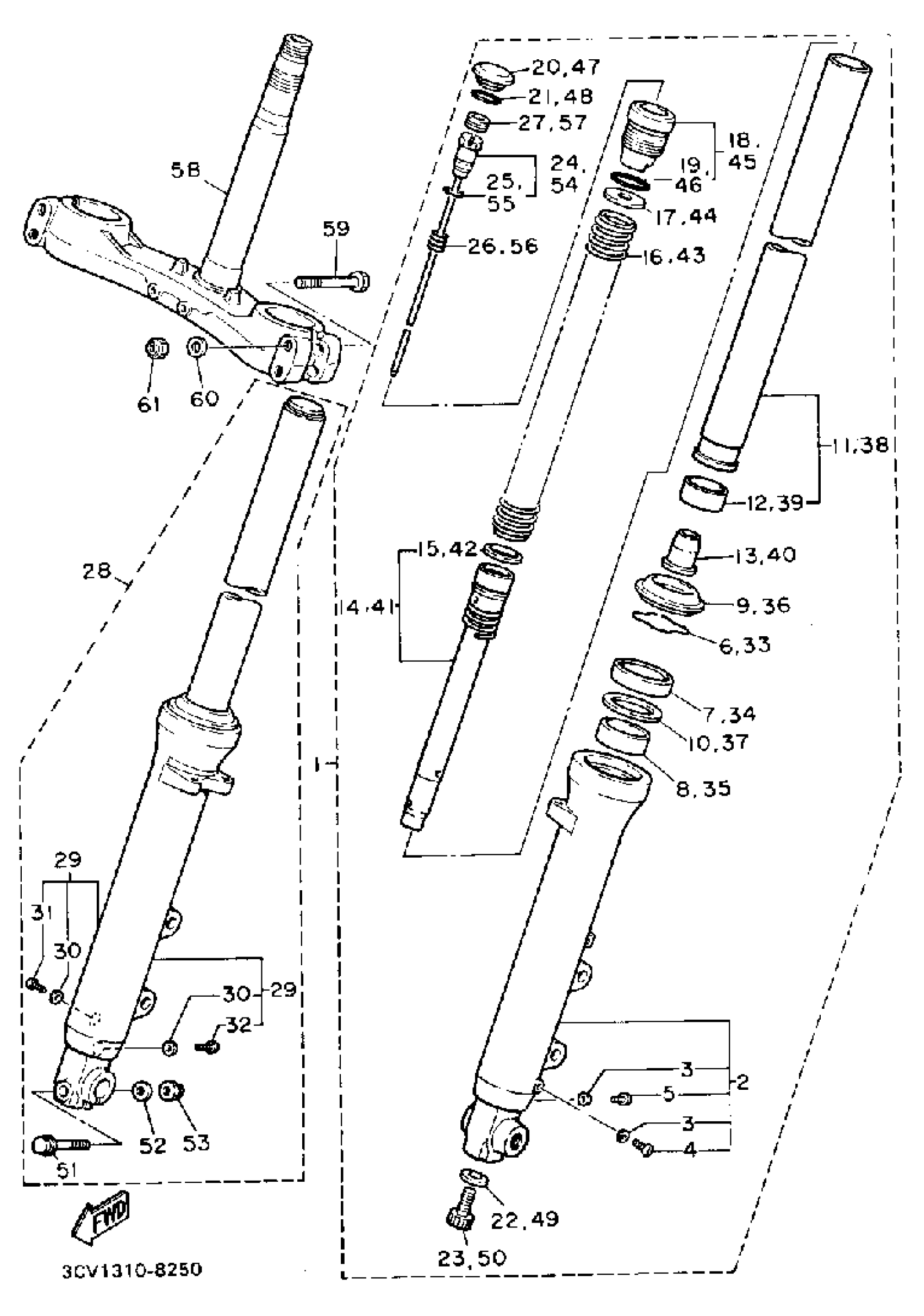

Yamaha FJ1200WC (FJ1200 CA) 1989 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSEMBLY L (L.H.)

3CV-23102-00-00

Unavailable

2

. TUBE, OUTER 1

3CV-23126-00-00

Unavailable

3

GASKET, DRAIN PLUG

122-23129-00-00

$7.99

4

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

5

. BOLT, HEX SCKT HEAD

1TX-23181-00-00

Unavailable

6

CLIP, OIL SEAL

26H-23156-00-00

$7.99

7

OIL SEAL

3SP-23145-L0-00

$29.99

8

METAL, SLIDE 1

4FM-23125-40-00

$33.99

9

SEAL, DUST

3XV-23144-50-00

Unavailable

10

WASHER, OIL SEAL

36Y-23146-10-00

$27.99

11

. INNER TUBE 1

3CV-23110-00-00

Unavailable

12

BUSH

36Y-23171-00-00

$29.99

13

. SPINDLE, TAPER

36Y-23173-00-00

Unavailable

14

. CYLINDER, FRTFRK

3CV-23170-00-00

Unavailable

15

.. RING, PISTON FRTFRK

36Y-23157-00-00

Unavailable

16

. SPRING, FR FRK HARD

36Y-23141-10-00

Unavailable

17

. WASHER, SPRING UPR

36Y-23149-00-00

Unavailable

18

. CAP

36Y-2319U-01-00

Unavailable

19

.. O-RING

36Y-23147-00-00

Unavailable

20

CAP

36Y-2319W-00-00

Unavailable

21

. GASKET

36Y-23114-00-00

Unavailable

22

GASKET

4V4-23158-L0-00

Unavailable

23

BOLT

4V4-23181-L0-00

Unavailable

24

. ROD

36Y-2330G-01-00

Unavailable

25

. O-RING

36Y-23147-10-00

Unavailable

26

. SPRING, SUB

36Y-23152-00-00

Unavailable

27

. NUT

36Y-23357-00-00

Unavailable

28

FRONT FORK ASSEMBLY R (R.H.)

3CV-23103-00-00

Unavailable

29

. TUBE, OUTER 2

3CV-23136-00-00

Unavailable

30

GASKET, DRAIN PLUG

122-23129-00-00

$7.99

31

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

32

. BOLT, HEX SCKT HEAD

1TX-23181-00-00

Unavailable

33

CLIP, OIL SEAL

26H-23156-00-00

$7.99

34

OIL SEAL

3SP-23145-L0-00

$29.99

35

METAL, SLIDE 1

4FM-23125-40-00

$33.99

36

SEAL, DUST

3XV-23144-50-00

Unavailable

37

WASHER, OIL SEAL

36Y-23146-10-00

$27.99

38

. INNER TUBE 1

3CV-23110-00-00

Unavailable

39

BUSH

36Y-23171-00-00

$29.99

40

. SPINDLE, TAPER

36Y-23173-00-00

Unavailable

41

. CYLINDER, FRTFRK

3CV-23170-00-00

Unavailable

42

.. RING, PISTON FRTFRK

36Y-23157-00-00

Unavailable

43

. SPRING, FR FRK HARD

36Y-23141-10-00

Unavailable

44

. WASHER, SPRING UPR

36Y-23149-00-00

Unavailable

45

. CAP

36Y-2319U-01-00

Unavailable

46

.. O-RING

36Y-23147-00-00

Unavailable

47

CAP

36Y-2319W-00-00

Unavailable

48

. GASKET

36Y-23114-00-00

Unavailable

49

GASKET

4V4-23158-L0-00

Unavailable

50

BOLT

4V4-23181-L0-00

Unavailable

51

BOLT, FLANGE

95817-08055-00

Unavailable

52

.. WASHER, PLATE

92990-08600-00

Unavailable

53

NUT, U

95617-08100-00

Unavailable

54

. ROD

36Y-2330G-01-00

Unavailable

55

. O-RING

36Y-23147-10-00

Unavailable

56

. SPRING, SUB

36Y-23152-00-00

Unavailable

57

. NUT

36Y-23357-00-00

Unavailable

58

UNDER BRACKET

36Y-23340-00-00

Unavailable

59

BOLT

97021-08065-00

Unavailable

60

.. WASHER, PLATE

92990-08600-00

Unavailable

61

NUT, U

95617-08100-00

Unavailable
