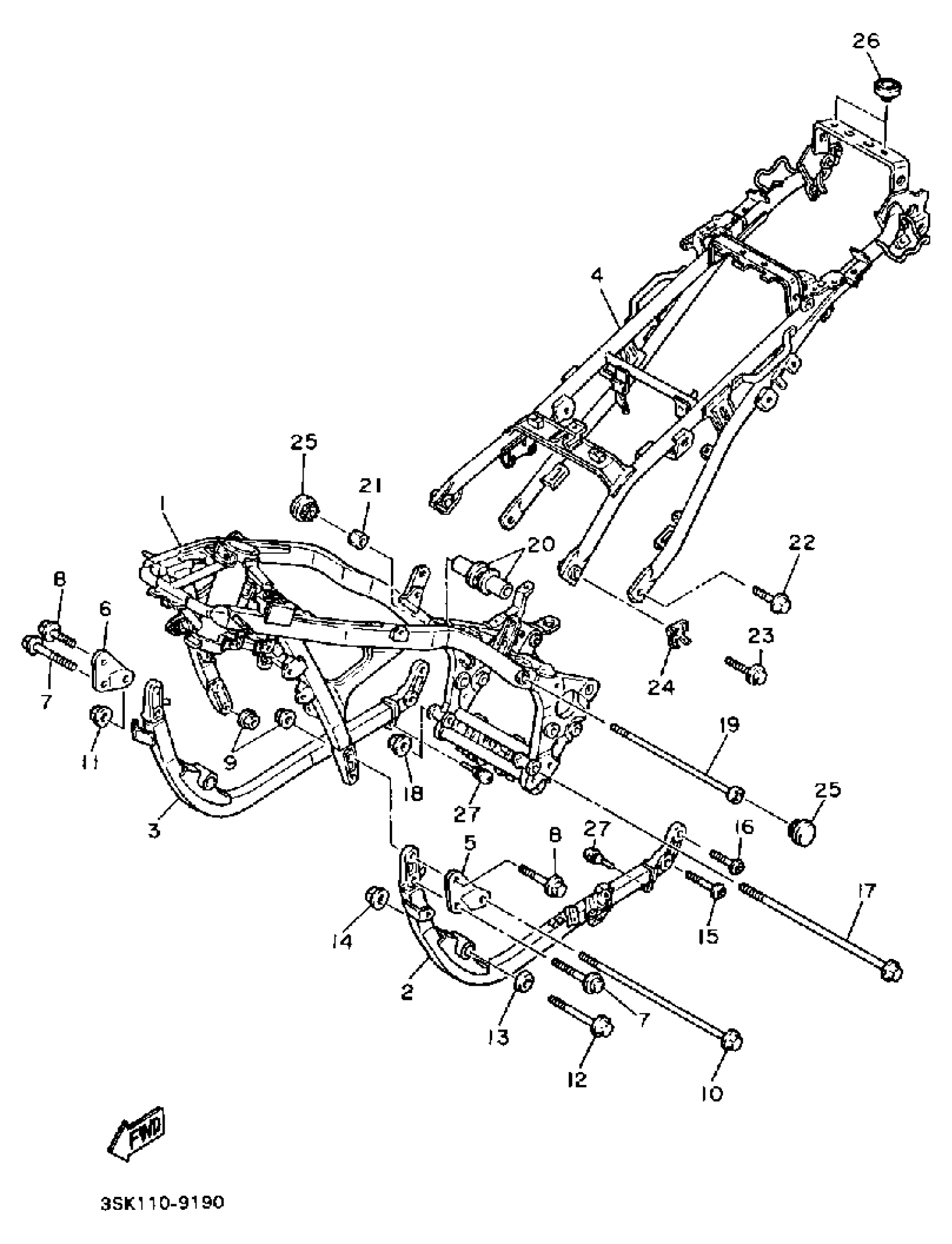

Yamaha FJ1200WC (FJ1200 CA) 1989 FRAME CALIFORNIA MODEL ONLY Diagram

#

Description
Price

1

FRAME

3SK-21110-00-35

Unavailable

2

TUBE, DOWN

3SK-21140-00-35

Unavailable

3

DOWN TUBE COMP.2

3SK-21150-00-35

Unavailable

4

FRAME, REAR

3CV-21190-00-33

Unavailable

5

STAY, ENGINE 2

36Y-21315-00-00

Unavailable

6

STAY, ENGINE 3

36Y-21316-00-00

Unavailable

7

BOLT, WASHER BASED(36Y)

90105-08310-00

$5.60

8

BOLT, FLANGE

95817-08035-00

$9.49

9

NUT(55X)

90179-08491-00

$8.49

10

BOLT, WASHER BASED(36Y)

90105-10313-00

Unavailable

11

NUT(4KG)

90179-10658-00

$9.49

12

BOLT, WASHER BASED(36Y)

90105-10312-00

$5.60

13

WASHER, CONICAL SPR

90208-10039-00

Unavailable

14

NUT(4KG)

90179-10658-00

$9.49

15

SCREW,SPEC'L SHAPE

90149-08295-00

Unavailable

16

BOLT (3XF1)

90110-08220-00

Unavailable

17

BOLT, WASHER BASED(4EB)

90105-12787-00

Unavailable

18

NUT(3EF)

90179-12657-00

Unavailable

19

BOLT, HEX SKT HEAD

90110-10073-00

Unavailable

20

COLLAR

90387-101V2-00

Unavailable

21

NUT

90179-10013-00

Unavailable

22

SCREW, SPEC''L SHAPE

90149-10276-00

Unavailable

23

BOLT (583)

90101-10303-00

Unavailable

24

WASHER, LOCK

36Y-21491-00-00

Unavailable

25

CAP ASSEMBLY

36Y-21470-00-00

Unavailable

26

PAD, SEAT

1L9-24741-00-00

Unavailable

27

PLUG, SPEC''L SHAPE

90338-04209-00

Unavailable
