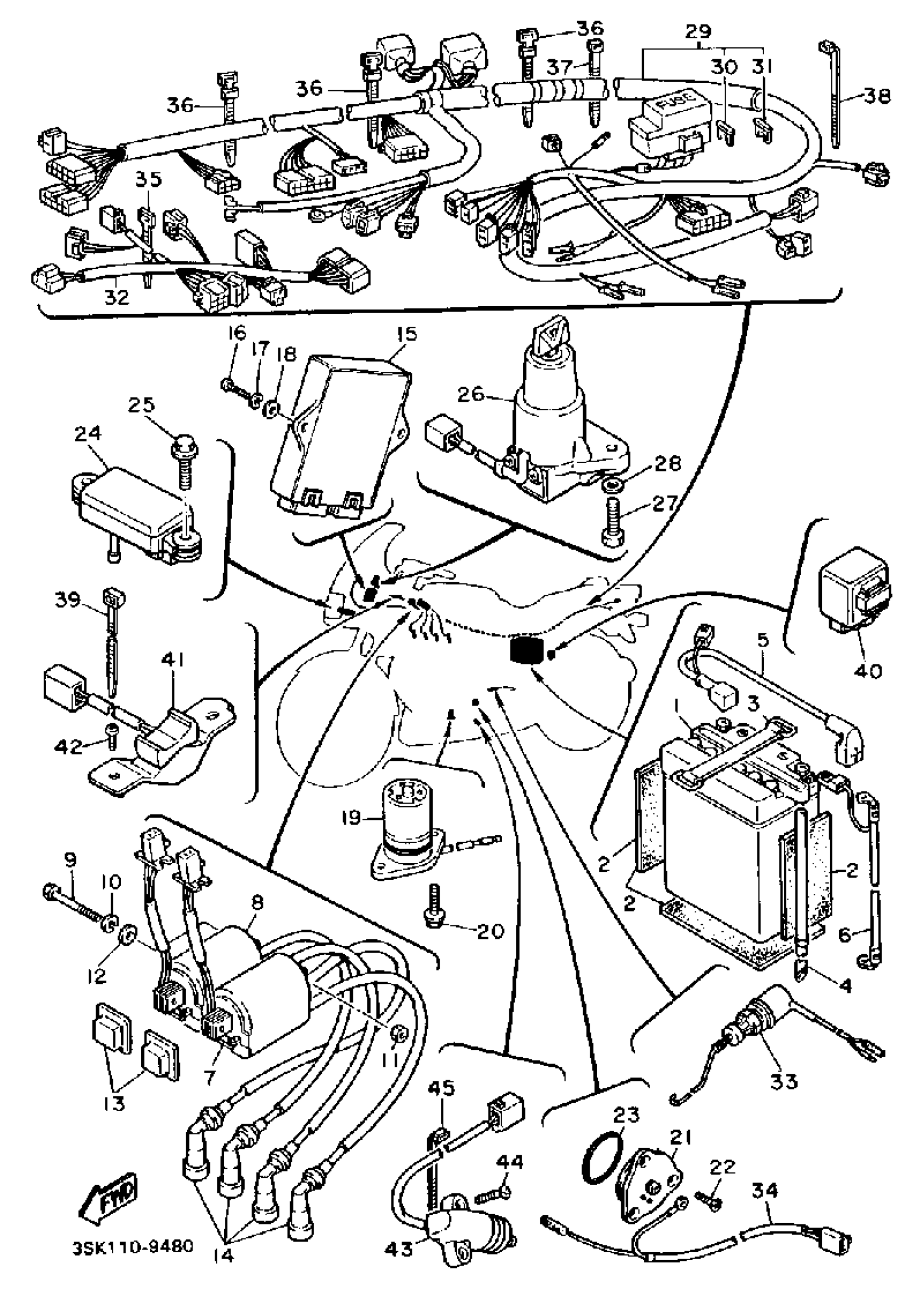

Yamaha FJ1200WC (FJ1200 CA) 1989 ELECTRICAL 2 Diagram
#
1
YB14LA2 YUASA BATTERY
YB1-4LA20-00-00
Unavailable
5
WIRE, PLUS LEAD
1TX-82115-00-00
Unavailable
6
WIRE,MINUS LEAD
3XW-82116-00-00
Unavailable
9
BOLT(62J)
97013-06070-00
Unavailable
10
WASHER, SPRING
92995-06100-00
Unavailable
11
NUT, HEXAGON
95380-06600-00
Unavailable
13
DAMPER, IGNITION COIL
4U8-82317-00-00
Unavailable
15
IGNITOR UNIT ASSEMBLY 1
3SK-82305-01-00
Unavailable
16
SCREW, PAN
98507-06014-00
Unavailable
17
WASHER, SPRING
92995-06100-00
Unavailable
18
WASHER, PLAIN (646)
92990-06600-00
Unavailable
19
OIL LEVEL GAUGE ASSY
4H7-85720-02-00
Unavailable
20
BOLT, WASHER BASED(JA9)
90105-06696-00
Unavailable
21
NEUTRAL SWITCH ASSY
1L9-82540-00-00
Unavailable
22
SCREW, FLAT
98707-05012-00
Unavailable
23
O-RING (371)
93210-29196-00
Unavailable
24
SENSOR, PRESSURE
22N-82380-10-00
Unavailable
25
BOLT, WITH WASHER (30X)
90119-06096-00
Unavailable
26
MAIN SWITCH STEERING LOCK
3JV-82501-00-00
Unavailable
27
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
Unavailable
28
WASHER, PLAIN (646)
92990-06600-00
Unavailable
29
WIRE HARNESS ASSEMBLY
3SK-82590-00-00
Unavailable
30
FUSE (12V 30A)
1AE-82151-00-00
Unavailable
31
FUSE (12V 15A)
36Y-82151-00-00
Unavailable
32
WIRE HARNESS ASSEMBLY 2
3SK-82580-00-00
Unavailable
33
STOP SWITCH ASSEMBLY
36Y-82530-02-00
Unavailable
34
WIRE, SUB LEAD
36Y-82509-00-00
Unavailable
35
BAND, SWITCH CORD
25G-83936-01-00
Unavailable
36
CLAMP
5Y9-12491-00-00
Unavailable
37
BAND
1UA-82591-00-00
Unavailable
38
CLAMP(4FM)
90464-15195-00
Unavailable
38
CLAMP(4FM)
90464-15195-00
Unavailable
39
CLAMP(MF1)
90464-15152-00
Unavailable
40
CONTROL UNIT ASSY
42H-85740-00-00
Unavailable
41
SWITCH
3TJ-83964-10-00
Unavailable
42
SCREW, BINDING (8J0)
90154-05005-00
Unavailable
43
SWITCH, SIDE STAND
33E-82566-00-00
Unavailable
44
SCREW, FLAT
98707-05016-00
Unavailable
45
CLAMP(4FM)
90464-15195-00
Unavailable
