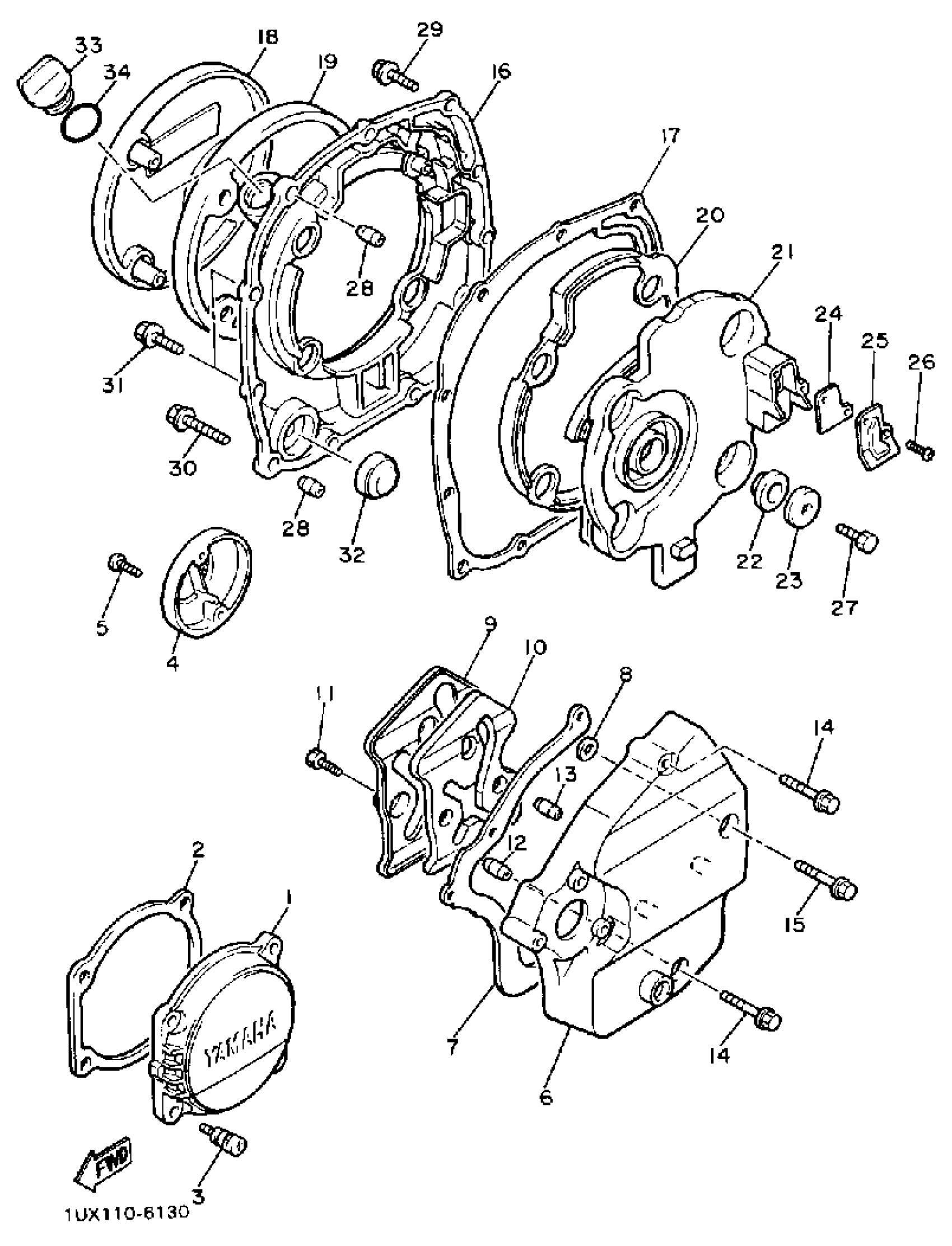

Yamaha FJ1200WC (FJ1200 CA) 1989 CRANKCASE COVER Diagram

COVER, OIL PUMP

5EA-15416-20-00

Unavailable

RING, RUBBER

33M-15449-00-00

$45.99

BOLT 1

33M-15481-00-00

Unavailable

COVER, OIL PUMP 2

5EA-15426-20-00

$94.99

SCREW, BINDING

98907-05016-00

$8.49

COVER, CRANKCASE L

1TX-15411-01-00

Unavailable

GASKET, CRANKCASE COVER 1

4CR-15451-00-00

$25.99

GASKET

3FA-15467-00-00

$6.99

COVER,CAP 2

1TX-15427-00-00

Unavailable

DAMPER, ENG MOUNT 1ENGINE MOUNT 1

1TX-15316-00-00

Unavailable

SCREW, HEXAGON

90153-06055-00

Unavailable

PIN, DOWEL(3VD)

99530-10114-00

$2.55

PIN, DOWEL(3XW)

91808-16023-00

$8.49

BOLT, SMALL FLANGE

95027-06040-00

$3.28

BOLT, SMALL FLANGE

95027-06050-00

$2.55

CRANKCASE COVER ASSY 2

3XW-W1543-03-00

Unavailable

GASKET, CRANKCASE COVER 2

5WM-15461-02-00

Unavailable

COVER, CAP

36Y-15417-10-00

Unavailable

RING, RUBBER

36Y-15449-00-00

Unavailable

GROMMET

1TX-15367-00-00

Unavailable

BREATHER 1

1TX-15346-00-00

Unavailable

GROMMET

4H7-15486-00-00

Unavailable

WASHER (4H7)

90209-06096-00

Unavailable

GASKET, BREATHER

4CR-15374-00-00

Unavailable

COVER

1TX-15333-00-00

Unavailable

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

BOLT,SOCKET

91317-06012-00

Unavailable

PIN, DOWEL(3VD)

99530-10114-00

$2.55

. BOLT, FLANGE

95027-06020-00

Unavailable

BOLT, SMALL FLANGE

95027-06035-00

Unavailable

BOLT, SMALL FLANGE

95027-06025-00

Unavailable

GAUGE, LEVEL

2H7-15361-00-00

Unavailable

PLUG, OIL

2H9-15363-00-00

Unavailable

O-RING(1KT)

93210-27778-00

Unavailable
