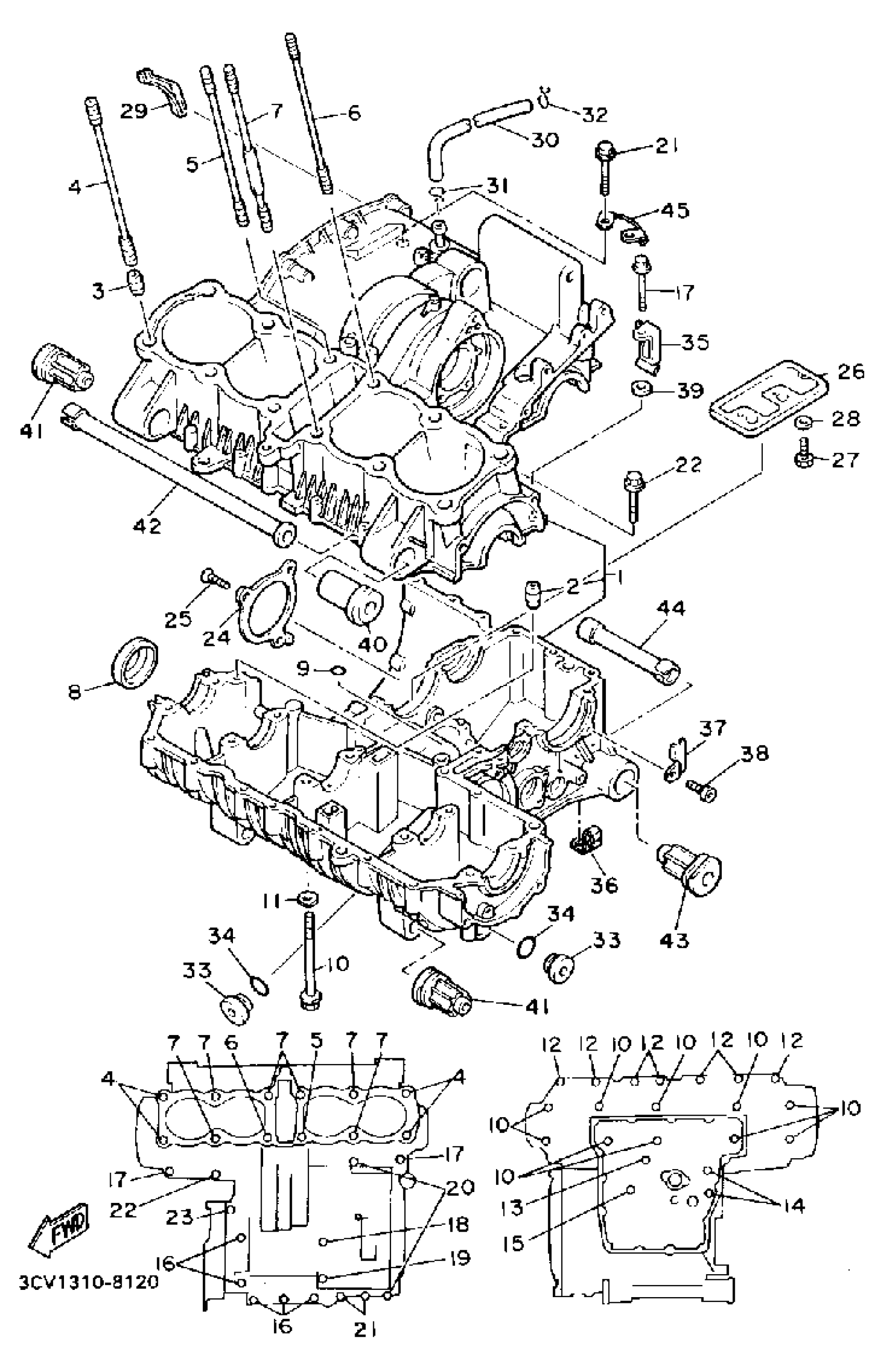

Yamaha FJ1200WC (FJ1200 CA) 1989 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASY

99999-02339-00

Unavailable

2

PIN, DOWEL

99530-12016-00

$4.89

3

PIN, DOWEL

99530-14016-00

$3.80

4

BOLT, STUD(3BC)

90116-10516-00

$10.49

5

BOLT,STUD

90116-10514-00

Unavailable

6

BOLT,STUD

90116-10515-00

Unavailable

7

BOLT, CYLINDER HOLDING 3

3CV-11363-00-00

Unavailable

8

PLUG (4H7)

4H7-15167-10-00

$19.99

9

O-RING

93210-07438-00

$8.49

10

BOLT, FLANGE

95817-08100-00

$5.60

11

WASHER, PLATE (33N)

90201-094G1-00

$9.49

12

BOLT, FLANGE(JN5)

95817-08045-00

$3.69

13

BOLT, FLANGE

95816-06110-00

Unavailable

14

BOLT, FLANGE

95817-06095-00

$1.96

15

BOLT, FLANGE

95817-06040-00

$5.60

16

BOLT, FLANGE

95817-08055-00

Unavailable

17

BOLT, FLANGE

95817-06050-00

Unavailable

18

BOLT, FLANGE

95817-06125-00

Unavailable

19

BOLT, FLANGE

95817-06070-00

Unavailable

20

BOLT, FLANGE

95817-06065-00

Unavailable

21

BOLT, FLANGE

95817-06055-00

Unavailable

22

BOLT, FLANGE

95817-06040-00

$5.60

23

BOLT, FLANGE

95817-06030-00

Unavailable

24

PLATE, BEARING COVER

36Y-15383-01-00

Unavailable

25

SCREW, COUNTERSUNK (21V)

90151-06025-00

Unavailable

26

PLATE, OIL GUIDE

36Y-15412-00-00

Unavailable

27

BOLT (682)

97095-05010-00

Unavailable

28

WASHER, PLAIN (646)

92990-05600-00

Unavailable

29

GROMMET

1TX-15365-00-00

Unavailable

30

PIPE, BREATHER 1

36Y-11166-00-00

Unavailable

31

CLIP (371)

90467-14015-00

Unavailable

32

CLIP (371)

90467-14015-00

Unavailable

33

PLUG

4H7-15189-00-00

Unavailable

34

O-RING (25G)

93210-20573-00

Unavailable

35

CLAMP

90465-10027-00

Unavailable

36

CLAMP

(90465-08252-00)

Unavailable

37

CLAMP

90465-08056-00

Unavailable

38

BOLT,SOCKET

91317-06010-00

Unavailable

39

WASHER(6TA)

92907-06600-00

Unavailable

40

COLLAR

90387-100L4-00

Unavailable

41

DAMPER, ENGINE MOUNT 3

36Y-15336-02-00

Unavailable

42

SPACER, ENGINE MOUNT

5UX-15317-00-00

Unavailable

43

DAMPER, ENGINE MOUNT 2 (2H7-15326-01-00)

36Y-15326-00-00

Unavailable

44

SPACER, ENG MOUNT

36Y-15327-00-00

Unavailable

45

CLAMP

90462-10145-00

Unavailable
