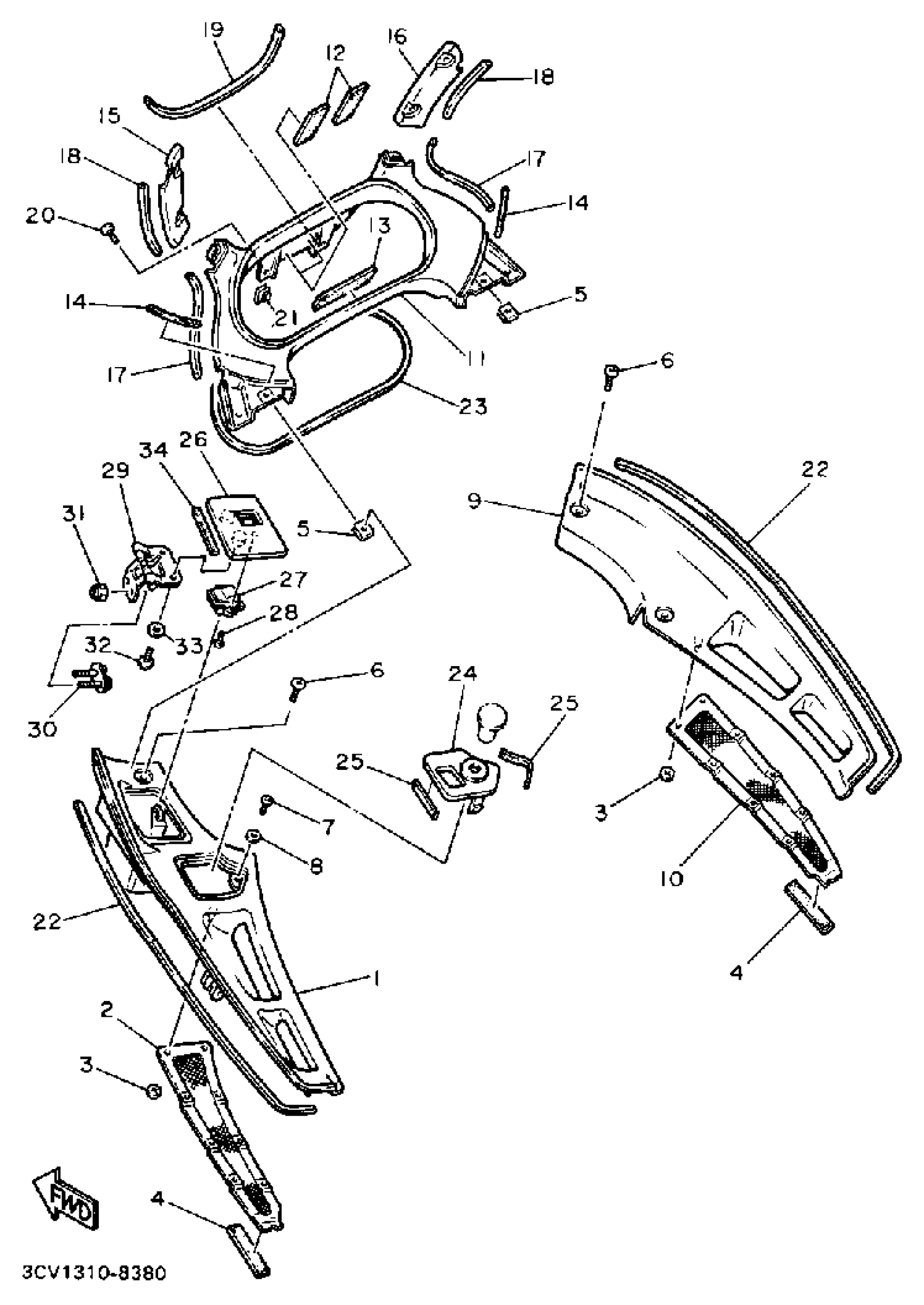

Yamaha FJ1200WC (FJ1200 CA) 1989 COWLING 2 Diagram
#
Description
Price
1
GRILL, AIR OUTLET 1
3CV-2837V-00-00
Unavailable
2
PLATE 1
3CV-28396-00-00
Unavailable
4
DAMPER 2
3FA-21639-00-00
Unavailable
7
SCREW, PAN HEAD
90157-05M19-00
Unavailable
9
GRILL, AIR OUTLET 2
3CV-2837W-00-00
Unavailable
10
PLATE 2
3CV-28397-00-00
Unavailable
11
PANEL, INNER 5
3CV-2836R-00-00
Unavailable
12
DAMPER (RH)
1TX-2834F-00-00
Unavailable
13
DAMPER 5
1TX-2837J-00-00
Unavailable
15
PANEL 1
3CV-2835U-00-00
Unavailable
16
PANEL 2
3CV-2835V-00-00
Unavailable
17
TRIM
13X-28376-00-00
Unavailable
18
TRIM
13X-28376-00-00
Unavailable
19
MOLE 6
3CV-2834H-01-00
Unavailable
22
TRIM
13X-28376-00-00
Unavailable
23
MOLE 4
36Y-28348-00-00
Unavailable
24
COVER
1TX-28365-00-00
Unavailable
25
DAMPER 2
1TX-28227-00-00
Unavailable
26
LID 1
3CV-2839K-00-00
Unavailable
27
LOCK ASSY
1HX-21780-01-00
Unavailable
28
SCREW, PAN TAP.2 SLIT
97707-40610-00
Unavailable
29
HINGE 4
3CV-2849E-00-00
Unavailable
30
BRACKET 1
3CV-2836A-00-00
Unavailable
31
NUT, S/L FLANGE
95607-05200-00
Unavailable
32
SCREW, TAPPING
97707-50610-00
Unavailable
33
WASHER, PLAIN LARGE
92907-05200-00
Unavailable
34
DAMPER
3CV-28372-00-00
Unavailable
