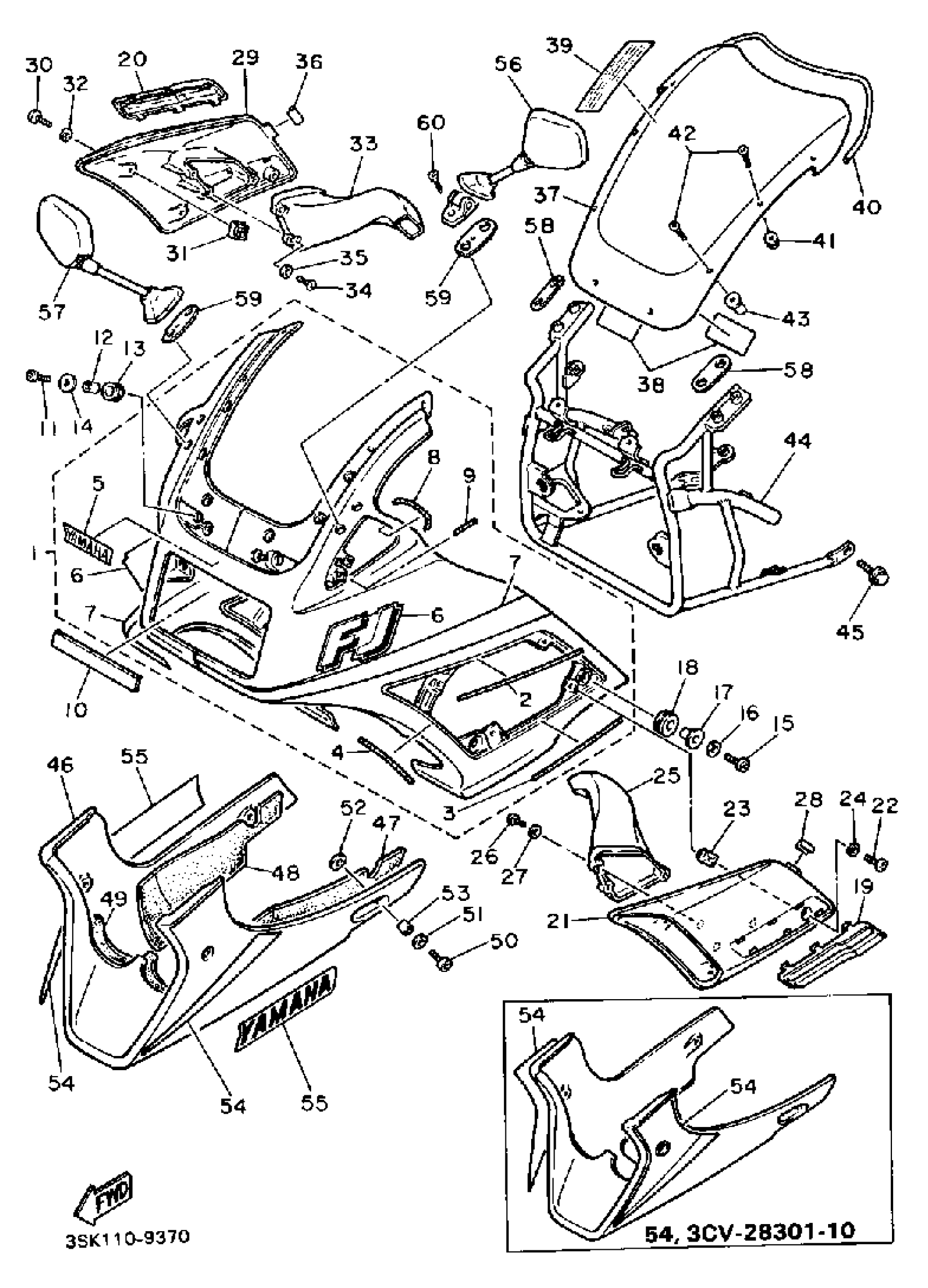

Yamaha FJ1200WC (FJ1200 CA) 1989 COWLING 1 Diagram
#
1
BODY, COWLING
3CV-W2834-01-0X
Unavailable
1
BODY, COWLING
3CV-W2834-01-NA
Unavailable
2
PAD
1TX-28378-00-00
Unavailable
3
DAMPER 6
1TX-2837K-00-00
Unavailable
5
EMBLEM, YAMAHA
99244-00100-00
Unavailable
6
. EMBLEM
3CV-28338-00-00
Unavailable
6
. EMBLEM
3CV-28338-10-00
Unavailable
7
. GRPHC SET, COWLING
3CV-28390-00-00
Unavailable
7
. GRPHC SET, COWLING
3CV-28390-10-00
Unavailable
8
. MOLD 5
3CV-2834G-00-00
Unavailable
9
. MOLD, LEG SHIELD
3CV-28339-00-00
Unavailable
10
DAMPER (R.H)
3CV-2834F-00-00
Unavailable
12
COLLAR
90387-06113-00
Unavailable
13
GROMMET (2N3)
90480-16233-00
Unavailable
14
WASHER, PLATE (J10)
90201-06697-00
Unavailable
16
WASHER, PLAIN (646)
92990-06600-00
Unavailable
17
COLLAR (21X)
90387-093H1-00
Unavailable
18
GROMMET(3BC)
90480-18488-00
Unavailable
19
PROTECTOR 1
3CV-2832M-00-00
Unavailable
20
PROTECTOR 2
3CV-2832N-00-00
Unavailable
21
GRILL, AIR INTAKE 1
3CV-2837N-00-0L
Unavailable
21
GRILL, AIR INTAKE 1
3CV-2837N-00-NA
Unavailable
22
SCREW, BINDING (8J0)
90154-05005-00
Unavailable
23
NUT, SPRING
90183-051A0-00
Unavailable
23
WASHER, PLATE(1KT)
90202-05180-00
Unavailable
24
WASHER, PLATE(1KT)
90202-05180-00
Unavailable
25
DUCT 1
36Y-2838N-00-00
Unavailable
26
SCREW, OVAL HEAD TAPPING
97780-40112-00
Unavailable
27
YBS66-4 WASHER, PLAIN
92990-04200-00
Unavailable
28
SEAL 1
3CV-28218-00-00
Unavailable
29
GRILL, AIR INTAKE 2
3CV-2837R-00-0L
Unavailable
29
GRILL, AIR INTAKE 2
3CV-2837R-00-NA
Unavailable
30
SCREW, BINDING (8J0)
90154-05005-00
Unavailable
31
NUT, SPRING
90183-051A0-00
Unavailable
33
DUCT 2
36Y-2838R-00-00
Unavailable
34
SCREW, OVAL HEAD TAPPING
97780-40112-00
Unavailable
35
YBS66-4 WASHER, PLAIN
92990-04200-00
Unavailable
36
SEAL 1
3CV-28218-00-00
Unavailable
37
WINDSHIELD
3GP-28381-00-00
Unavailable
38
SEAL,2
1JK-21735-00-00
Unavailable
39
LABEL, CAUTION
3CK-2835Y-00-00
Unavailable
40
MOLE 4
36Y-28348-00-00
Unavailable
41
NUT, FLANGE(3GM)
95707-05500-00
Unavailable
42
SCREW, ROUND HEAD(1UX)
90150-05024-00
Unavailable
43
NUT(1UX)
90179-05525-00
Unavailable
44
STAY 2
3SK-28359-00-00
Unavailable
45
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
46
COVER, LOWER
1TX-28385-00-GE
Unavailable
46
COVER, LOWER
1TX-28385-00-NA
Unavailable
47
UNAVAILABLE IN PRICE BOOK
1TX-2848K-10-00
Unavailable
48
SEAT 3
1TX-2848L-01-00
Unavailable
49
SEAT 4
1TX-2848M-00-00
Unavailable
50
BOLT, HEXAGON SOCKET HEAD(1KF)
90110-06104-00
Unavailable
51
WASHER, PLATE
90202-06170-00
Unavailable
52
WASHER, PLATE(31K)
90202-11161-00
Unavailable
53
COLLAR (90387-066J9)
90387-064W1-00
Unavailable
54
GRAHIC SET, LWR CVR
3CV-28301-00-00
Unavailable
54
GRAHIC SET, LWR CVR
3CV-28301-10-00
Unavailable
55
EMBLEM, YAMAHA
99244-00280-00
Unavailable
55
EMBLEM, YAMAHA
99246-00280-00
Unavailable
56
REAR VIEW MIRROR ASSY(LEFT)
3CV-26280-00-00
Unavailable
57
REAR VIEW MIRROR ASSY(RIGHT)
3CV-26290-00-00
Unavailable
58
PLATE, MIRROR FITTING 1
3CV-26298-00-00
Unavailable
59
PLATE, MIRROR FITTING 2
3CV-26299-00-00
Unavailable
60
SCREW, FLAT
98707-06020-00
Unavailable
