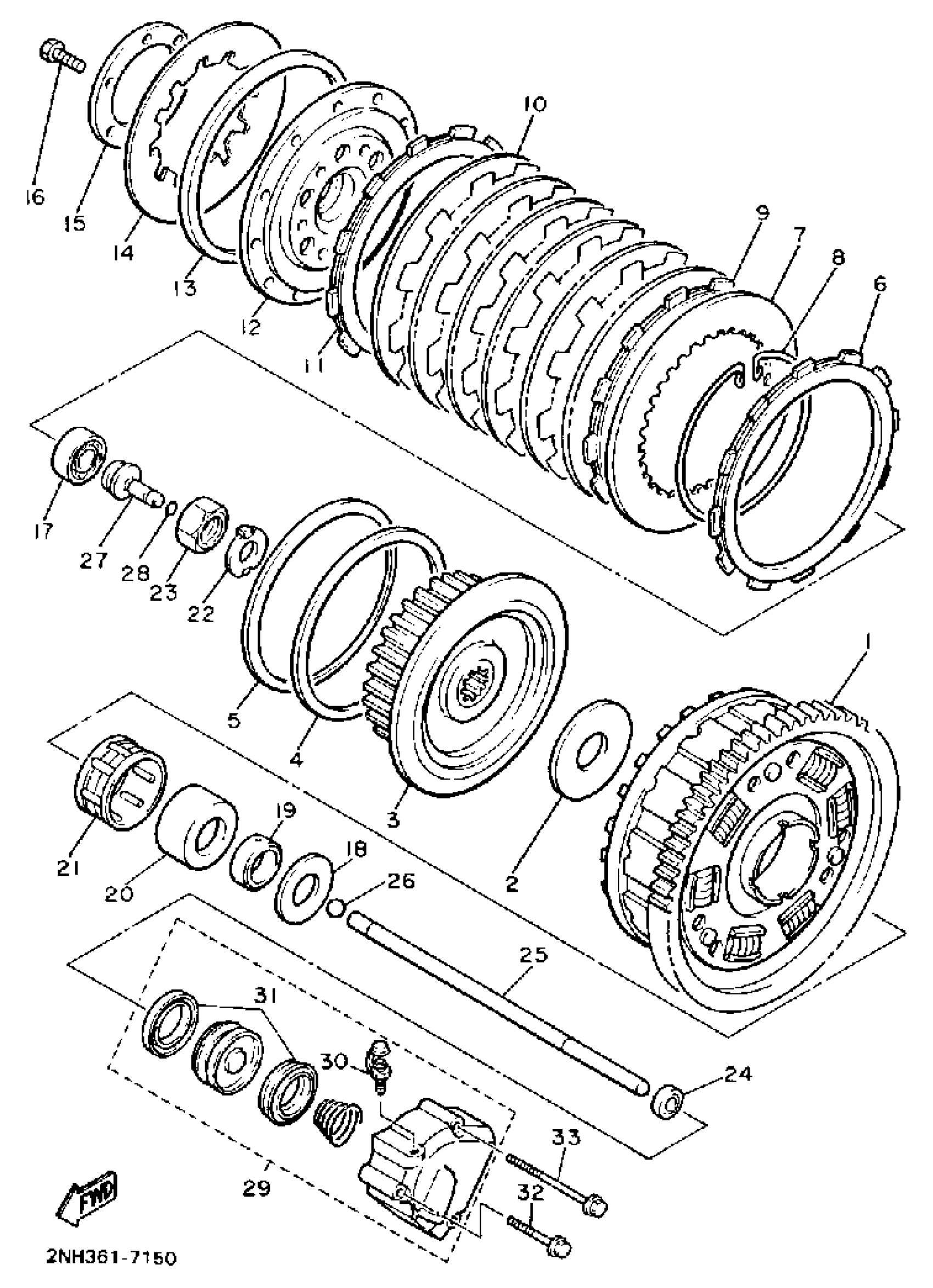

Yamaha FJ1200WC (FJ1200 CA) 1989 CLUTCH Diagram

#

Description
Price

1

PRIMARY DRIVEN GEAR COMP.

5EA-16150-00-00

$385.99

2

PLATE, THRUST 1

36Y-16154-00-00

Unavailable

3

BOSS, CLUTCH

36Y-16371-00-00

Unavailable

4

PLATE, SEAT

36Y-16384-00-00

$28.99

5

SPRING, CLUTCH BOSS

36Y-16383-00-00

$68.99

6

PLATE, FRICTION 2

4XV-16331-00-00

$24.99

7

PLATE, CLUTCH 2

2H7-16325-10-00

$11.99

8

RING, CLUTCH BOSS SPRING SET

2H7-16385-00-00

$27.99

9

PLATE, FRICTION (447)

341-16321-13-00

$23.99

10

PLATE, CLUTCH 2

2H7-16325-10-00

$11.99

11

PLATE, FRICTION 2

4XV-16331-00-00

$24.99

12

PLATE, PRESSURE 1

36Y-16351-00-00

Unavailable

13

HOUSING, SPRING

36Y-16335-00-00

$36.99

14

SPRING, CLUTCH 2

1TX-16334-00-00

$120.99

15

PLATE, PRESSURE 2

1TX-16352-00-00

$37.99

16

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

17

BEARING(2JN)

93306-00315-00

Unavailable

18

WASHER, PLATE

90201-286H8-00

Unavailable

19

COLLAR

90387-284K1-00

Unavailable

20

SPACER 1

36Y-16181-00-00

Unavailable

21

BEARING, CYLINDRICAL(36Y)

93310-350M3-00

Unavailable

22

WASHER, LOCK (26H)

90215-25218-00

Unavailable

23

NUT (26H)

90170-20323-00

Unavailable

24

OIL SEAL(12E)

93109-08061-00

Unavailable

25

ROD,PUSH 2

3CV-16357-00-00

Unavailable

26

BALL (498)

93511-32027-00

Unavailable

27

ROD, PUSH 1

36Y-16356-00-00

Unavailable

28

O-RING (26H)

93210-06632-00

Unavailable

29

PUSH LEVER COMP.

36Y-16381-11-00

Unavailable

30

BLEED SCREW KIT

36Y-W0048-00-00

Unavailable

31

PUSH LEVER SEAL KIT

26H-W0098-00-00

Unavailable

32

BOLT, SMALL FLANGE

95027-06040-00

Unavailable

33

BOLT, WASHER BASED

90105-06306-00

Unavailable
