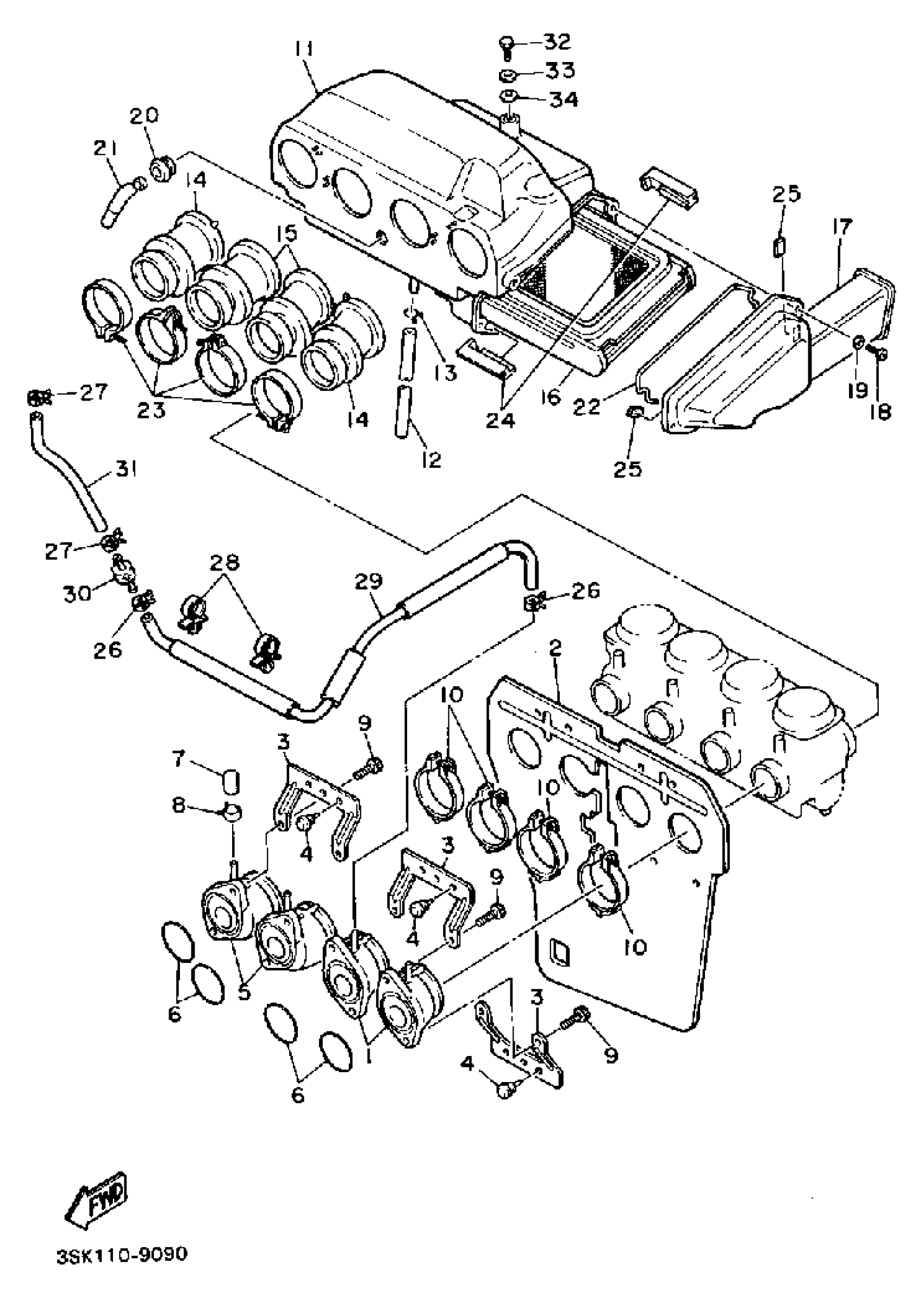

Yamaha FJ1200WC (FJ1200 CA) 1989 AIR FILTER NON CALIFORNIA MODEL Diagram

#

Description

Price

1

JOINT, CARBURETOR 1

36Y-13586-10-00

Unavailable

2

HEAT PROTECTOR 1

3XW-12682-00-00

Unavailable

3

STAY 1

36Y-12637-00-00

Unavailable

4

GROMMET

90480-08395-00

Unavailable

5

JOINT, CARBURETOR 2

36Y-13596-10-00

Unavailable

6

O-RING(36Y)

93210-40659-00

Unavailable

7

PLUG, BLIND

16G-13569-00-00

$7.99

8

CLIP (3G0)

90467-10039-00

$9.49

9

BOLT,SOCKET

91317-06020-00

Unavailable

10

CLAMP, HOSE (90460-52210-00)

90460-52264-00

Unavailable

11

AIR CLNR CASE ASSEMBLY

3CV-14401-00-00

Unavailable

12

HOSE (L370)

90445-112E1-00

$23.99

13

CLIP

90467-090A2-00

$4.41

14

JOINT, AIR CLNR 1

36Y-14453-00-00

Unavailable

15

JOINT, AIR CLEANER 2

36Y-14463-01-00

Unavailable

16

ELEMENT, AIR CLEANER

36Y-14451-00-00

Unavailable

17

CAP, CLEANER CASE 1

3CV-14412-00-00

Unavailable

18

SCREW, PAN HEAD

98517-05020-00

Unavailable

19

WASHER(1RW)

92907-05600-00

Unavailable

20

GROMMET

31A-14435-01-00

Unavailable

21

PIPE

31A-14419-00-00

Unavailable

22

SEAL

1VJ-14462-00-00

Unavailable

23

HOSE CLAMP ASSY

90450-58002-00

Unavailable

24

AIR CLEANER CASE

36Y-W1441-00-00

Unavailable

25

DAMPER

36Y-14409-00-00

Unavailable

26

CLIP(41W)

90467-08092-00

Unavailable

27

CLIP(42X)

90467-07093-00

Unavailable

28

CLAMP(3SK)

90464-13133-00

Unavailable

29

PIPE 2

3SK-14872-00-00

Unavailable

30

NOZZLE

41R-14489-00-00

Unavailable

31

HOSE (L400)

90445-082A9-00

Unavailable

32

BOLT, HEXAGON

97017-06012-00

Unavailable

32

BOLT, HEXAGON

97017-06012-00

Unavailable

33

WASHER(6TA)

92907-06700-00

Unavailable

34

WASHER(6TA)

92907-06600-00

Unavailable
