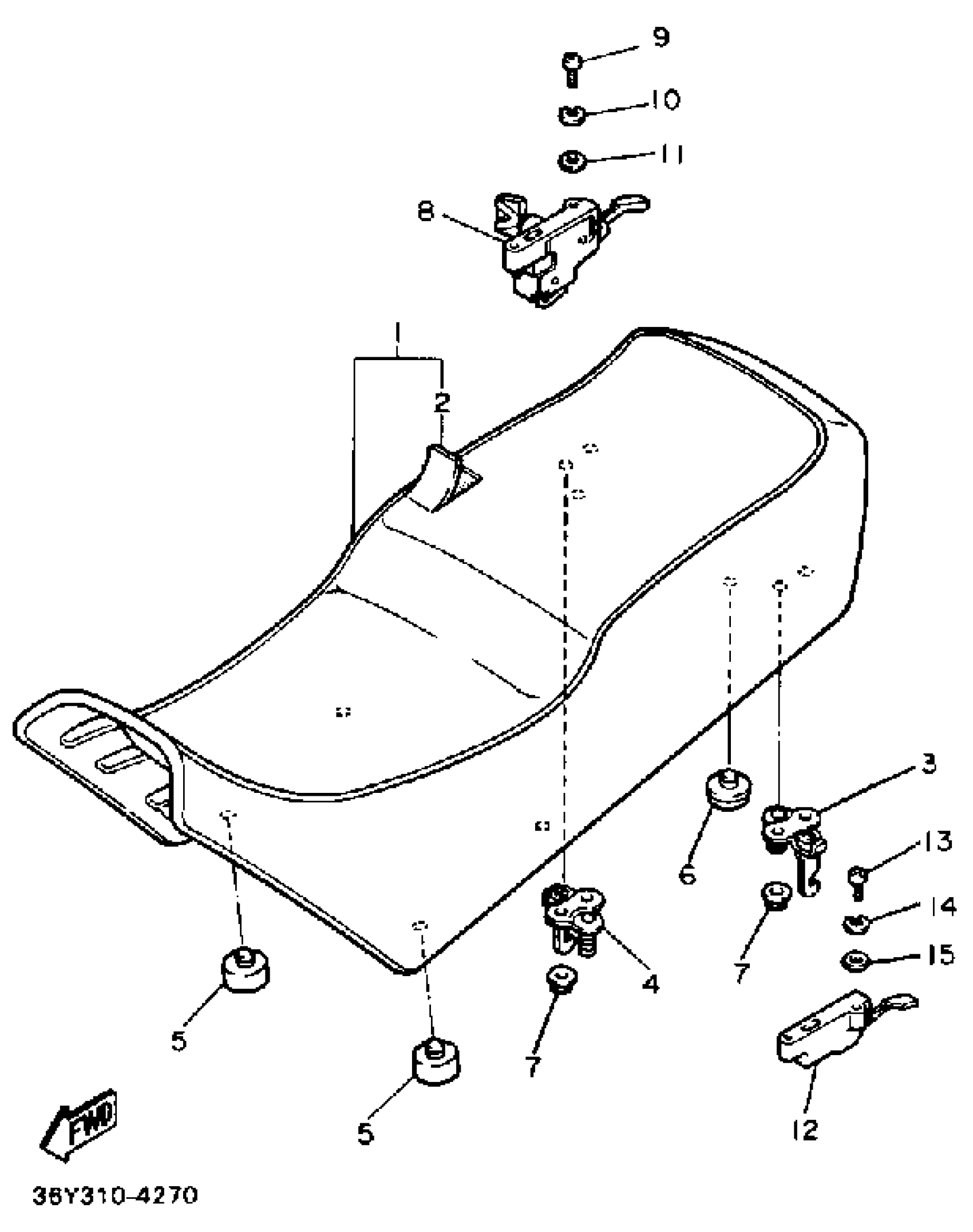

Yamaha FJ1200TC (FJ1200 CA) 1987 SEAT Diagram

#

Description
Price

1

DOUBLE SEAT ASY

4CC-24730-00-00

Unavailable

2

. COVER, DOUBLE SEAT

3CV-24731-40-00

Unavailable

3

BRACKET, SEAT

36Y-24728-00-00

Unavailable

4

BRACKET, SEAT

36Y-24738-00-00

Unavailable

5

PAD, SEAT

1T4-24741-00-00

Unavailable

6

PAD, SEAT

1L9-24741-00-00

$8.49

7

NUT, FLANGE(7NB)

95780-06500-00

$1.88

8

SEAT LOCK ASSEMBLY.

36Y-24705-00-00

Unavailable

9

SCREW, PAN

98507-06014-00

$5.88

10

WASHER, SPRING

92995-06100-00

$2.83

11

WASHER, PLAIN (646)

92990-06600-00

$2.43

12

SEAT LEVER ASSEMBLY

36Y-24760-00-00

Unavailable

13

SCREW, PAN

98507-06014-00

$5.88

14

WASHER, SPRING

92995-06100-00

$2.83

15

WASHER, PLAIN (646)

92990-06600-00

$2.43
