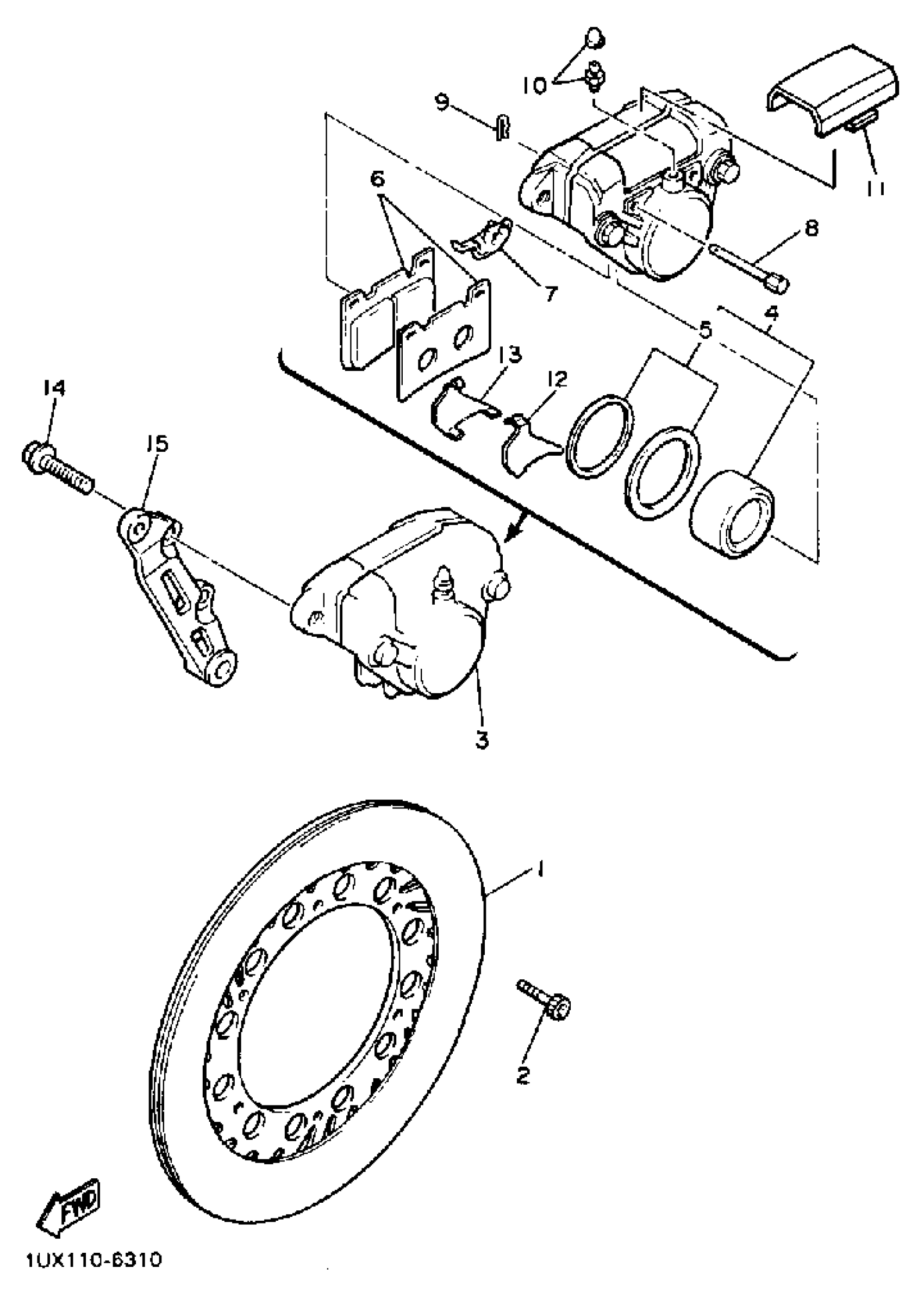

Yamaha FJ1200TC (FJ1200 CA) 1987 REAR BRAKE CALIPER Diagram

DISC, BRAKE (RIGHT)

36Y-25831-00-00

Unavailable

BOLT,HEX. SOCKET BUTTON

90111-08084-00

$3.96

CALIPER ASSEMBLY

1FW-25810-50-00

Unavailable

PISTON ASSY, CALIPER

31A-W0057-00-00

$116.51

PISTON SEAL KIT

31A-W0047-00-00

$47.66

BRAKE PAD KIT 2

1FK-W0046-01-00

$49.38

SPRING

26H-25919-00-00

Unavailable

PIN, PAD

3HE-25924-00-00

Unavailable

CLIP, PAD PIN

3GM-25925-00-00

$9.34

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

COVER, DUST

41Y-25836-01-00

Unavailable

SHIM, CALIPER

1FK-25827-01-00

$14.12

SHIM, CALIPER

1FK-25828-01-00

$12.39

BOLT, WASHER BASED(3VD)

90105-10638-00

$8.49

BRACKET, CALIPER

36Y-25819-00-00

Unavailable
