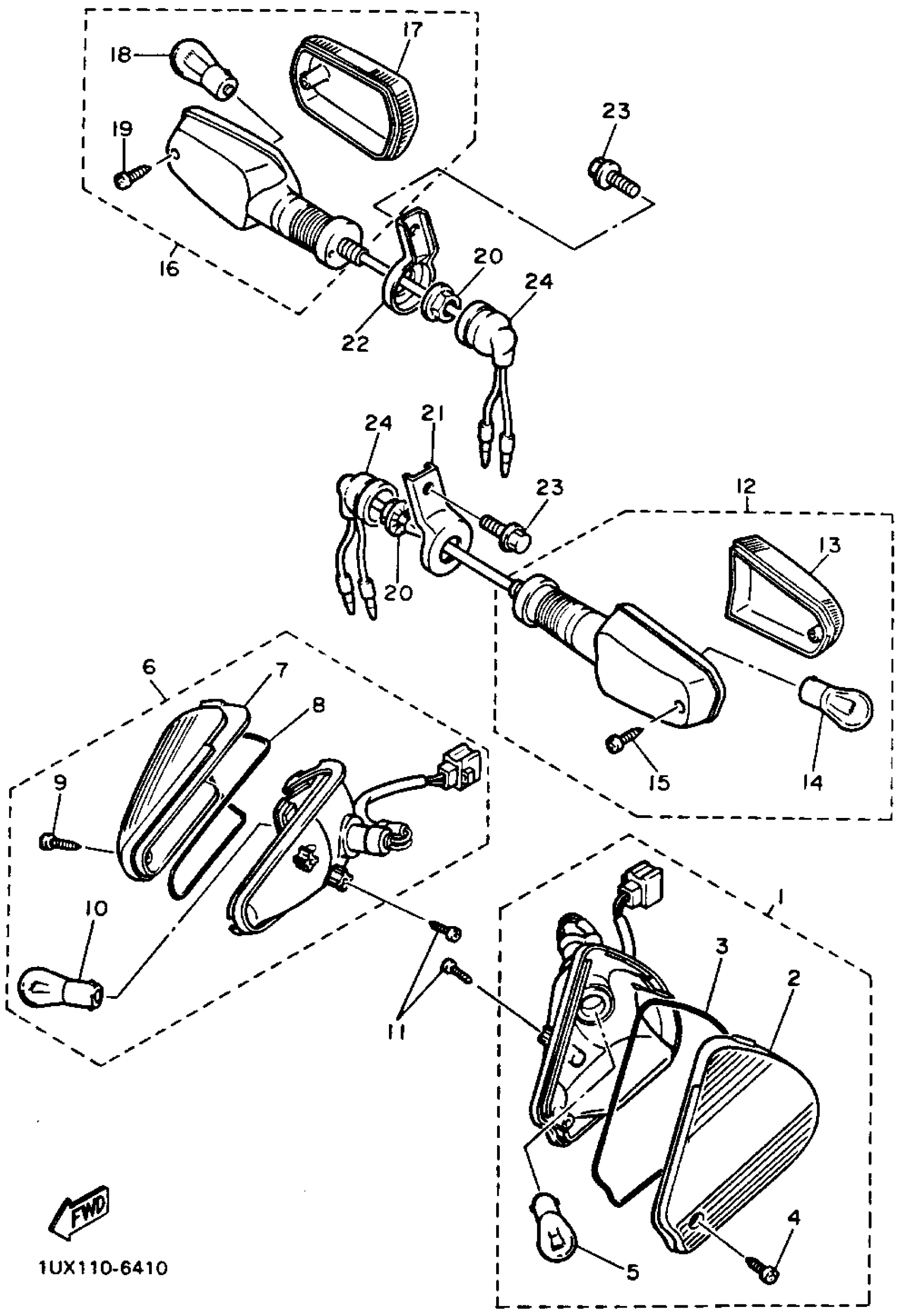

Yamaha FJ1200SC (FJ1200 CA) 1986 TURNSIGNAL Diagram

#

Description
Price

1

FRT FLSHR LITE ASSEMBLYLIGHT ASSEMBLY 1

1WJ-83310-01-00

Unavailable

2

. LENS, FLASHER

1TX-83312-00-00

Unavailable

3

. GASKET, FLSHR LENS

1TX-83313-00-00

Unavailable

4

SCREW, TAPPING

97780-40116-00

Unavailable

5

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$11.99

6

FRT FLSHR LITE ASSEMBLYLIGHT ASSEMBLY 2

1WJ-83320-01-00

Unavailable

7

. LENS, FLASHER 2

1TX-83322-00-00

Unavailable

8

. GASKET, FLSHR LENS

1TX-83313-00-00

Unavailable

9

SCREW, TAPPING

97780-40116-00

Unavailable

10

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$11.99

11

SCREW, PAN TAP.2 SLIT

97707-40614-00

$4.15

12

REAR FLASHER LIGHT ASSY 1

1UF-83330-00-00

Unavailable

13

LENS, FLASHER 2

51L-83342-01-00

$11.99

14

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

15

SCREW, PAN TAP.2

97707-40520-00

$9.49

16

REAR FLASHER LIGHT ASSY 2

1UF-83340-00-00

Unavailable

17

LENS, FLASHER

51L-83332-01-00

Unavailable

18

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

19

SCREW, PAN TAP.2

97707-40520-00

$9.49

20

NUT(3GG)

90179-12588-00

Unavailable

21

STAY, FLASHER

36Y-83368-00-00

Unavailable

22

STAY, FLASHER

36Y-83369-00-00

Unavailable

23

BOLT, FLANGE

95817-08012-00

Unavailable

24

CAP

18G-83365-00-00

Unavailable
