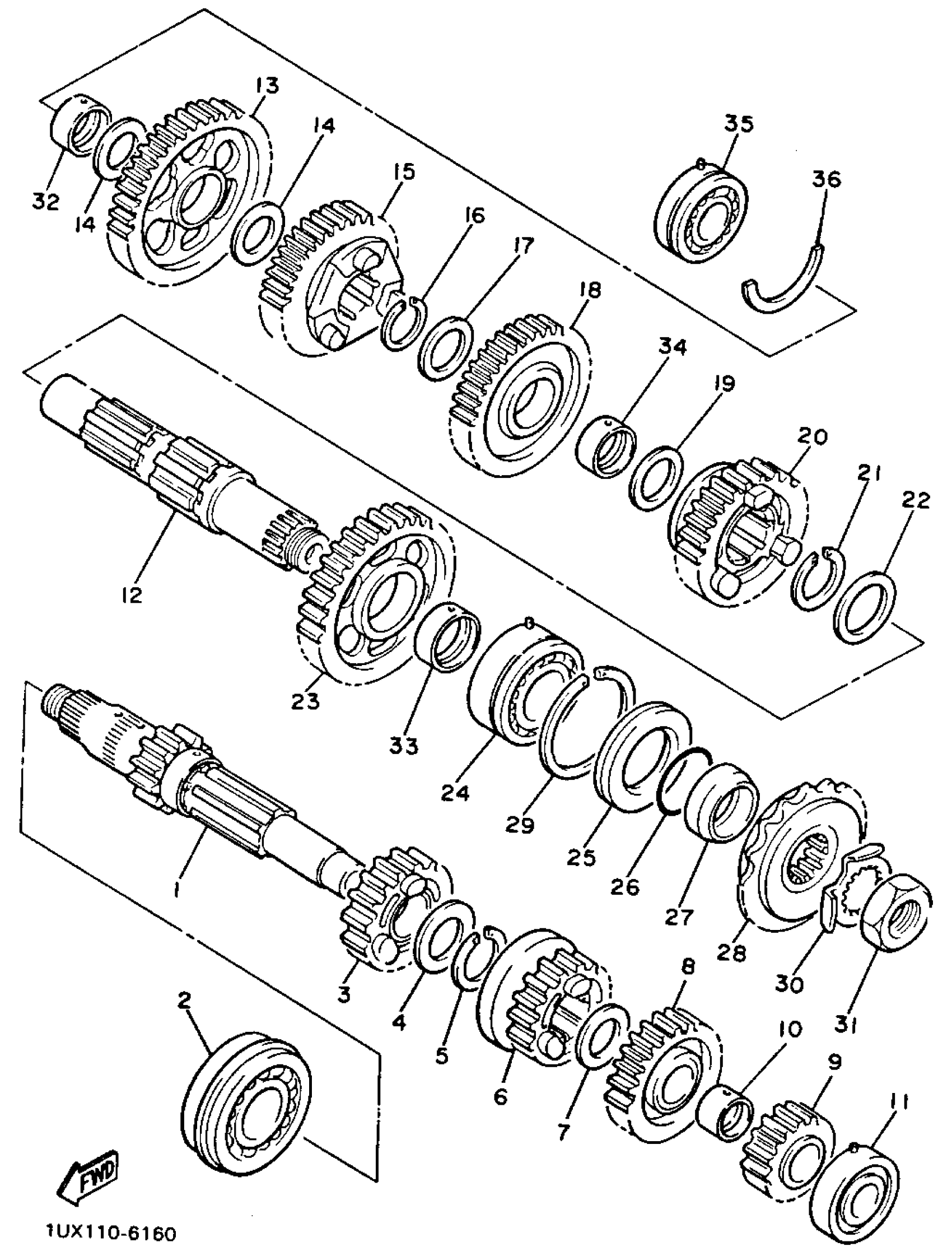

Yamaha FJ1200SC (FJ1200 CA) 1986 TRANSMISSION Diagram

#

Description
Price

1

MAIN AXLE ASSY

99999-02897-00

Unavailable

2

BEARING (26H)

93306-36401-00

$73.99

3

GEAR, 4TH PINION

1TX-17141-00-00

Unavailable

4

WASHER (4H7)

90209-25196-00

Unavailable

5

CIRCLIP (2H7)

93440-28062-00

$8.49

6

GEAR, 3RD PINION (21T)

1TX-17131-00-00

Unavailable

7

WASHER, PLATE(3HN)

90201-225M9-00

$10.49

8

GEAR, 5TH PINION

5UX-17151-00-00

$80.99

9

GEAR, 2ND PINION (18T)

3CV-17121-00-00

Unavailable

10

COLLAR(1UX)

90387-220R2-00

Unavailable

11

BEARING(36Y)

93306-30434-00

Unavailable

12

AXLE, DRIVE

1TX-17421-00-00

Unavailable

13

GEAR, 1ST WHEEL (40T)

1TX-17211-00-00

Unavailable

14

WASHER, PLATE(36Y)

90201-257H0-00

Unavailable

15

GEAR, 4TH WHEEL (31T)

5EA-17241-00-00

Unavailable

16

CIRCLIP (3J3)

93440-30077-00

Unavailable

17

WASHER (3J3)

90209-27192-00

Unavailable

18

GEAR, 3RD WHEEL (33T)

1TX-17231-00-00

Unavailable

19

WASHER, PLATE(36Y)

90201-307H1-00

Unavailable

20

GEAR, 5TH WHEEL

1TX-17251-00-00

Unavailable

20

GEAR, 5TH WHEEL (29T)

36Y-17251-00-00

Unavailable

21

CIRCLIP (371)

93440-34025-00

Unavailable

22

WASHER (26H)

90209-32231-00

Unavailable

23

GEAR, 2ND WHEEL (36T)

3CV-17221-00-00

Unavailable

24

BEARING(36Y)

93305-20605-00

Unavailable

25

OIL SEAL(36Y)

93102-40330-00

Unavailable

26

O-RING(36Y)

93210-30660-00

Unavailable

27

COLLAR(36Y)

90387-304K7-00

Unavailable

28

SPROCKET,DRIVE 17T

3CV-17460-00-00

Unavailable

29

CIRCLIP (409)

93440-62032-00

Unavailable

30

WASHER, LOCK(47X)

90215-26241-00

Unavailable

31

NUT, LOCK (409)

90179-22063-00

Unavailable

32

COLLAR(1UX)

90387-250R3-00

Unavailable

33

COLLAR(1UX)

90387-350R5-00

Unavailable

34

COLLAR(1UX)

90387-300R4-00

Unavailable

35

BEARING(36Y)

93306-20561-00

Unavailable

36

CIRCLIP (26H)

93440-52118-00

Unavailable
