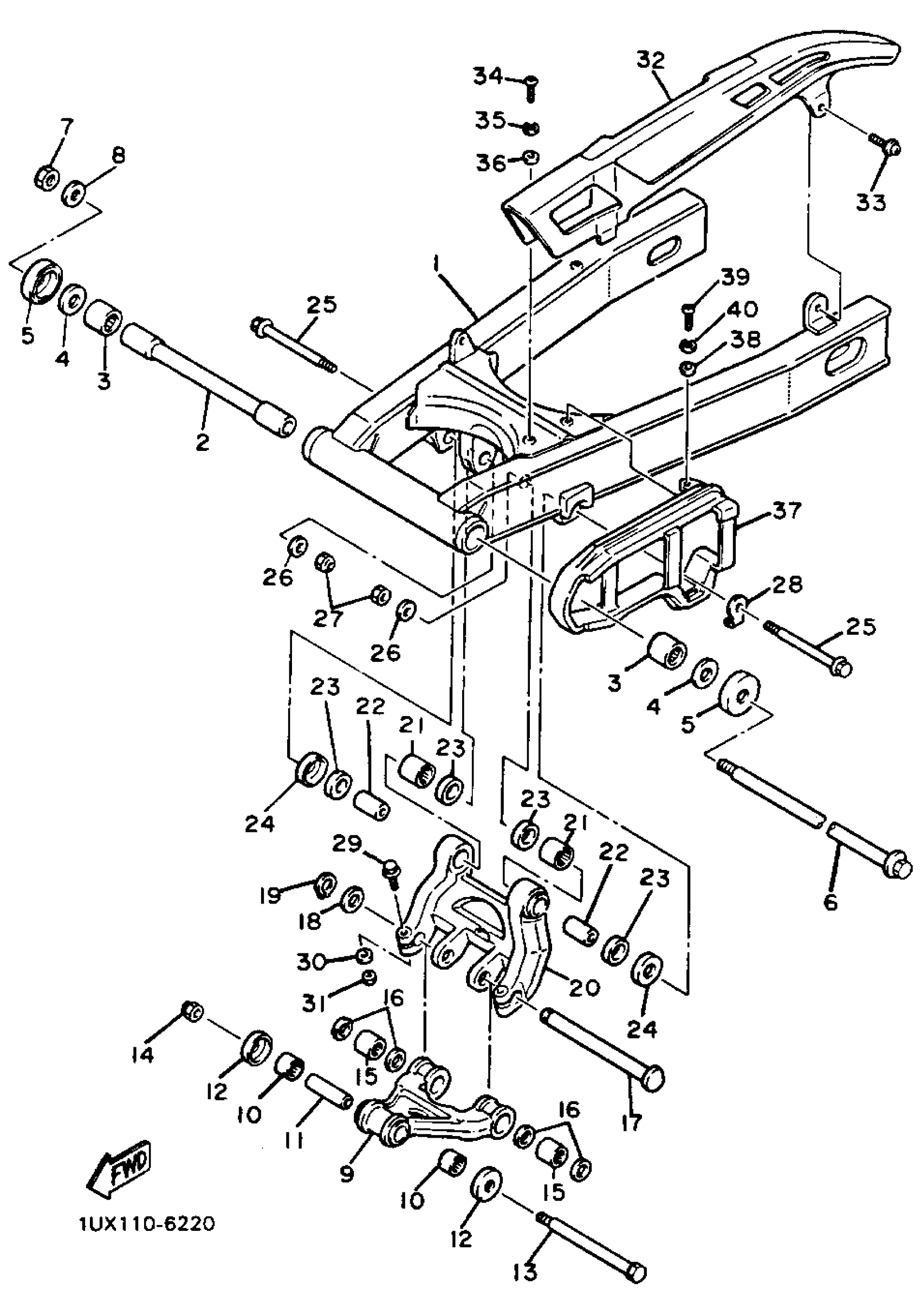

Yamaha FJ1200SC (FJ1200 CA) 1986 SWING ARM Diagram
#
1
REAR ARM
36Y-22110-00-00
Unavailable
2
BUSH
36Y-22184-00-00
Unavailable
3
BEARING, CYLINDRICAL(36Y)
93317-42550-00
Unavailable
4
SHIM
36Y-22127-00-00
Unavailable
5
COVER, THRUST 1
36Y-22128-00-00
Unavailable
6
SHAFT, PIVOT
36Y-22141-00-00
Unavailable
9
ARM, RELAY
(1AE-2217A-00-00)
Unavailable
11
COLLAR(1FN)
90387-123M4-00
Unavailable
12
COVER, THRUST 2
36Y-22129-00-00
Unavailable
13
BOLT
90101-12605-00
Unavailable
15
BEARING, CYLINDRICAL(1FN)
93315-31841-00
Unavailable
16
OIL SEAL(1FN)
93110-18017-00
Unavailable
17
SHAFT 1
1AE-22121-00-00
Unavailable
18
WASHER, PLATE(36Y)
90201-187H4-00
Unavailable
19
CIRCLIP(13H)
99009-18400-00
Unavailable
20
ARM 1
1AE-2217M-00-00
Unavailable
21
BEARING, CYLINDRICAL(3MH)
93315-32057-00
Unavailable
22
COLLAR(1FN)
90387-123M3-00
Unavailable
23
OIL SEAL
93109-20076-00
Unavailable
24
COVER, THRUST 2
1AE-22129-00-00
Unavailable
25
BOLT, WASHER BASED(36Y)
90105-12309-00
Unavailable
26
WASHER, PLATE (4N0)
90201-126A7-00
Unavailable
28
WASHER, PLATE
1TX-22156-00-00
Unavailable
29
BOLT, FLANGE
95817-06045-00
Unavailable
30
WASHER, PLATE (4H7)
90201-061A5-00
Unavailable
31
NUT, SELF-LOCKING
95617-06100-00
Unavailable
32
CASE, CHAIN
36Y-22311-00-00
Unavailable
33
SCREW, PANHEAD W/WASHER (22F)
90159-06082-00
Unavailable
34
SCREW PAN HEAD
98580-06020-00
Unavailable
35
WASHER, SPRING
92995-06100-00
Unavailable
36
WASHER, PLATE
90201-06380-00
Unavailable
37
SEAL, GUARD
36Y-22151-01-00
Unavailable
38
WASHER, PLATE
90201-06380-00
Unavailable
39
SCREW PAN HEAD
98580-06020-00
Unavailable
40
WASHER, SPRING
92995-06100-00
Unavailable
