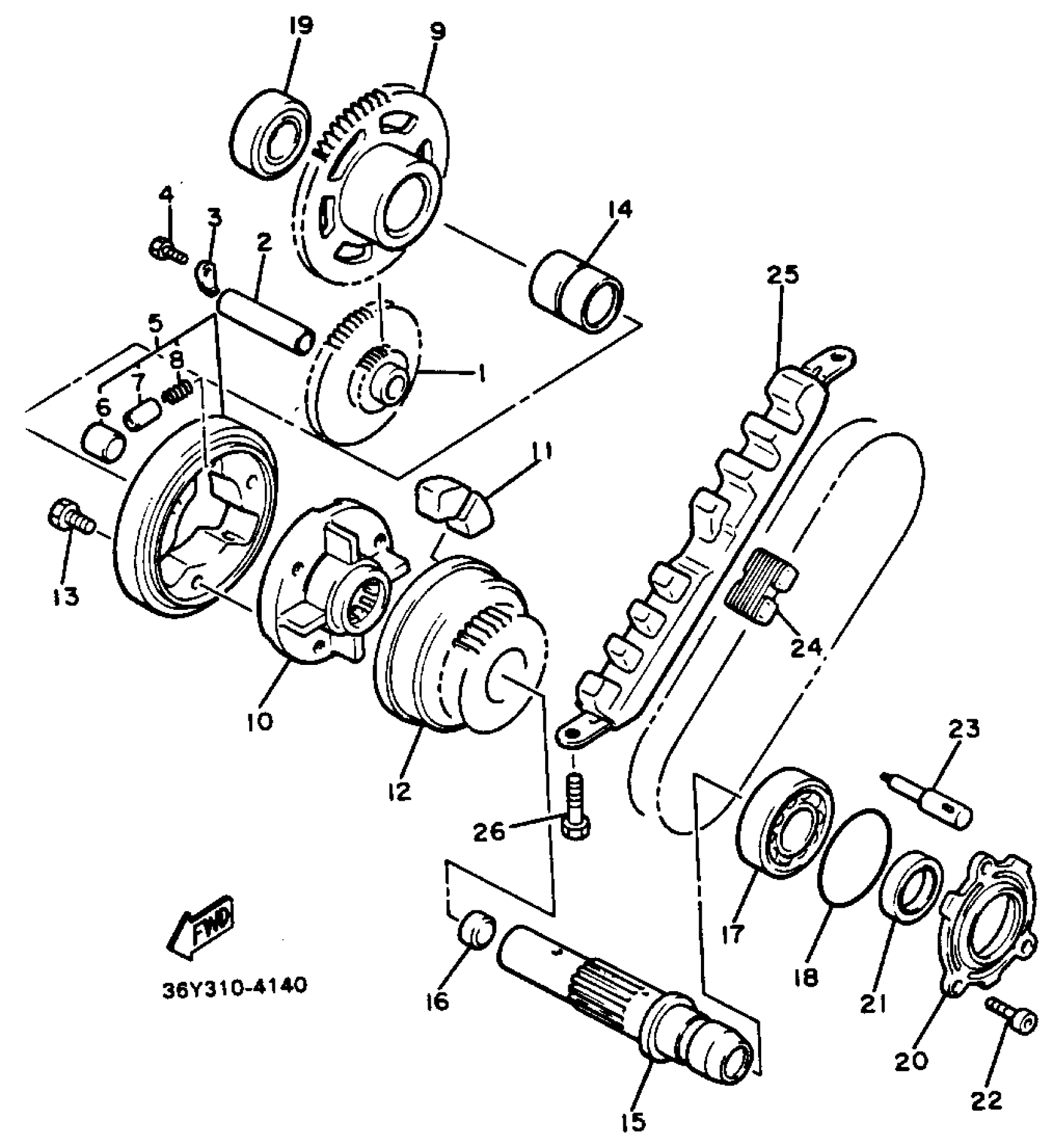

Yamaha FJ1200SC (FJ1200 CA) 1986 STARTER Diagram

#

Description
Price

1

GEAR, IDLER 1

36Y-15512-01-00

Unavailable

2

SHAFT 1

36Y-15521-01-00

$22.99

3

PLATE, STOPPER

2H7-15531-00-00

Unavailable

4

BOLT (661)

97013-06012-00

$5.60

5

STRCLUTCH OTR ASY

36Y-15580-02-00

Unavailable

6

PIN, DOWEL (1J7)

93615-17125-00

$16.99

7

CAP, STARTER CLUTCH

1J7-15583-01-00

$18.49

8

SPRING, COMPRESSION (2H7)

90501-04503-00

$9.49

9

GEAR, IDLER 2

36Y-15517-01-00

Unavailable

10

WHEEL, STARTER

12R-15524-00-00

Unavailable

11

ABSORBER 1

4H7-16155-01-00

$5.49

12

SPROCKET, STARTER 2

36Y-15519-00-00

Unavailable

13

BOLT, SOCKET

91317-08016-00

$8.49

14

COLLAR(36Y)

90387-201L2-00

Unavailable

15

SHAFT 2

36Y-15522-01-00

Unavailable

16

PLUG (26H)

90331-15039-00

Unavailable

17

BEARING (4G0)

93306-20545-00

Unavailable

18

O-RING (4G0)

93210-47440-00

Unavailable

19

BEARING (5Y1)

93306-00426-00

Unavailable

20

HOUSING, BEARING 1

36Y-15163-00-00

Unavailable

21

OIL SEAL (4G0)

93102-25253-00

Unavailable

22

BOLT,SOCKET

91317-06016-00

Unavailable

23

NOZZLE

36Y-13454-00-00

Unavailable

24

CHAIN, PRIMARY

4FM-11456-00-00

Unavailable

25

GUIDE, UPPER

36Y-11474-00-00

Unavailable

26

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable
