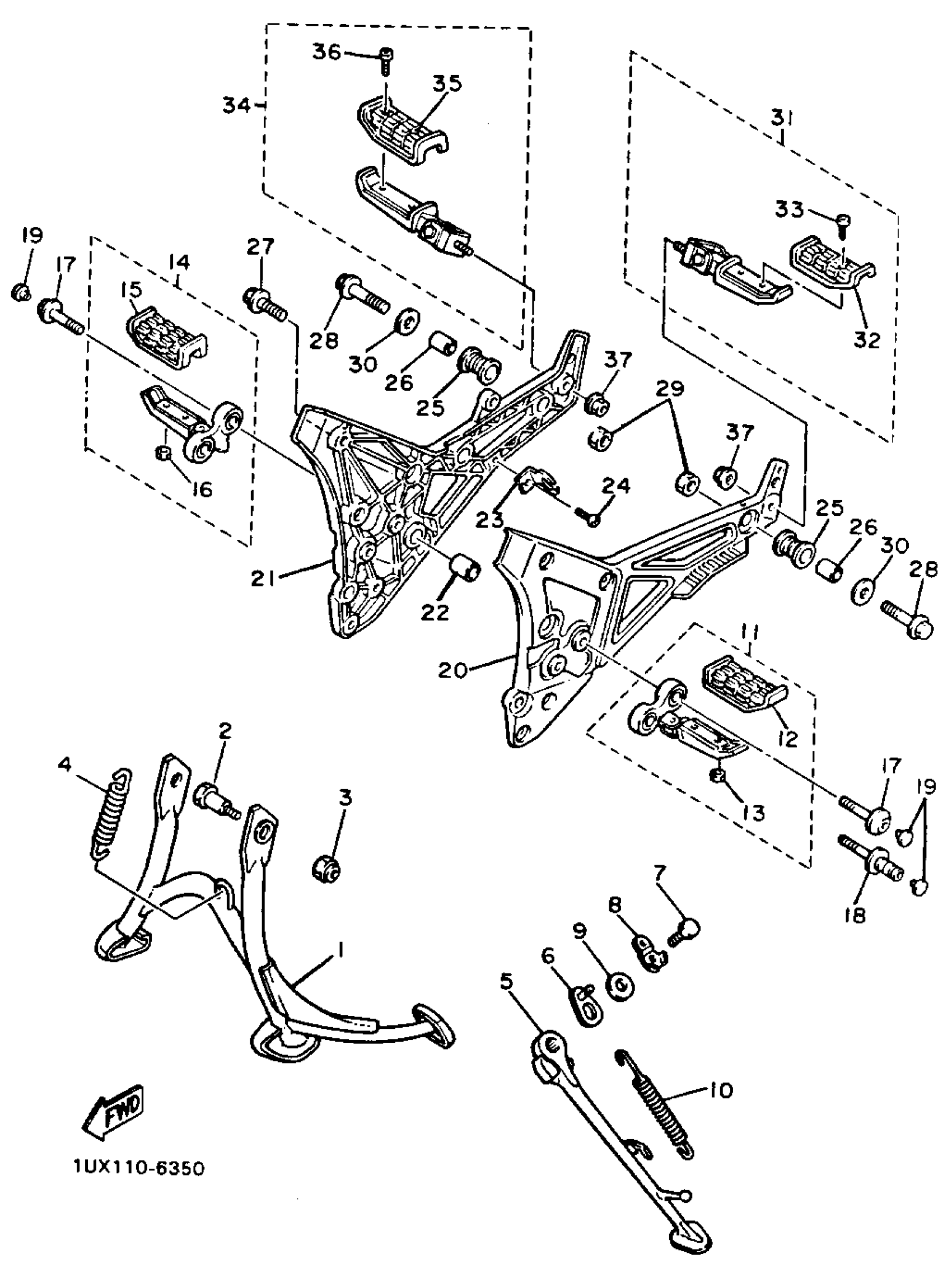

Yamaha FJ1200SC (FJ1200 CA) 1986 STAND FOOTREST Diagram

#

Description
Price

1

STAND, MAIN

36Y-27111-01-33

Unavailable

2

BOLT(1TX)

90109-101E6-00

$19.99

3

NUT, SELF LOCKING (3G1)

90185-10091-00

$9.49

4

SPRING, TENSION (12R)

90506-45278-00

Unavailable

5

STAND,SIDE

1TX-27311-00-R4

Unavailable

6

HOOK, SIDE STAND

36Y-27352-00-00

Unavailable

7

BOLT, HEXAGON

97017-08020-00

$9.49

8

WASHER, SIDE STAND

36Y-27322-00-00

Unavailable

9

WASHER, PLATE (5J0)

90201-085E6-00

$10.49

10

SPRING, TENSION(36Y)

90506-29358-00

$12.49

11

FRT FOOTREST ASSEMBLY LASSEMBLY (LEFT)

3CV-27410-00-00

Unavailable

12

COVER, FOOTREST

22N-27413-00-00

$48.99

13

NUT, SELF-LOCKING

95617-06100-00

$8.49

14

FRT FOOTREST ASSEMBLY RASSEMBLY (RIGHT)

1WJ-27420-00-00

Unavailable

15

COVER, FOOTREST

22N-27413-00-00

$48.99

16

NUT, SELF-LOCKING

95617-06100-00

$8.49

17

BOLT, FOOTREST

36Y-27416-00-00

Unavailable

18

BOLT

90109-081A5-00

Unavailable

19

PLUG(42X)

90338-08163-00

Unavailable

20

BRACKET 2

36Y-27442-00-00

Unavailable

21

BRACKET 3

36Y-27443-00-00

Unavailable

22

BUSH, SPEC''L NYLON

90386-20130-00

Unavailable

23

BRACKET 4

36Y-2741L-00-00

Unavailable

24

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

25

DAMPER, FOOTREST 2

36Y-27424-01-00

Unavailable

26

COLLAR

90387-10048-00

Unavailable

27

BOLT, WASHER BASED(36Y)

90105-08307-00

Unavailable

28

BOLT, WASHER BASED(4KM)

90105-10778-00

Unavailable

29

NUT, SPEC''L SHAPE

90179-10276-00

Unavailable

30

WASHER, PLATE (2H7)

90201-10669-00

Unavailable

31

RR FOOTREST ASSEMBLY 1

31A-27430-01-00

Unavailable

32

. COVER, RR FOOTREST

22N-27433-00-00

Unavailable

33

SCREW, PAN HEAD(3LA)

98517-05010-00

Unavailable

34

RR FOOTREST ASSEMBLY 2 (31A-27440-00)

31A-27440-01-00

Unavailable

35

. COVER, RR FOOTREST

22N-27433-00-00

Unavailable

36

SCREW, PAN HEAD(3LA)

98517-05010-00

Unavailable

37

NUT, FLANGE(3BM)

95704-10500-00

Unavailable
