Description

Price

1

SHIFT CAM ASSEMBLY

1TX-18540-01-00

Unavailable

2

SPRING COMPRESSION278185450000

90501-06022-00

$8.49

3

POINT, NEUTRAL

4UN-18542-00-00

$8.99

4

SCREW, FLAT

98707-05012-00

$1.71

5

PLATE, SIDE 2

278-18566-00-00

Unavailable

6

PLATE, STOPPER 2

36Y-18562-00-00

Unavailable

7

SCREW, FLAT

98707-06014-00

$8.49

8

BAR, SHIFT FORK GUIDE 1

4BR-18531-00-00

Unavailable

9

FORK, SHIFT 1

3XW-18511-00-00

Unavailable

10

FORK, SHIFT 2

4KG-18512-00-00

Unavailable

11

FORK, SHIFT 3

3XW-18513-00-00

Unavailable

12

SPRING, TORSION

90508-23707-00

Unavailable

13

STOPPER LEVER ASSY

36Y-18140-00-00

Unavailable

14

BOLT

90109-06190-00

$4.72

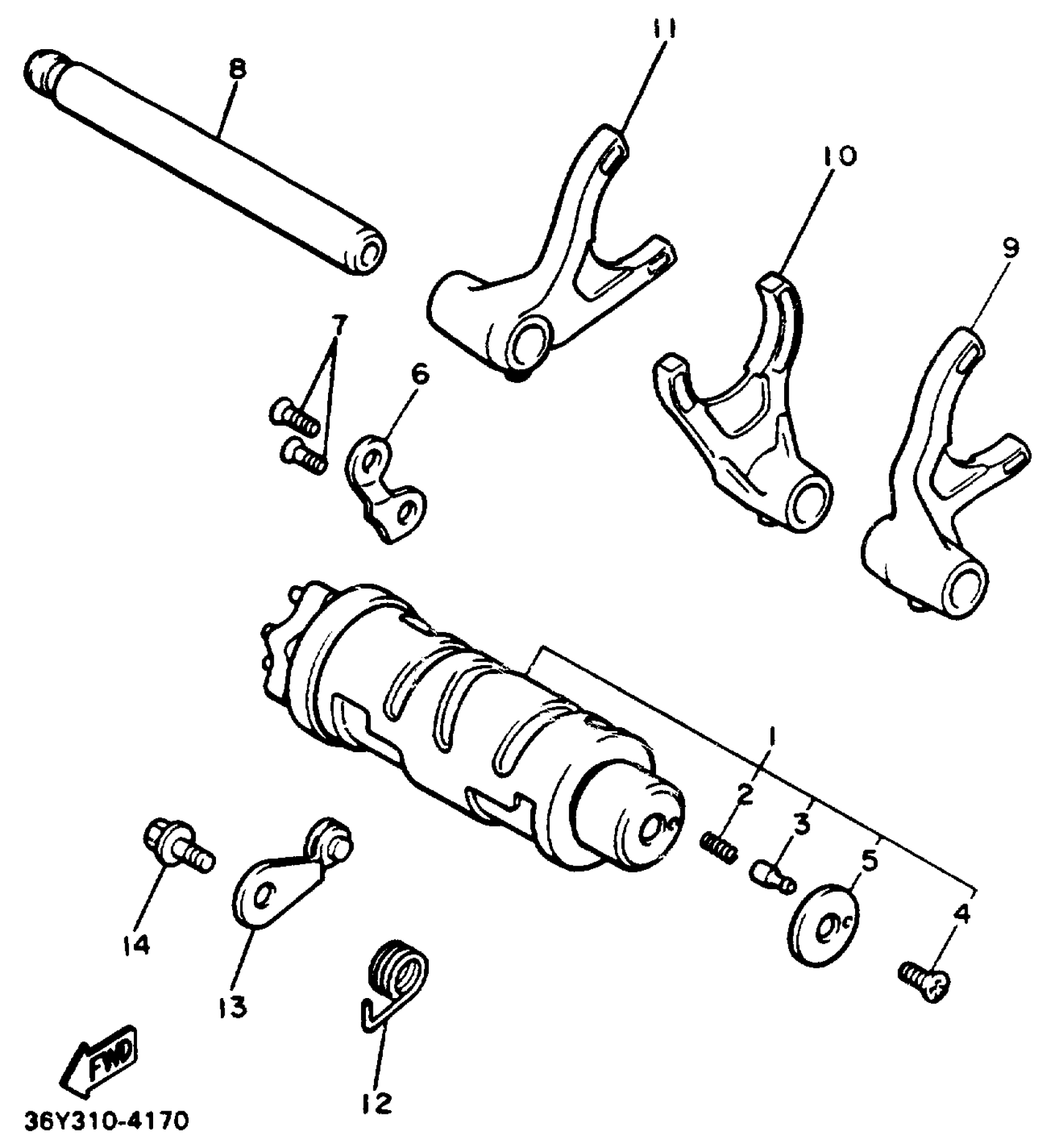

Yamaha FJ1200SC (FJ1200 CA) 1986 SHIFT CAM Diagram

SHIFT CAM ASSEMBLY

SPRING COMPRESSION278185450000

POINT, NEUTRAL

SCREW, FLAT

PLATE, SIDE 2

PLATE, STOPPER 2

SCREW, FLAT

BAR, SHIFT FORK GUIDE 1

FORK, SHIFT 1

FORK, SHIFT 2

FORK, SHIFT 3

SPRING, TORSION

STOPPER LEVER ASSY

BOLT
