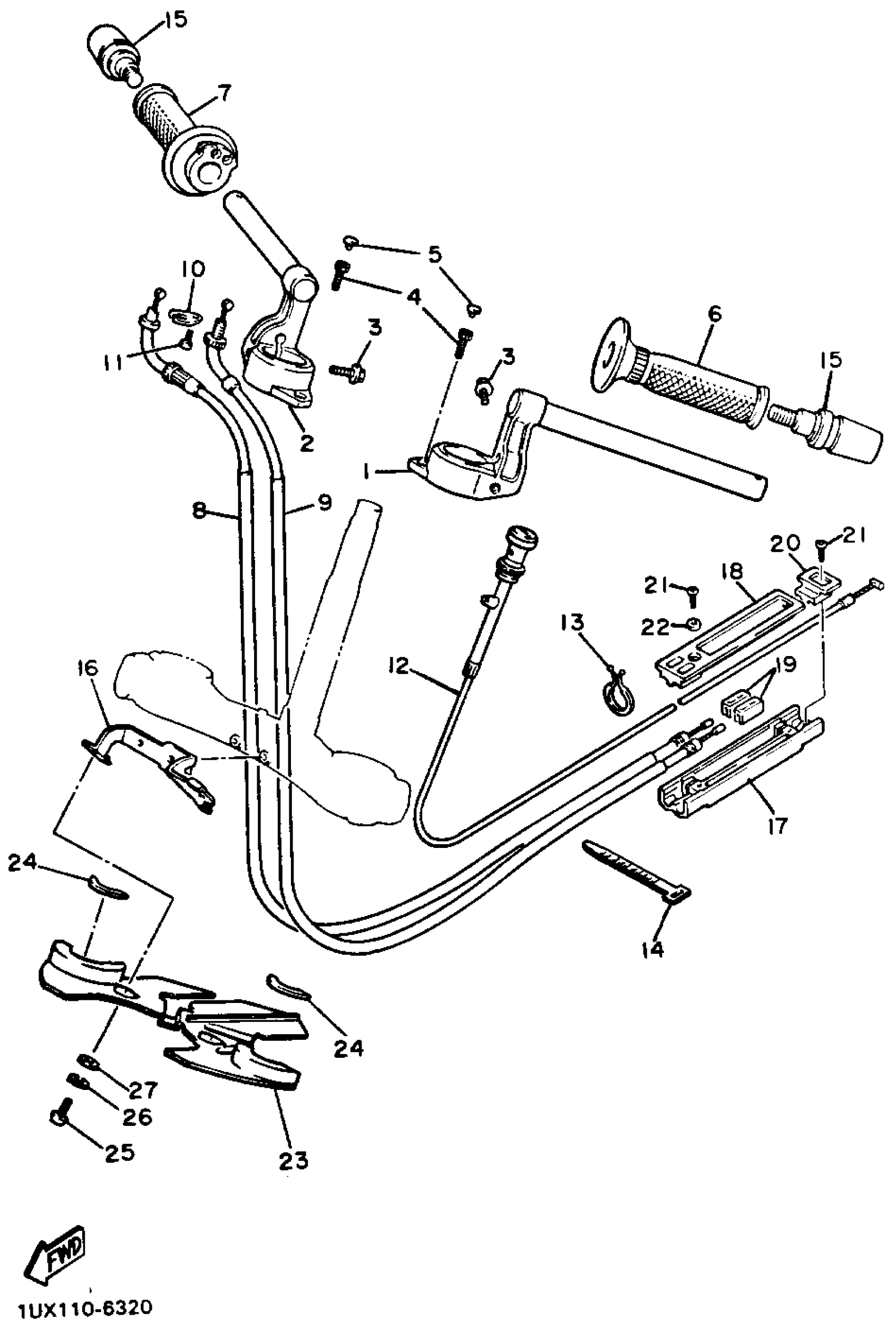

Yamaha FJ1200SC (FJ1200 CA) 1986 HANDLEBAR CABLE Diagram

HANDLEBAR LH

36Y-26121-00-00

Unavailable

HANDLEBAR RH

36Y-26122-00-00

Unavailable

BOLT, FLANGE(4MY)

95027-08035-00

$8.49

BOLT,SOCKET

91317-06016-00

$1.25

PLUG

90338-05010-00

$8.49

GRIP (L.H)

31A-26241-00-00

$37.99

GRIP ASSY

36Y-26240-00-00

Unavailable

CABLE, THROTTLE 1

36Y-26311-01-00

Unavailable

CABLE, THROTTLE 2

36Y-26312-01-00

Unavailable

HOLDER

5H0-26393-00-00

$7.99

GASKET, EXHAUST

98507-05008-00

$3.55

STARTER CABLE ASSY

1TX-26330-00-00

Unavailable

CLAMP

90464-25267-00

$7.49

CLAMP(4FM)

90464-15195-00

$4.41

END, GRIP

36Y-26246-00-00

$51.99

BRACKET, HORN

1TX-21343-00-00

Unavailable

CONNECTOR, CABLE

36Y-26261-00-00

Unavailable

CAP, CABLE CONNECTOR

36Y-26262-00-00

Unavailable

SLIDER, THROTTLE

26H-26244-01-00

Unavailable

CAP

36Y-26272-00-00

Unavailable

SCREW, PAN TAP.2

97707-30512-00

Unavailable

WASHER, PLAIN LARGE

92907-03200-00

Unavailable

UNAVAILABLE IN PRICE BOOK

[1T-X2836-K0-0]

Unavailable

UNAVAILABLE IN PRICE BOOK

[1T-X2834-E0-0]

Unavailable

SCREW, PAN HEAD(3TJ)

98507-06016-00

Unavailable

WASHER, SPRING

92907-06100-00

Unavailable

WASHER(6TA)

92907-06600-00

Unavailable
