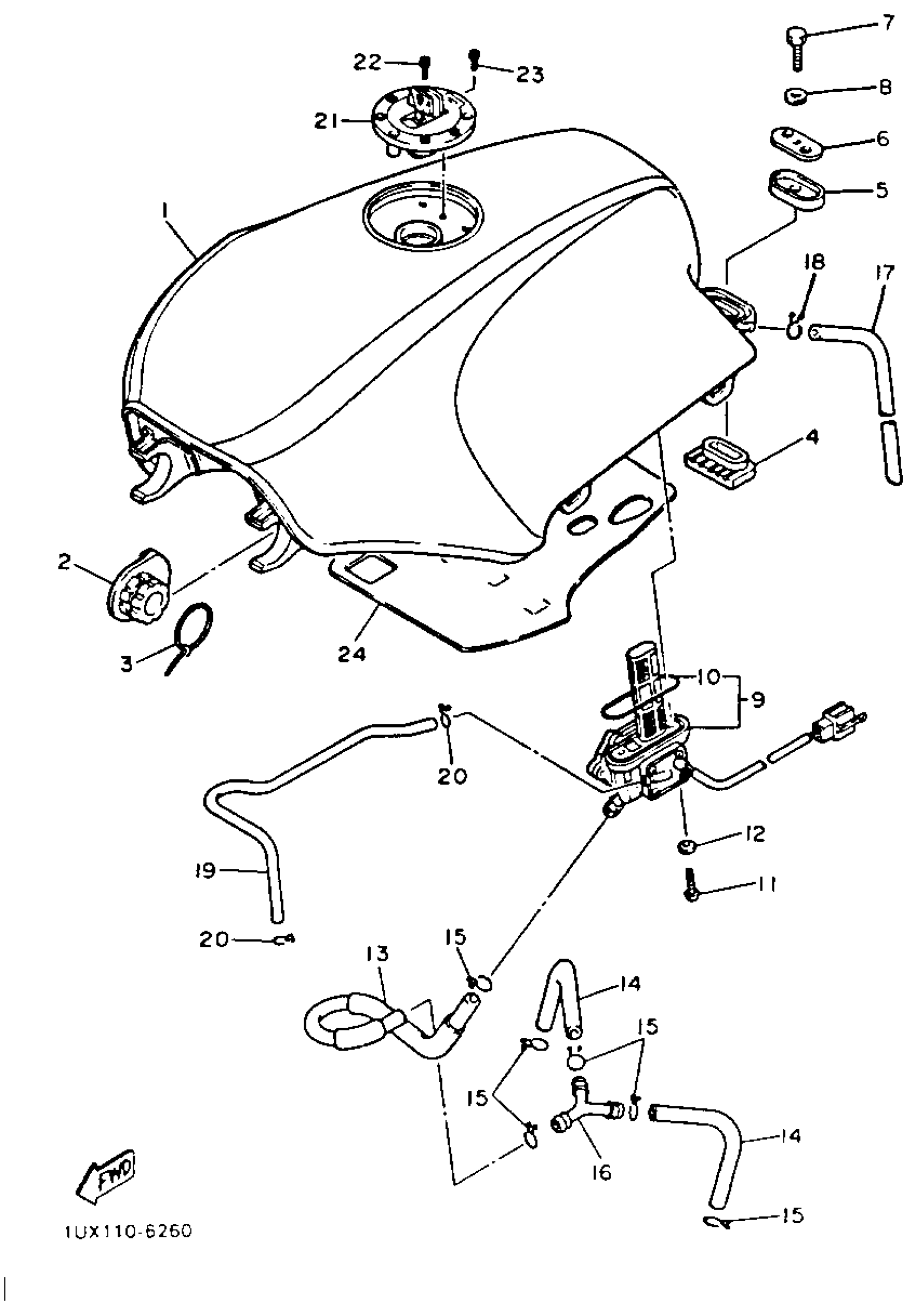

Yamaha FJ1200SC (FJ1200 CA) 1986 FUEL TANK FJ1200S Diagram

#

Description
Price

1

FUEL TANK

1TX-24110-00-01

Unavailable

2

DAMPER, LOCATING 1

36Y-24181-01-00

Unavailable

3

CLAMP

5Y9-12491-00-00

$6.99

4

DAMPER, LOCATING 2

36Y-24182-00-00

Unavailable

5

DAMPER, LOCATING 3

3Y6-24183-00-00

$7.99

6

WASHER, SPECIAL

36Y-24186-00-00

Unavailable

7

BOLT, HEXAGON

97017-06030-00

$3.61

8

WASHER(6TA)

92907-06600-00

$2.72

9

FUEL COCK ASSY

1TX-24500-02-00

Unavailable

10

O-RING

2G2-24512-00-00

$10.99

11

SCREW 366241430000

90149-06008-00

$10.49

12

WASHER, PLATE(3MB)

90202-05187-00

$1.38

13

PIPE 2

36Y-24312-00-00

Unavailable

14

PIPE, FUEL 1

36Y-24311-00-00

Unavailable

15

CLIP (4X4)

90467-12052-00

$9.49

16

PIPE, JOINT 1

36Y-24376-00-00

Unavailable

17

HOSE (L730)

90445-105K7-00

Unavailable

18

CLIP

90467-090A2-00

Unavailable

19

PIPE 3

1TX-24313-00-00

Unavailable

20

CLIP (16G)

90467-08021-00

Unavailable

21

CAP ASSY

4FM-24602-20-00

Unavailable

22

BOLT, HEXAGON SOCKET HEAD(1FM)

90110-05112-00

Unavailable

23

BOLT, SOCKET

91314-05010-00

Unavailable

24

SEAL, AIR SHROUD 1

3CV-24125-00-00

Unavailable
