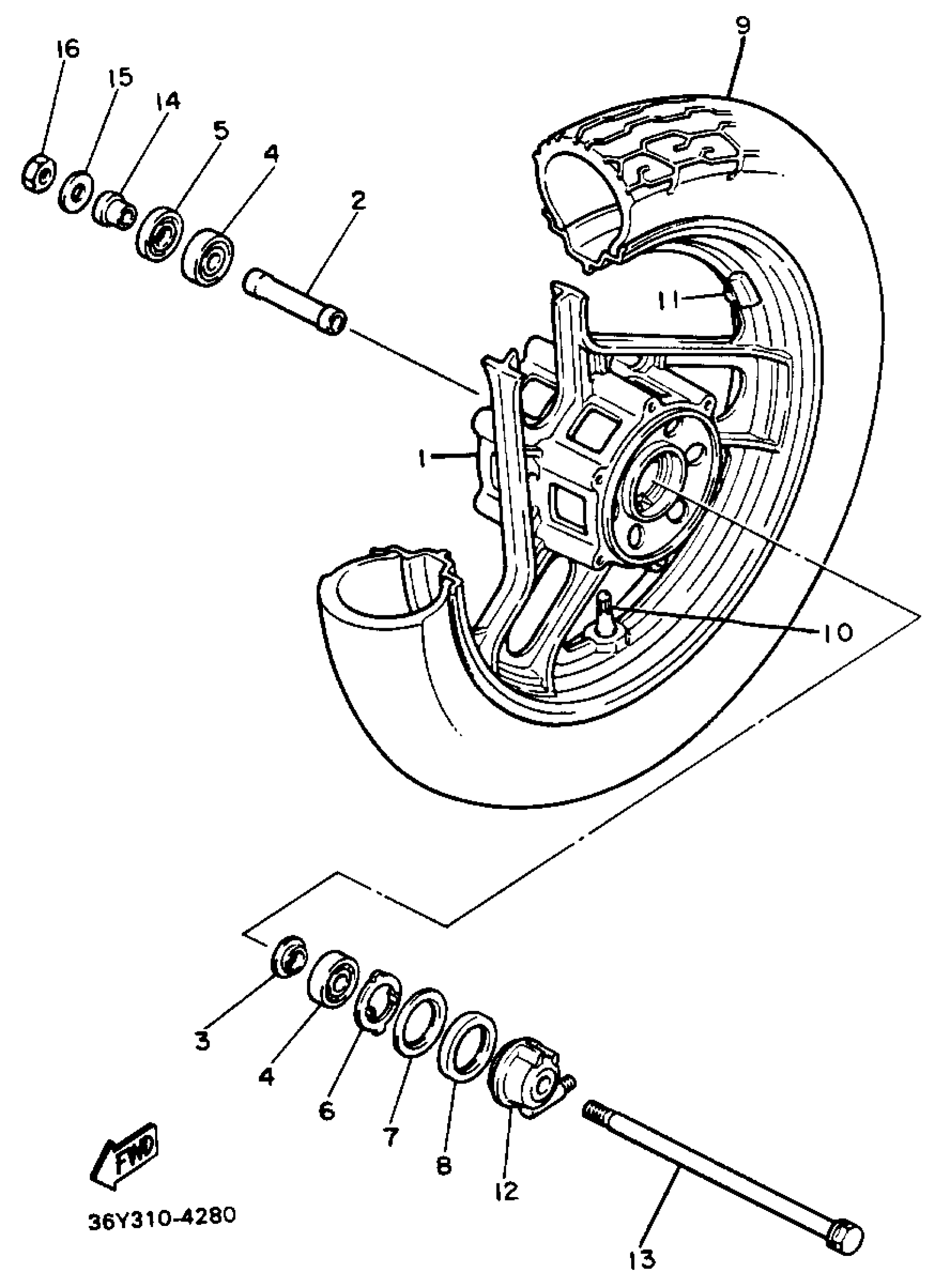

Yamaha FJ1200SC (FJ1200 CA) 1986 FRONT WHEEL Diagram

#

Description
Price

1

WHEEL, CAST FRONT

36Y-25168-00-98

Unavailable

2

SPACER(36Y)

90560-15255-00

Unavailable

3

FLANGE, SPACER

146-25115-00-00

$6.99

4

BEARING

93306-30212-00

$40.99

5

OIL SEAL (22X42X7)

93102-22014-00

$12.49

6

CLUTCH, METER (371,447)

341-25149-00-00

$7.99

7

RETAINER, CLUTCH (371,447)

341-25846-00-00

$8.99

8

OIL SEAL (45X56X6)

93105-45017-00

$14.99

9

120/80V16 G533 BSV250 G533)

94112-163J0-00

Unavailable

10

VALVE, RIM(2GH)

93900-00030-00

$16.99

11

BALANCER, WHEEL

5MT-25398-00-00

$17.49

11

BALANCER, WHEEL

5MT-25398-10-00

$17.49

11

BALANCER, WHEEL

5MT-25398-20-00

Unavailable

12

GEAR UNIT ASSY

3M5-25190-10-00

Unavailable

13

AXLE, WHEEL

5X3-25381-00-00

Unavailable

14

COLLAR (1L9)

90387-15550-00

Unavailable

15

WASHER, PLAIN

92990-14200-00

Unavailable

16

NUT, SELF-LOCKING (1J7)

90185-14070-00

Unavailable
