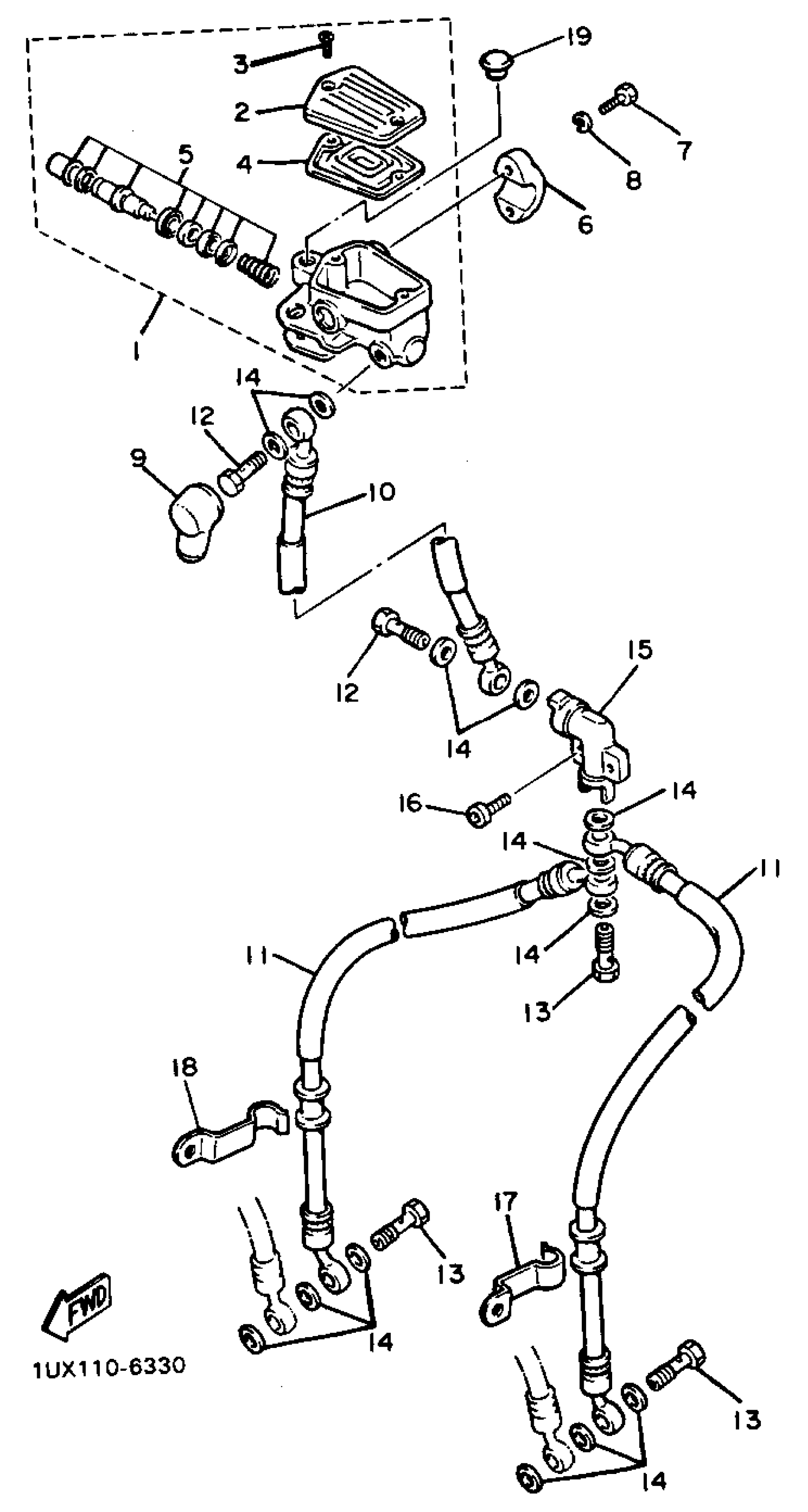

Yamaha FJ1200SC (FJ1200 CA) 1986 FRONT MASTER CYLINDER Diagram

MASTER CYLINDER ASSY

3HE-2583T-02-00

Unavailable

CAP, RESERVOIR

3HE-25852-01-00

$29.99

SCREW, FLAT

98707-04012-00

$2.18

DIAPHRAGM, RESERVOIR

36Y-25854-00-00

$35.99

CYLINDER KIT, MASTER

36Y-W0041-00-00

Unavailable

BRACKET, MASTER CYLINDER

36Y-25867-00-00

$24.99

BOLT,SOCKET

91317-06025-00

$5.60

WASHER, SPRING

92907-06100-00

$4.25

BOOT, MASTER CYLINDER

4L0-25862-01-00

$7.99

HOSE, BRAKEL

99999-02578-00

Unavailable

HOSE, BRAKE 2 (36Y)

99999-02794-00

Unavailable

BOLT, UNION(3GM)

90401-10159-00

$11.49

BOLT, UNION

90401-10038-00

$12.49

WASHER, PLATE(481)

90201-10118-00

Unavailable

JOINT

11U-25885-00-00

Unavailable

BOLT,SOCKET

91317-06025-00

$5.60

HOLDER, BRKE HOSE 1

36Y-25875-00-00

Unavailable

HOLDER, BRKE HOSE 2

36Y-25876-00-00

Unavailable

PLUG (341-26329-00)

90338-09012-00

Unavailable
