- FJ1200SC (FJ1200 CA) 1986
FRONT FORK

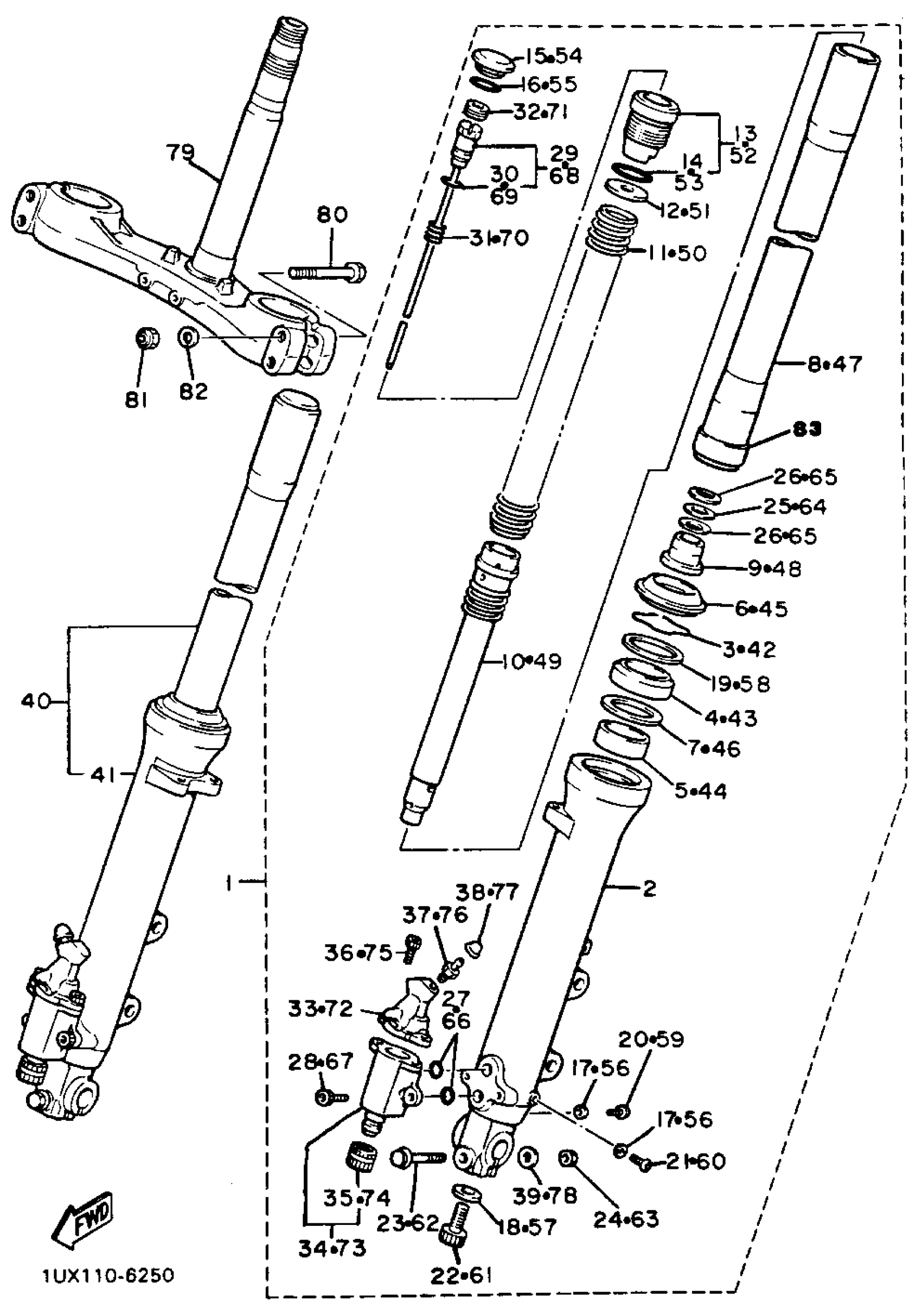

Yamaha FJ1200SC (FJ1200 CA) 1986 FRONT FORK Diagram
#
1
FRONT FORK ASSEMBLY L (LH) (36Y-23102-10)
36Y-23102-11-00
Unavailable
2
. TUBE, OUTER 1
36Y-23126-00-00
Unavailable
6
SEAL, DUST
3XV-23144-50-00
Unavailable
8
. INNER TUBE 1
3CV-23110-00-00
Unavailable
9
. SPINDLE, TAPER
36Y-23173-00-00
Unavailable
10
. CYLINDER, FRTFRKFRONT FORK
36Y-23170-00-00
Unavailable
11
. SPRING, FR FRK HARD
36Y-23141-10-00
Unavailable
12
. WASHER, SPRING UPR
36Y-23149-00-00
Unavailable
13
. CAP
36Y-2319U-00-00
Unavailable
14
.. O-RING
36Y-23147-00-00
Unavailable
16
. GASKET
36Y-23114-00-00
Unavailable
17
GASKET, DRAIN PLUG
122-23129-00-00
Unavailable
18
GASKET
4V4-23158-L0-00
Unavailable
19
. GASKET, UPPER CVR 1UPPER COVER 1
36Y-23137-00-00
Unavailable
20
. BOLT, HEX SCKT HEAD
1TX-23181-00-00
Unavailable
21
SCREW, PAN HEAD(3XP)
98517-04006-00
Unavailable
22
BOLT
4V4-23181-L0-00
Unavailable
23
. BOLT, AXLE HOLDER
36Y-23128-00-00
Unavailable
24
NUT, U
95617-08100-00
Unavailable
25
. WASHER
36Y-2319L-00-00
Unavailable
26
. SPRING, VALVE
36Y-2319M-00-00
Unavailable
27
O-RING
22N-23147-00-00
Unavailable
28
BOLT, SOCKET
91314-06016-00
Unavailable
29
. ROD
36Y-2330G-00-00
Unavailable
30
. O-RING
36Y-23147-10-00
Unavailable
31
. SPRING, SUB
36Y-23152-00-00
Unavailable
32
. NUT
36Y-23357-00-00
Unavailable
33
. BRAKE PLNGR ASSEMBLY 1ASSEMBLY 1
36Y-2319F-00-00
Unavailable
34
. DAMPER PISTON ASSEMBLYASSY
36Y-2319E-00-00
Unavailable
35
.. CAP, AIR VALVE
36Y-23184-00-00
Unavailable
36
BOLT, SOCKET
91314-05012-00
Unavailable
37
. BREATHER, AIR (26H-2319V-00-00)
1TX-2319V-00-00
Unavailable
38
. CAP
26H-2319W-00-00
Unavailable
39
.. WASHER, PLATE
92990-08600-00
Unavailable
40
FRONT FORK ASSEMBLY R (RH) (36Y-23103-10)
36Y-23103-11-00
Unavailable
41
. TUBE, OUTER 2
36Y-23136-00-00
Unavailable
45
SEAL, DUST
3XV-23144-50-00
Unavailable
47
. INNER TUBE 1
3CV-23110-00-00
Unavailable
48
. SPINDLE, TAPER
36Y-23173-00-00
Unavailable
49
. CYLINDER, FRTFRKFRONT FORK
36Y-23170-00-00
Unavailable
50
. SPRING, FR FRK HARD
36Y-23141-10-00
Unavailable
51
. WASHER, SPRING UPR
36Y-23149-00-00
Unavailable
52
. CAP
36Y-2319U-00-00
Unavailable
53
.. O-RING
36Y-23147-00-00
Unavailable
55
. GASKET
36Y-23114-00-00
Unavailable
56
GASKET, DRAIN PLUG
122-23129-00-00
Unavailable
57
GASKET
4V4-23158-L0-00
Unavailable
58
. GASKET, UPPER CVR 1UPPER COVER 1
36Y-23137-00-00
Unavailable
59
. BOLT, HEX SCKT HEAD
1TX-23181-00-00
Unavailable
60
SCREW, PAN HEAD(3XP)
98517-04006-00
Unavailable
61
BOLT
4V4-23181-L0-00
Unavailable
62
. BOLT, AXLE HOLDER
36Y-23128-00-00
Unavailable
63
NUT, U
95617-08100-00
Unavailable
64
. WASHER
36Y-2319L-00-00
Unavailable
64
. SPRING, VALVE
36Y-2319M-00-00
Unavailable
65
. SPRING, VALVE
36Y-2319M-00-00
Unavailable
66
O-RING
22N-23147-00-00
Unavailable
67
BOLT, SOCKET
91314-06016-00
Unavailable
68
. ROD
36Y-2330G-00-00
Unavailable
69
. O-RING
36Y-23147-10-00
Unavailable
70
. SPRING, SUB
36Y-23152-00-00
Unavailable
71
. NUT
36Y-23357-00-00
Unavailable
72
. BRAKE PLUNGER ASSEMBLY2ASSY 2
36Y-2319G-00-00
Unavailable
73
. DAMPER PISTON ASSEMBLYASSY
36Y-2319E-00-00
Unavailable
74
.. CAP, AIR VALVE
36Y-23184-00-00
Unavailable
75
BOLT, SOCKET
91314-05012-00
Unavailable
76
. BREATHER, AIR (26H-2319V-00-00)
1TX-2319V-00-00
Unavailable
77
. CAP
26H-2319W-00-00
Unavailable
78
.. WASHER, PLATE
92990-08600-00
Unavailable
79
UNDER BRACKET
36Y-23340-00-00
Unavailable
80
BOLT
97021-08065-00
Unavailable
81
NUT, U
95617-08100-00
Unavailable
82
.. WASHER, PLATE
92990-08600-00
Unavailable
83
BUSH
36Y-23171-00-00
Unavailable
