Description

Price

1

DISC, BRAKE (RIGHT)

36Y-25831-00-00

Unavailable

2

DISC, BRAKE LH

36Y-25831-10-00

Unavailable

3

BOLT,HEX. SOCKET BUTTON

90111-08084-00

$5.60

4

CALIPER ASSEMBLY

(1FW-25810-00-00)

Unavailable

5

PISTON ASSY, CALIPER

31A-W0057-00-00

$141.99

6

PISTON SEAL KIT

31A-W0047-00-00

$57.99

7

BRAKE PAD KIT 2

1FK-W0046-01-00

$56.99

8

SPRING

26H-25919-00-00

Unavailable

9

PIN, PAD

3HE-25924-00-00

Unavailable

10

CLIP, PAD PIN

3GM-25925-00-00

$11.99

11

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

12

COVER, DUST

41Y-25836-01-00

Unavailable

13

CALIPER ASSEMBLY

(1FW-25810-10-00)

Unavailable

14

PISTON ASSY, CALIPER

31A-W0057-00-00

$141.99

15

PISTON SEAL KIT

31A-W0047-00-00

$57.99

16

BRAKE PAD KIT 2

1FK-W0046-01-00

$56.99

17

SPRING

26H-25919-00-00

Unavailable

18

PIN, PAD

3HE-25924-00-00

Unavailable

19

CLIP, PAD PIN

3GM-25925-00-00

$11.99

20

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

21

COVER, DUST

41Y-25836-01-00

Unavailable

22

BOLT, WASHER BASED(3VD)

90105-10638-00

Unavailable

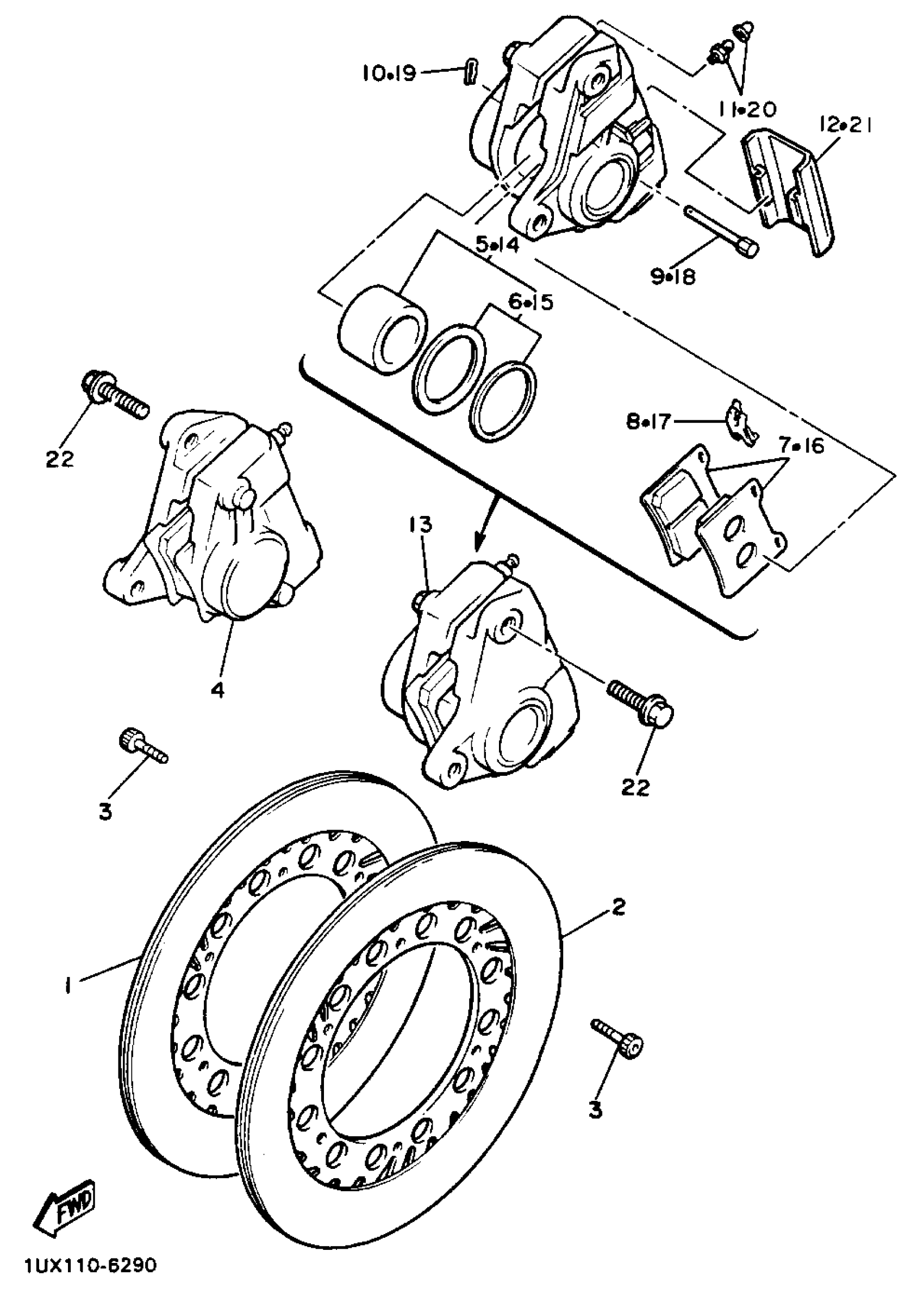

Yamaha FJ1200SC (FJ1200 CA) 1986 FRONT BRAKE CALIPER Diagram

DISC, BRAKE (RIGHT)

DISC, BRAKE LH

BOLT,HEX. SOCKET BUTTON

CALIPER ASSEMBLY

PISTON ASSY, CALIPER

PISTON SEAL KIT

BRAKE PAD KIT 2

SPRING

PIN, PAD

CLIP, PAD PIN

BLEED SCREW KIT

COVER, DUST

CALIPER ASSEMBLY

PISTON ASSY, CALIPER

PISTON SEAL KIT

BRAKE PAD KIT 2

SPRING

PIN, PAD

CLIP, PAD PIN

BLEED SCREW KIT

COVER, DUST

BOLT, WASHER BASED(3VD)
