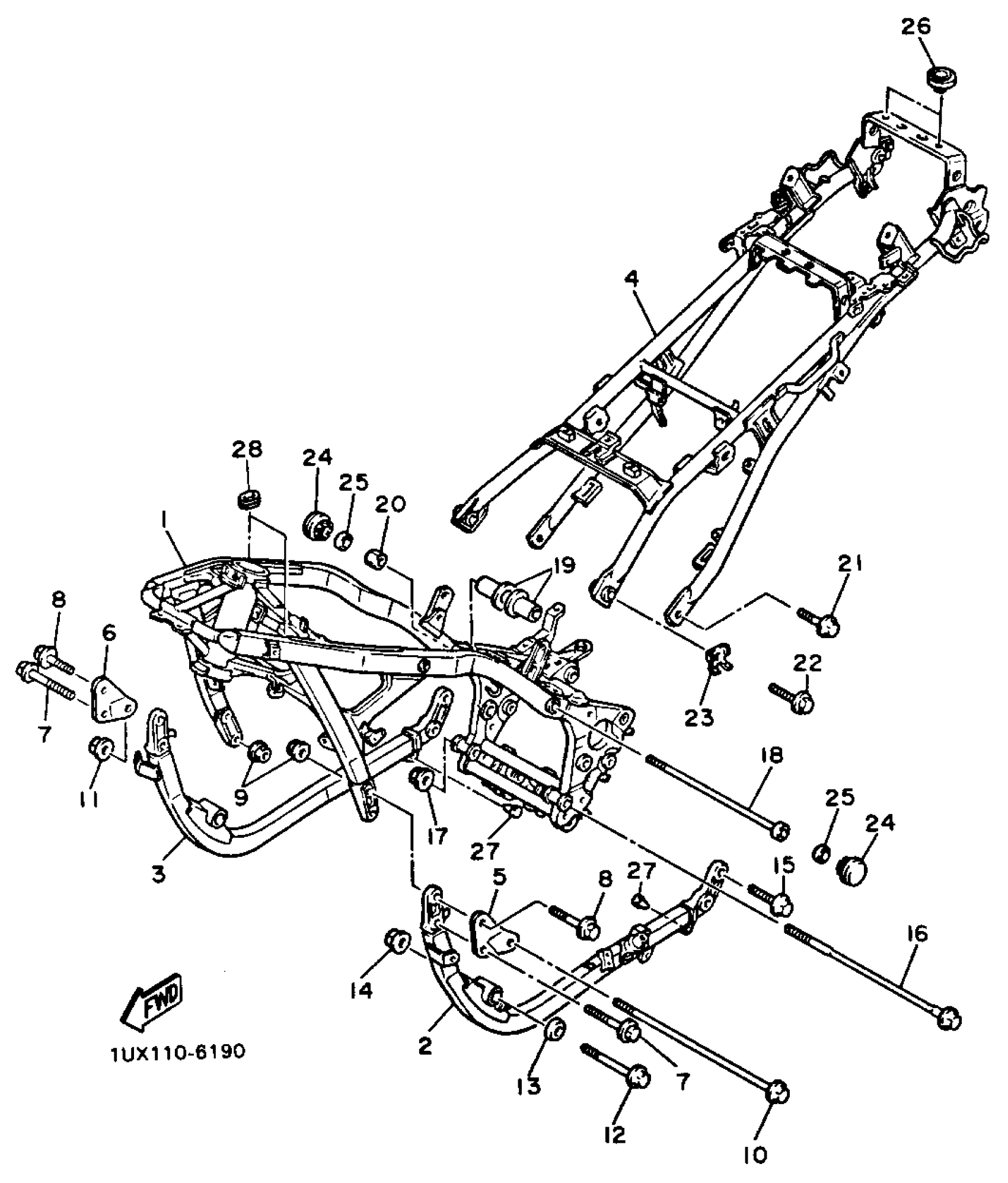

Yamaha FJ1200SC (FJ1200 CA) 1986 FRAME Diagram

#

Description
Price

1

FRAME

1UX-21110-01-35

Unavailable

1

FRAME (1WJ-21110-00-35)

1WJ-21110-01-35

Unavailable

2

TUBE, DOWN

1WJ-21140-00-35

Unavailable

3

DOWN TUBE COMP.2

1WJ-21150-00-35

Unavailable

4

FRAME, REAR

1TX-21190-00-33

Unavailable

5

STAY, ENGINE 2

36Y-21315-00-00

Unavailable

6

STAY, ENGINE 3

36Y-21316-00-00

Unavailable

7

BOLT, WASHER BASED(36Y)

90105-08310-00

$5.60

8

BOLT, FLANGE

95817-08035-00

$9.49

9

NUT(55X)

90179-08491-00

$8.49

10

BOLT, WASHER BASED(36Y)

90105-10313-00

Unavailable

11

NUT(4KG)

90179-10658-00

$9.49

12

BOLT, WASHER BASED(36Y)

90105-10312-00

$5.60

13

WASHER, CONICAL SPR

90208-10039-00

Unavailable

14

NUT(4KG)

90179-10658-00

$9.49

15

BOLT, FLANGE

95817-08035-00

$9.49

16

BOLT, WASHER BASED

90105-12314-00

Unavailable

17

NUT(3EF)

90179-12657-00

Unavailable

18

BOLT, HEX SKT HEAD

90110-10073-00

Unavailable

19

COLLAR

90387-101V2-00

Unavailable

20

NUT

90179-10013-00

Unavailable

21

BOLT, WASHER BASED(3VD)

90105-10638-00

Unavailable

22

BOLT (583)

90101-10303-00

Unavailable

23

WASHER, LOCK

36Y-21491-00-00

Unavailable

24

CAP ASSEMBLY

36Y-21470-00-00

Unavailable

25

DAMPER, RUBBER 1

36Y-21485-00-00

Unavailable

26

PAD, SEAT

1L9-24741-00-00

Unavailable

27

PLUG

90338-07018-00

Unavailable

28

GROMMET

90480-01430-00

Unavailable
