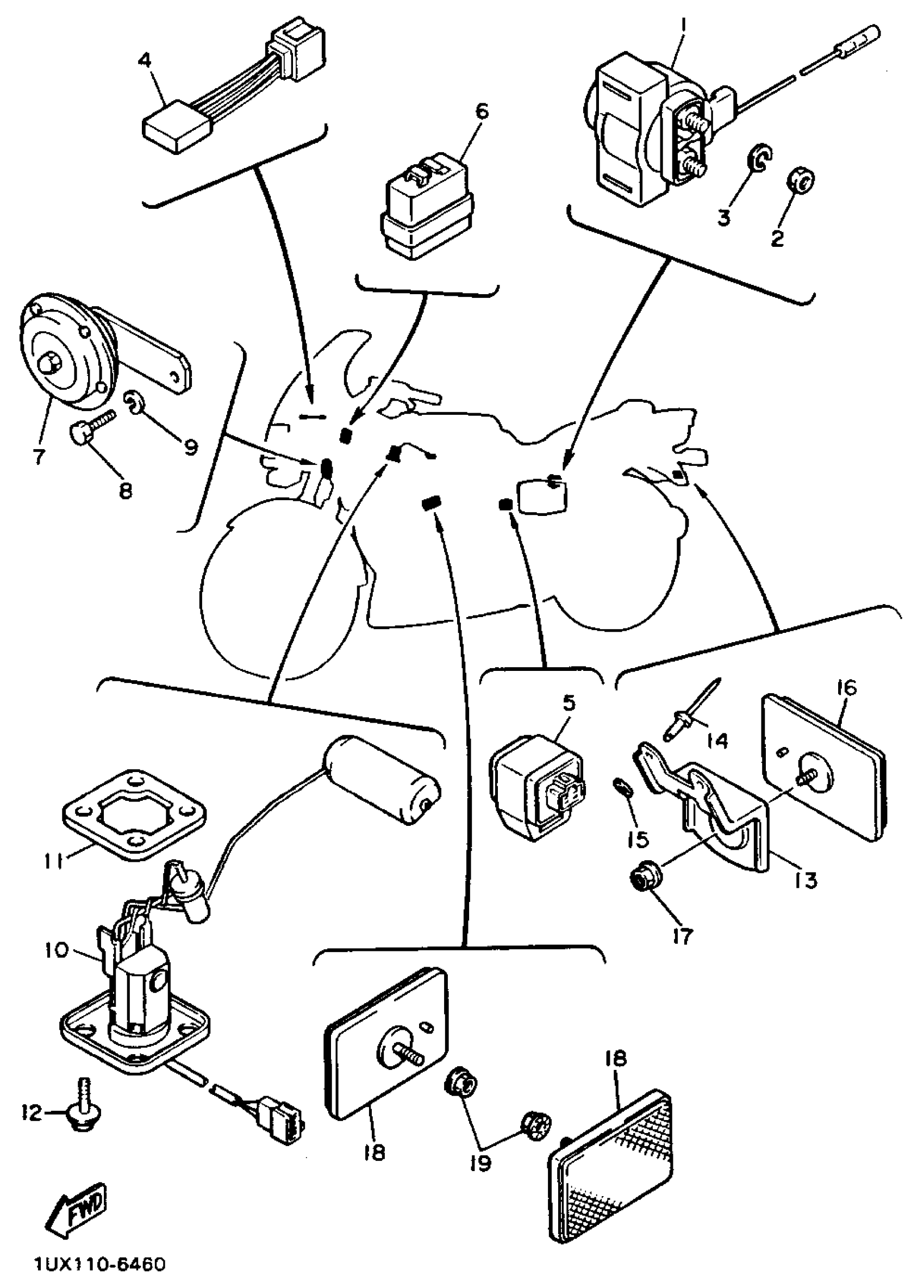

Yamaha FJ1200SC (FJ1200 CA) 1986 ELECTRICAL 1 Diagram

#

Description
Price

1

STARTER RELAY ASSY

36Y-81940-00-00

Unavailable

2

NUT(650)

95380-06700-00

$8.49

3

WASHER, SPRING

92995-06100-00

Unavailable

4

RECTIFIER 2

4U8-81980-M0-00

Unavailable

5

RELAY ASSY

4U8-81950-03-00

Unavailable

6

FLASHER RELAY ASSY

41R-83350-72-00

Unavailable

7

HORN

4V8-83371-20-00

Unavailable

8

BOLT, HEXAGON

97017-08016-00

$8.49

9

WASHER(JN5)

92907-08100-00

$8.49

10

SENDER UNIT ASSEMBLY, FUEL METER

36Y-85752-03-00

Unavailable

11

GASKET, SENDER UNIT

5G3-85753-00-00

$17.49

12

BOLT, WITH WASHER

90119-05071-00

$8.49

13

BRACKET, REFLECTOR 1

47M-85132-00-00

Unavailable

14

RIVET (813)

90267-32070-00

$3.50

15

WASHER,PLAIN

92990-03200-00

$0.33

16

REAR REFLECTOR ASSY

4KM-85130-00-00

Unavailable

17

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

18

FRONT REFLECTOR ASSEMBLY

4X7-85110-00-00

Unavailable

19

NUT, FLANGE(3GM)

95707-05500-00

Unavailable
