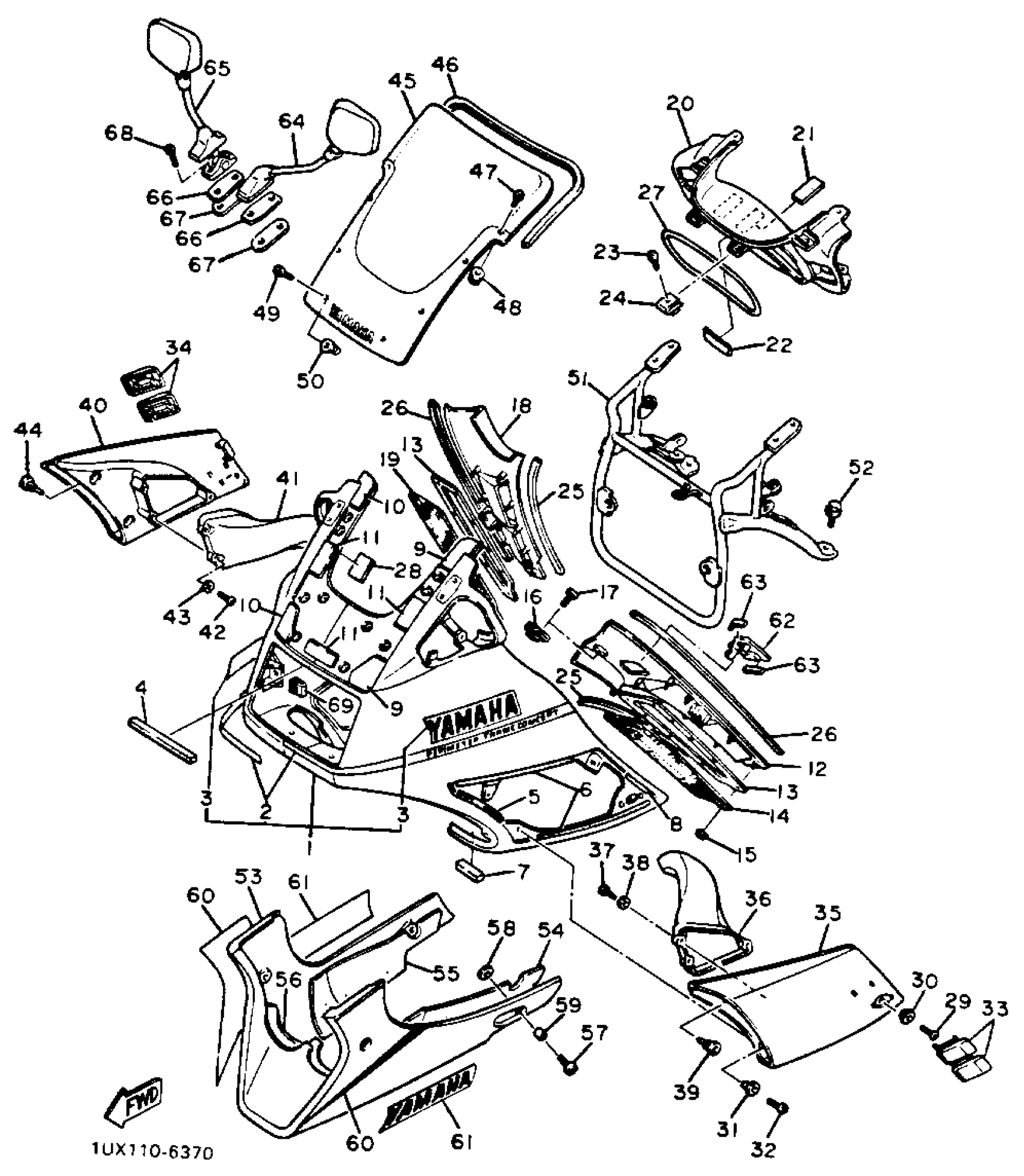

Yamaha FJ1200SC (FJ1200 CA) 1986 COWLING 1 Diagram
#
1
COWLING
1WJ-Y2835-00-3X
Unavailable
2
. GRPHC SET, COWLINGCOWLING
1WJ-28390-00-00
Unavailable
3
EMBLEM, YAMAHA
99223-00180-00
Unavailable
4
DAMPER 1
88T-77198-00-00
Unavailable
5
DAMPER 6
1TX-2837K-00-00
Unavailable
6
PAD
1TX-28378-00-00
Unavailable
8
DAMPER 3
1TX-28425-00-00
Unavailable
9
DAMPER 1 (1TX-28415-00)
1TX-28415-01-00
Unavailable
10
DAMPER 2 (1TX-28416-00)
1TX-28416-01-00
Unavailable
11
DAMPER 3
1TX-28237-00-00
Unavailable
12
GRILL, AIR OUTLET 1
1TX-2837V-00-00
Unavailable
13
DAMPER
1TX-28372-00-00
Unavailable
14
PLATE 1
1TX-28396-00-00
Unavailable
16
NUT, SPRING
90183-051A0-00
Unavailable
17
SCREW, BINDING (10V)
90154-05013-00
Unavailable
18
GRILL, AIR OUTLET 2
1TX-2837W-00-00
Unavailable
19
PLATE 2
1TX-28397-00-00
Unavailable
20
PANEL, INNER 5
1TX-2836R-00-00
Unavailable
21
DAMPER (RH)
1TX-2834F-00-00
Unavailable
22
DAMPER 5
1TX-2837J-00-00
Unavailable
23
SCREW, BINDING (10V)
90154-05013-00
Unavailable
24
NUT, SPRING
90183-051A0-00
Unavailable
25
MOLD 2
36Y-28346-00-00
Unavailable
26
MOLD 2
1TX-28346-00-00
Unavailable
27
MOLE 4
36Y-28348-00-00
Unavailable
28
DAMPER
1TX-28371-00-00
Unavailable
29
SCREW PAN HEAD
98580-06020-00
Unavailable
30
COLLAR (3L6)
90387-06737-00
Unavailable
31
COLLAR (3L6)
90387-06737-00
Unavailable
32
SCREW, BINDING
98907-06016-00
Unavailable
33
PROTECTOR 1
1TX-2832M-00-00
Unavailable
34
PROTECTOR 2
1TX-2832N-00-00
Unavailable
35
GRILL, AIR INTAKE 1
1TX-2837N-00-GE
Unavailable
36
DUCT 1
36Y-2838N-00-00
Unavailable
37
SCREW, OVAL HEAD TAPPING
97780-40112-00
Unavailable
38
YBS66-4 WASHER, PLAIN
92990-04200-00
Unavailable
39
RIVET (36Y)
36Y-28387-00-00
Unavailable
40
GRILL, AIR INTAKE 2
1TX-2837R-00-GE
Unavailable
41
DUCT 2
36Y-2838R-00-00
Unavailable
42
SCREW, OVAL HEAD TAPPING
97780-40112-00
Unavailable
43
YBS66-4 WASHER, PLAIN
92990-04200-00
Unavailable
44
RIVET (36Y)
36Y-28387-00-00
Unavailable
45
WINDSHIELD
1WJ-28381-00-00
Unavailable
46
MOLE 4
36Y-28348-00-00
Unavailable
47
SCREW, ROUND HEAD(1UX)
90150-05023-00
Unavailable
48
NUT, FLANGE(3GM)
95707-05500-00
Unavailable
49
SCREW, ROUND HEAD(1UX)
90150-05024-00
Unavailable
50
NUT(1UX)
90179-05525-00
Unavailable
51
STAY 2
1TX-28359-00-00
Unavailable
52
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
53
COVER, LOWER
1TX-28385-00-GE
Unavailable
54
SEAT 2
1TX-2848K-01-00
Unavailable
55
SEAT 3
1TX-2848L-01-00
Unavailable
56
SEAT 4
1TX-2848M-00-00
Unavailable
57
BOLT, HEXAGON SOCKET HEAD(3HE)
90110-06200-00
Unavailable
58
WASHER, PLATE(31K)
90202-11161-00
Unavailable
59
COLLAR (90387-066J9)
90387-064W1-00
Unavailable
60
GRAHIC SET, LWR CVRLOWER COVER
1TX-28301-00-00
Unavailable
61
EMBLEM (SILKY WHITE)
1WJ-28315-00-00
Unavailable
62
COVER
1TX-28365-00-00
Unavailable
63
DAMPER 2
1TX-28227-00-00
Unavailable
64
REAR VIEW MIRROR ASSY(LEFT)
1TX-26280-00-00
Unavailable
65
MIRROR ASSEMBLYASSY (RIGHT)
1TX-26290-00-00
Unavailable
66
PLATE, MIRROR FITNG
1TX-26298-00-00
Unavailable
67
PLATE, MIRROR FITTING 2
3CV-26299-00-00
Unavailable
68
SCREW, FLAT
98707-06025-00
Unavailable
69
NUT
36Y-28363-00-00
Unavailable
