CARBURETOR

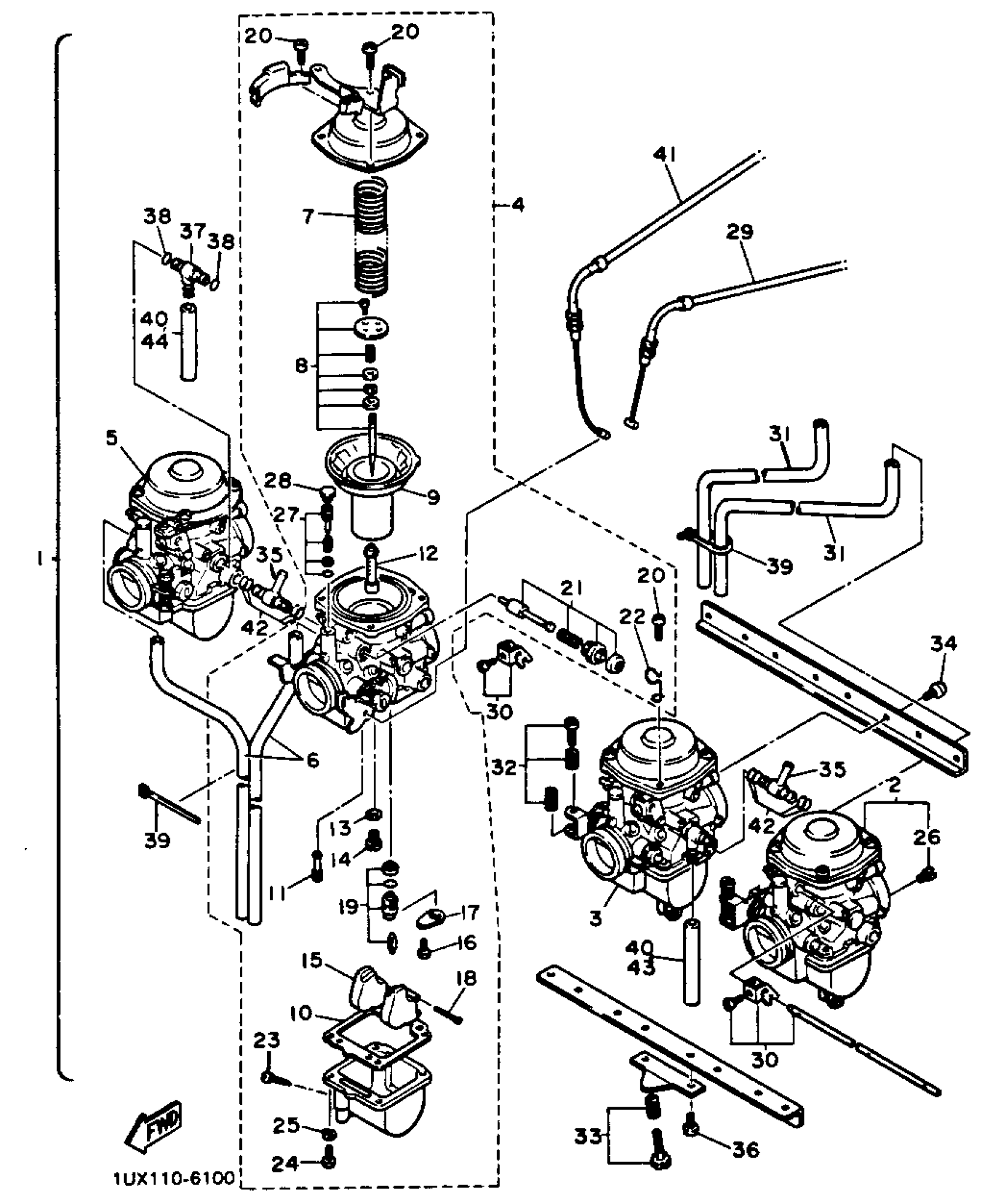

Yamaha FJ1200SC (FJ1200 CA) 1986 CARBURETOR Diagram
#
1
UNAVAILABLE IN PRICE BOOK
[1U-X1490-00-0]
Unavailable
1
UNAVAILABLE IN PRICE BOOK
[1W-J1490-00-0]
Unavailable
2
. UNAVAILABLE IN PRICE BOOKASSEMBLY 1
[1W-J1490-10-00
Unavailable
2
. CARBURETOR ASSEMBLY 1ASSEMBLY 1
1WJ-14901-00-00
Unavailable
3
UNAVAILABLE IN PRICE BOOKASSEMBLY 2
[1U-X1490-20-00
Unavailable
3
. UNAVAILABLE IN PRICE BOOKASSEMBLY 2
[1W-J1490-20-00
Unavailable
4
. CARBURETOR ASSEMBLY 3ASSEMBLY 3
1UX-14903-00-00
Unavailable
4
CARBURETOR ASSEMBLY 3
(1WJ-14903-00-00)
Unavailable
5
CARBURETOR ASSEMBLY 4
(1UX-14904-00-00)
Unavailable
5
. UNAVAILABLE IN PRICE BOOKASSEMBLY 4
[1W-J1490-40-00
Unavailable
6
.. UNAVAILABLE IN PRICE BOOK
[31-A1419-70-00
Unavailable
7
SPRING, DIAPHRAGM
3Y6-14933-00-00
Unavailable
8
. NEEDLE SET
1TX-1490J-00-00
Unavailable
9
DIAPHRAGM ASSY
50H-14940-00-00
Unavailable
11
JET, PILOT (# 37.5)
4G0-14142-37-A0
Unavailable
12
NOZZLE, MAIN
50H-14941-92-00
Unavailable
13
WASHER,MAIN JET
137-14153-00-00
Unavailable
14
JET,MAIN #112.5
620-1423A-73-00
Unavailable
15
FLOAT
3H5-14985-00-00
Unavailable
16
SCREW, PAN HEAD(3XP)
98517-04006-00
Unavailable
17
. PLATE
2H0-14146-00-00
Unavailable
18
PIN, FLOAT
537-14186-00-00
Unavailable
19
NEEDLE VALVE SET
25G-14107-23-00
Unavailable
20
SCREW, PAN HEAD(62X)
97885-05010-00
Unavailable
21
. STARTER SET
36Y-1410A-00-00
Unavailable
22
.. CLIP
25J-14937-00-00
Unavailable
23
PLUG, DRAIN
12R-14191-00-00
Unavailable
24
SCREW, PAN HEAD(6B0)
97885-05016-00
Unavailable
25
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
26
JET, MAIN (#155)
3G2-14231-31-00
Unavailable
27
PILOT SCREW SET
12R-14105-00-00
Unavailable
28
CAP
3F9-14118-00-00
Unavailable
29
CABLE, THROTTLE 4
36Y-2631J-00-00
Unavailable
30
STARTER LEVER SET
36Y-1490L-00-00
Unavailable
31
HOSE (L1500)
90445-084J0-00
Unavailable
32
STOP SCREW SET
36Y-1490K-00-00
Unavailable
33
THROTTLE SCREW SET
36Y-14103-00-00
Unavailable
34
SCREW, PAN HEAD(62X)
97885-05010-00
Unavailable
35
. UNAVAILABLE IN PRICE BOOKSTARTER CONNECTING
[36-Y1498-80-0]
Unavailable
36
SCREW, PAN
98507-06014-00
Unavailable
37
NIPPLE
17A-14251-00-00
Unavailable
38
O-RING
36Y-14147-00-00
Unavailable
39
CLIP, PIPE
35H-14139-00-00
Unavailable
40
HOSE
(50H-14987-00-00)
Unavailable
41
CABLE, THROTTLE 3
36Y-26313-00-00
Unavailable
42
O-RING
36Y-14147-00-00
Unavailable
43
PIPE
1WJ-14197-00-00
Unavailable
44
HOSE
1WJ-14987-00-00
Unavailable
