Description

Price

1

DOUBLE SEAT ASY

4CC-24730-00-00

Unavailable

2

. COVER, DOUBLE SEAT

3CV-24731-40-00

Unavailable

3

BRACKET, SEAT

36Y-24728-00-00

Unavailable

4

BRACKET, SEAT

36Y-24738-00-00

Unavailable

5

PAD, SEAT

1T4-24741-00-00

Unavailable

6

PAD, SEAT

1L9-24741-00-00

$8.49

7

NUT, FLANGE(7NB)

95780-06500-00

$1.88

8

SEAT LOCK ASSEMBLY.

36Y-24705-00-00

Unavailable

9

SCREW, PAN HEAD

98580-06016-00

$2.76

10

WASHER, SPRING

92995-06100-00

$2.83

11

SEAT LEVER ASSEMBLY

36Y-24760-00-00

Unavailable

12

SCREW, PAN HEAD

98580-06016-00

$2.76

13

WASHER, SPRING

92995-06100-00

$2.83

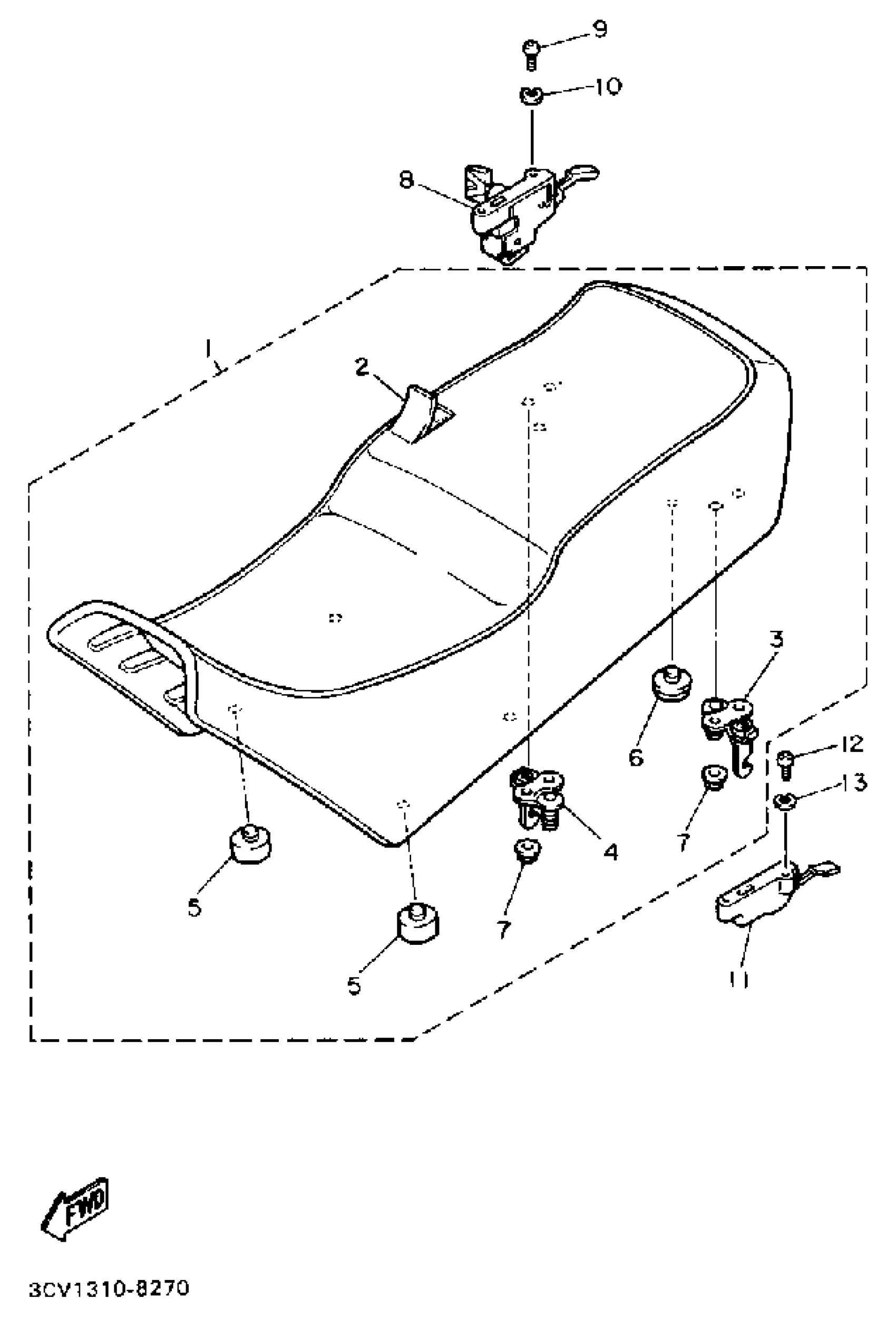

Yamaha FJ1200DC (FJ1200 CA) 1992 SEAT Diagram

DOUBLE SEAT ASY

. COVER, DOUBLE SEAT

BRACKET, SEAT

BRACKET, SEAT

PAD, SEAT

PAD, SEAT

NUT, FLANGE(7NB)

SEAT LOCK ASSEMBLY.

SCREW, PAN HEAD

WASHER, SPRING

SEAT LEVER ASSEMBLY

SCREW, PAN HEAD

WASHER, SPRING
