Description

Price

1

STARTER RELAY ASSY

36Y-81940-00-00

Unavailable

2

NUT, FLANGE(7NB)

95780-06500-00

$2.60

3

RELAY ASSY

2UJ-81950-02-00

$65.99

4

FLASHER RELAY ASSY

3YA-83350-00-00

Unavailable

4

FLASHER RELAY ASSY

3YA-83350-00-00

Unavailable

5

HORN

4V8-83371-20-00

Unavailable

6

BOLT, HEXAGON

97017-08016-00

$8.49

7

WASHER(JN5)

92907-08100-00

$8.49

8

SENDER UNIT ASSEMBLY, FUEL METER

36Y-85752-03-00

Unavailable

9

GASKET, SENDER UNIT

5G3-85753-00-00

$17.49

10

BOLT, WITH WASHER

90119-05071-00

$8.49

11

REAR REFLECTOR ASSY

4KM-85130-00-00

$22.99

12

NUT, FLANGE(3GM)

95707-05500-00

$8.49

13

BRACKET, REFLECTOR 1

47M-85132-00-00

Unavailable

14

RIVET (813)

90267-32070-00

$3.50

15

WASHER,PLAIN

92990-03200-00

Unavailable

16

FRONT REFLECTOR ASSY

11H-85110-01-00

Unavailable

17

NUT, FLANGE(3GM)

95707-05500-00

$8.49

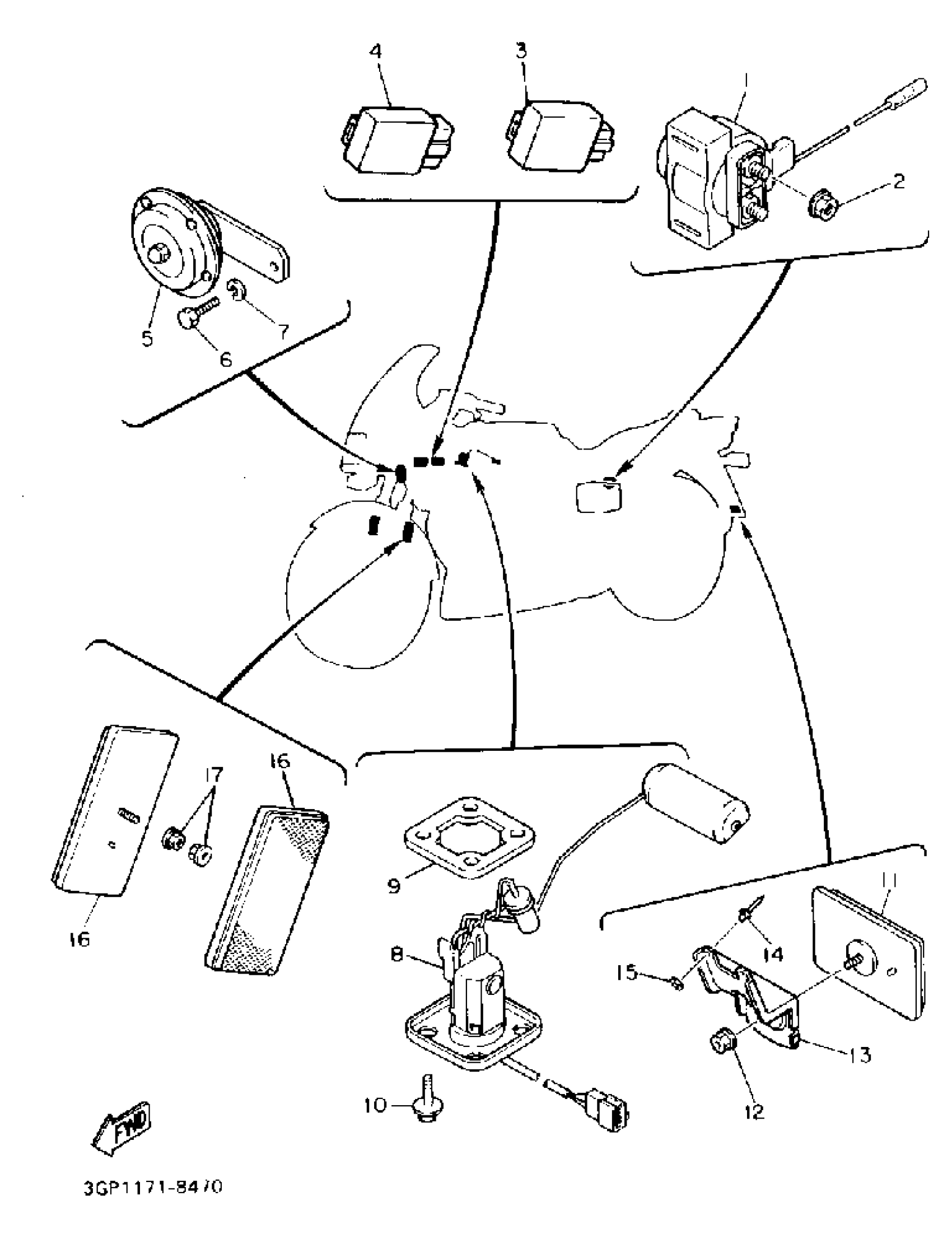

Yamaha FJ1200DC (FJ1200 CA) 1992 ELECTRICAL 1 Diagram

STARTER RELAY ASSY

NUT, FLANGE(7NB)

RELAY ASSY

FLASHER RELAY ASSY

FLASHER RELAY ASSY

HORN

BOLT, HEXAGON

WASHER(JN5)

SENDER UNIT ASSEMBLY, FUEL METER

GASKET, SENDER UNIT

BOLT, WITH WASHER

REAR REFLECTOR ASSY

NUT, FLANGE(3GM)

BRACKET, REFLECTOR 1

RIVET (813)

WASHER,PLAIN

FRONT REFLECTOR ASSY

NUT, FLANGE(3GM)
