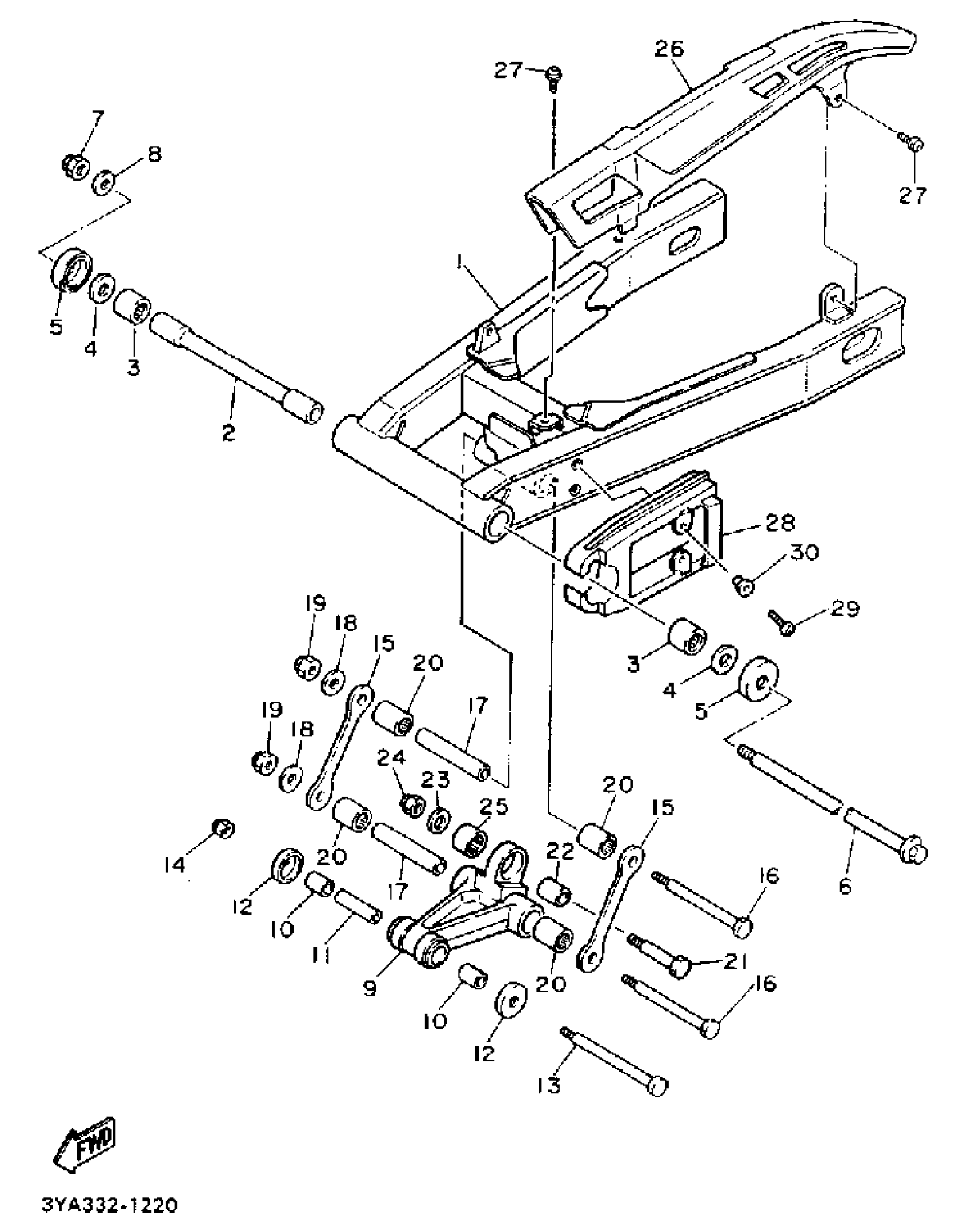

Yamaha FJ1200BC (FJ1200 CA) 1991 SWING ARM Diagram
#
Description
Price
1
REAR ARM
3XW-22110-00-35
Unavailable
2
BUSH
36Y-22184-00-00
Unavailable
3
BEARING, CYLINDRICAL(36Y)
93317-42550-00
Unavailable
4
SHIM
36Y-22127-00-00
Unavailable
5
COVER, THRUST 1
36Y-22128-00-00
Unavailable
6
SHAFT, PIVOT
36Y-22141-00-00
Unavailable
9
ARM, RELAY
3XW-2217A-00-00
Unavailable
11
COLLAR(1FN)
90387-123M4-00
Unavailable
12
COVER, THRUST 2
36Y-22129-00-00
Unavailable
13
BOLT
90101-12605-00
Unavailable
15
ARM 1
3XW-2217M-00-00
Unavailable
16
BOLT(2GH)
90101-12673-00
Unavailable
17
COLLAR(2GH)
90387-126T1-00
Unavailable
18
WASHER, PLATE (4N0)
90201-126A7-00
Unavailable
20
BEARING, CYLINDRICAL(2GH)
93317-41761-00
Unavailable
21
BOLT (4X7)
90101-12498-00
Unavailable
22
COLLAR(3XW)
90387-126W4-00
Unavailable
23
WASHER, PLATE (4N0)
90201-126A7-00
Unavailable
25
BEARING, CYLINDRICAL(2GH)
93317-42060-00
Unavailable
26
CASE, CHAIN
36Y-22311-00-00
Unavailable
27
SCREW, PANHEAD W/WASHER (22F)
90159-06082-00
Unavailable
28
SEAL, GUARD
2KT-22151-00-00
Unavailable
29
SCREW, PANHEAD W/WASHER (22F)
90159-06082-00
Unavailable
30
COLLAR (8G8)
90387-06681-00
Unavailable
